Emerson KJ3002X1-BF1 12P1732X042 Original Industrial Spare DeltaV Compatible: Ensuring System Stability in Critical Process Environments

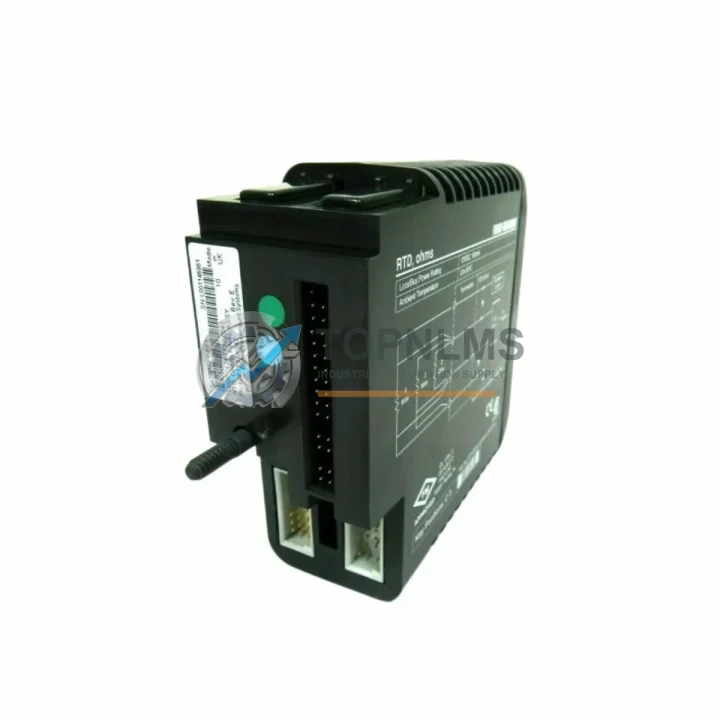

The Emerson KJ3002X1-BF1 12P1732X042 is an 8-channel RTD (Resistance Temperature Detector) input module designed for the Emerson DeltaV distributed control system (DCS) platform. As a genuine original spare part, this module plays a central role in maintaining continuous, accurate temperature measurement across process industries including oil and gas, chemical processing, power generation, pharmaceuticals, and pulp and paper manufacturing. When a temperature input channel fails or degrades, the consequences extend far beyond a single measurement point — they can cascade into process upsets, safety system activations, and unplanned shutdowns. Stocking the KJ3002X1-BF1 12P1732X042 as a verified spare ensures your maintenance team can execute a rapid, like-for-like replacement without waiting weeks for procurement.

This module integrates directly into the DeltaV I/O subsystem, communicating with the DeltaV controller via the standard DeltaV I/O bus. Its 8-channel architecture allows a single card to monitor multiple RTD sensors simultaneously, making it a high-density, cost-effective solution for temperature-intensive processes. The module supports standard 2-wire, 3-wire, and 4-wire RTD configurations, accommodating Pt100, Pt200, Pt500, Pt1000, and Ni120 sensor types across a broad measurement range. Signal conditioning, linearization, and diagnostics are handled onboard, reducing engineering overhead and simplifying commissioning during replacement.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for DeltaV-based control systems goes well beyond replacing individual I/O modules. When scheduling a planned shutdown or responding to an unplanned outage involving the KJ3002X1-BF1 12P1732X042, experienced maintenance engineers treat the event as an opportunity to audit the entire I/O subsystem and associated field wiring infrastructure.

During a control cabinet inspection, it is standard practice to simultaneously verify the condition of the DeltaV I/O carrier (KJ3001X1 series) on which the RTD module is seated. Carrier backplane connectors are subject to oxidation and mechanical wear over years of thermal cycling, and a degraded carrier can cause intermittent channel faults even after a module swap. Alongside the carrier, the DeltaV controller module (MD Plus or MD Controller) should be checked for firmware currency and diagnostic alarms — an RTD input fault logged at the controller level may indicate a controller-side issue rather than a failed I/O card.

Power integrity is equally critical. The DeltaV power supply module (PS2 or PS6 series) feeding the I/O bus should be load-tested and its output voltage verified within specification. A marginal power supply can cause sporadic I/O errors that are misdiagnosed as module failures, leading to unnecessary card replacements. If the system uses redundant power, both the primary and secondary power supply units should be inspected during the same maintenance window.

Field wiring connected to the RTD module terminates at DeltaV marshalling terminal blocks or CHARM I/O terminal assemblies depending on system generation. Terminal screws should be re-torqued to specification, and any signs of corrosion, insulation damage, or moisture ingress at the terminal strip should be addressed before the replacement module is commissioned. For older DeltaV installations, signal isolators or RTD transmitters in the field loop may also warrant inspection — a failing transmitter can produce out-of-range readings that appear as module faults in the DCS historian.

Communication health across the DeltaV network should be validated as part of the same maintenance cycle. The DeltaV EIOC (Electronic Marshalling I/O Controller) or CIOC (Controller I/O Card) managing the I/O subsystem should be checked for network error counters and latency statistics. If the plant uses FOUNDATION Fieldbus or HART communication modules in adjacent slots, their diagnostic data should be reviewed simultaneously, as shared bus congestion can affect RTD module polling rates.

Finally, for facilities managing aging DeltaV S-series or M-series hardware, it is advisable to maintain a minimum buffer stock of KJ3002X1-BF1 12P1732X042 modules alongside complementary analog input modules such as the KJ3221X1-BA1 AI module and KJ3222X1-BA1 thermocouple input module. These modules share the same carrier form factor and are frequently required in the same control cabinets, making consolidated spare parts procurement both logistically efficient and cost-effective.

Strategic Replacement Solutions

The KJ3002X1-BF1 12P1732X042 is a direct, plug-and-play replacement for any DeltaV system currently running an 8-channel RTD input card in the same carrier slot. Because DeltaV uses a software-defined I/O architecture, module replacement does not require re-engineering the control strategy — the replacement card is recognized automatically by the DeltaV system upon insertion, and channel assignments are restored from the controller database without manual reconfiguration.

For plants operating legacy DeltaV S-series hardware approaching end-of-life, sourcing original spare modules like the KJ3002X1-BF1 12P1732X042 is the most cost-effective strategy for extending system lifespan without committing to a full platform migration. A single verified spare can defer a capital expenditure project by 3–5 years while maintaining full process visibility and control loop integrity. This is particularly valuable in industries where DCS migration projects require extensive validation, regulatory approval, or process shutdown windows that cannot be easily scheduled.

Each KJ3002X1-BF1 12P1732X042 unit supplied by TOPNLMS is tested prior to shipment using functional verification procedures that confirm channel-by-channel signal accuracy, bus communication integrity, and onboard diagnostic response. Units are packaged in anti-static enclosures with humidity indicator cards to protect sensitive electronics during international transit. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express shipping options available for emergency maintenance situations.
