Emerson KJ3002X1-BC1 12P0681X092 DeltaV AI Replacement

Product Overview

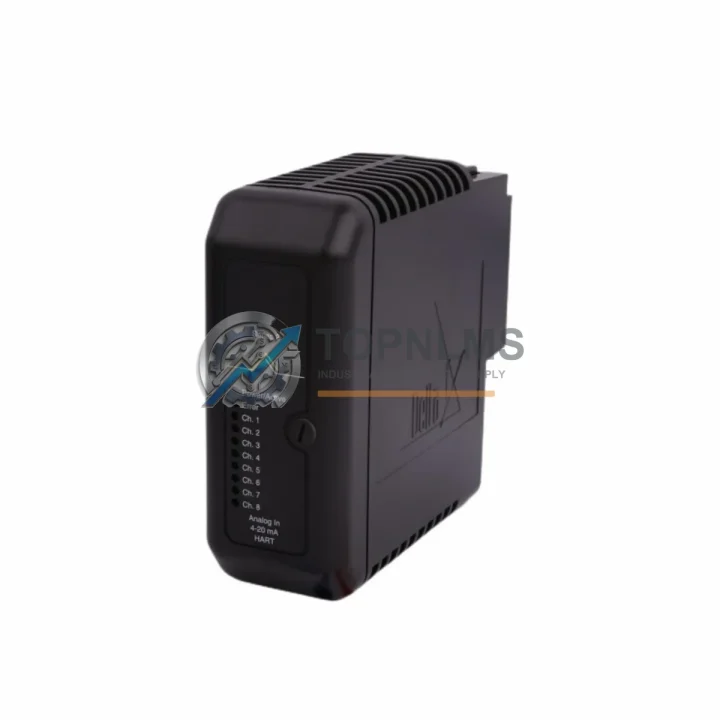

Emerson KJ3002X1-BC1 12P0681X092 DeltaV AI Replacement Module: Seamless Transition from Legacy Analog Input Systems

The Emerson KJ3002X1-BC1 12P0681X092 is a DeltaV Series Analog Input (AI) module designed for high-density, high-accuracy signal acquisition in process automation environments. As Emerson progressively phases out earlier DeltaV hardware generations, facilities running legacy AI modules such as the KJ3002X1-BA1 or KJ3002X1-BB1 face increasing pressure to source certified replacements or execute a structured upgrade path. TOPNLMS maintains verified stock of the KJ3002X1-BC1 12P0681X092 to support both emergency replacement and planned migration projects across petrochemical, power generation, pharmaceutical, and water treatment industries.

This module slots directly into the standard DeltaV S-series controller rack and carrier assembly, accepting 8-channel 4–20 mA or 1–5 V analog input signals with HART pass-through capability. Engineers migrating from older KJ3002 variants will find that field wiring terminations, marshalling cabinet layouts, and existing HART device configurations remain fully compatible, eliminating the need for rewiring or signal recalibration during the cutover window. The module communicates over the DeltaV internal bus using the same protocol stack as its predecessors, meaning no controller firmware changes or DeltaV Explorer reconfiguration are required beyond a module swap and a brief online download.

For sites upgrading from a legacy Emerson RS3 or PROVOX distributed control system to DeltaV, the KJ3002X1-BC1 12P0681X092 is a natural anchor point in the I/O migration strategy. Paired with a KJ2201X1 DeltaV controller card and the appropriate KJ3001X1 carrier, the AI module integrates into a new DeltaV MD or MX controller node without requiring a full panel redesign. Power supply requirements align with the standard 24 VDC DeltaV bus, compatible with the Emerson KJ4001X1 power supply module already deployed in most DeltaV cabinets.

During retrofit projects, the KJ3002X1-BC1 12P0681X092 is frequently installed alongside the KJ3222X1 DeltaV Digital Input module and the KJ3242X1 Digital Output module to complete a mixed I/O node upgrade within a single cabinet. Communication continuity is maintained through the DeltaV CIOC (Charm I/O Controller) or traditional S-series I/O bus, depending on the site architecture. For installations requiring intrinsic safety barriers or signal isolation, the module is compatible with standard DIN-rail mounted signal isolators and Zener barriers already present in most hazardous-area control rooms.

Sites transitioning from third-party DCS platforms — including Honeywell TDC 3000, ABB Advant, or Yokogawa CENTUM — to Emerson DeltaV will find the KJ3002X1-BC1 12P0681X092 a reliable first-phase I/O component. The module’s standard HART capability allows existing smart field instruments to be re-ranged and reconfigured through DeltaV AMS Device Manager without physical replacement, significantly reducing migration labor costs. Existing 4–20 mA loops from legacy marshalling panels can be re-terminated directly to the KJ3001X1 carrier terminal blocks, preserving cable runs and junction box infrastructure.

For facilities managing a phased DeltaV upgrade — where some control loops remain on the legacy system while others migrate — the KJ3002X1-BC1 12P0681X092 supports parallel operation within a hybrid architecture. The module can be commissioned in a new DeltaV node while the legacy system remains online, allowing loop-by-loop cutover with minimal process interruption. This approach is particularly effective in continuous process industries where full shutdowns are costly and infrequent.

TOPNLMS supplies the KJ3002X1-BC1 12P0681X092 with full functional testing completed prior to shipment. Each unit undergoes channel-by-channel signal verification, HART communication validation, and bus interface testing. Units are shipped in anti-static packaging with inspection documentation. Standard lead time from our Xiamen warehouse is 3–7 business days for international orders, with expedited options available for urgent plant shutdowns or unplanned failures.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete DeltaV I/O node migration typically involves more than a single module swap. When replacing or upgrading the KJ3002X1-BC1 12P0681X092 within an existing control cabinet, engineers commonly address the surrounding infrastructure in the same maintenance window. The KJ3001X1 carrier module provides the physical mounting and terminal block interface for the AI module and should be inspected or replaced if corrosion or terminal wear is present. The KJ2201X1 DeltaV controller card governs the I/O bus and must be running a firmware version compatible with the BC1 revision of the AI module — a quick check in DeltaV Explorer confirms compatibility before the swap.

Power integrity is critical during module replacement. The KJ4001X1 DeltaV power supply module should be verified for output stability before commissioning the new AI module, as voltage sag during startup can cause initialization errors. For cabinets with high I/O density, a KJ4002X1 redundant power supply module is recommended to eliminate single-point power failure risk during the transition period.

Digital I/O expansion is frequently addressed in the same project scope. The KJ3222X1 DeltaV Digital Input module and KJ3242X1 Digital Output module share the same carrier and bus architecture as the KJ3002X1-BC1, allowing mixed AI/DI/DO nodes to be built out within a single rack without additional bus hardware. For sites adding FOUNDATION Fieldbus or PROFIBUS segments as part of the DeltaV upgrade, the KJ3001X1 carrier supports co-installation with the appropriate fieldbus interface card.

Where HART-enabled field instruments are being re-commissioned through DeltaV AMS, the existing 4–20 mA signal cables can be re-used without modification. Signal isolators — particularly DIN-rail mounted units from Phoenix Contact or Pepperl+Fuchs already installed in the marshalling cabinet — remain in service and do not require reconfiguration. This preserves the existing hazardous-area certification of the loop without requiring new Ex documentation.

Retrofit Guidance FAQ

Q: Can I replace the KJ3002X1-BA1 or KJ3002X1-BB1 with the KJ3002X1-BC1 12P0681X092 without rewiring?
A: Yes. The BC1 revision uses the same KJ3001X1 carrier and identical terminal block pinout as earlier BA1 and BB1 revisions. Field wiring can be re-terminated directly with no changes to cable routing or marshalling panel layouts.

Q: Does the KJ3002X1-BC1 require a DeltaV software upgrade?
A: The module is supported from DeltaV v7 onward. If your site is running DeltaV v11 or later, no software changes are required. For sites on v7–v10, verify the module descriptor file (MDD) is present in your DeltaV library — TOPNLMS can provide the MDD file upon request.

Q: Will existing HART device configurations be preserved after the module swap?
A: Yes. HART device parameters are stored in DeltaV AMS and in the field instruments themselves, not in the AI module. After the swap, AMS will re-establish communication with each HART device automatically during the next scan cycle.

Q: What is the physical installation space requirement?
A: The KJ3002X1-BC1 12P0681X092 is identical in form factor to all previous KJ3002 revisions. No additional panel space, DIN rail modification, or carrier replacement is required for a like-for-like swap.

Q: Can this module be used in a SIL-rated safety loop?
A: The KJ3002X1-BC1 is a standard DeltaV AI module and is not SIL-certified for use in IEC 61511 safety instrumented functions. For SIL-rated loops, the Emerson DeltaV SIS platform with dedicated safety I/O modules is required.

Q: How long does commissioning take after installation?
A: For a direct replacement in an existing DeltaV node, commissioning typically takes 15–30 minutes per module, including online download, channel verification, and HART device re-scan. No controller restart is required in most DeltaV versions.

Warranty Assurance

Every Emerson KJ3002X1-BC1 12P0681X092 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment inspection protocol: all 8 analog input channels are verified for signal accuracy across the full 4–20 mA range, HART communication is validated at the module bus interface, and the DeltaV I/O bus connector is inspected for pin integrity and seating force.

Units that fail any stage of pre-shipment testing are quarantined and not dispatched. Passed units are packed in anti-static foam inserts within double-wall cartons, with humidity indicator cards included for long-distance shipments. A test report is available upon request for quality-critical procurement processes.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of fault confirmation, with no requirement to return the defective unit before the replacement is shipped for emergency plant situations. Our technical support team is available via email and phone to assist with installation verification, DeltaV compatibility questions, and post-installation commissioning guidance.

For procurement teams requiring documentation, TOPNLMS can provide a Certificate of Conformance, packing list, and commercial invoice in English and Chinese. Export compliance documentation for CN-origin shipments is prepared in accordance with applicable customs regulations for the destination country.
