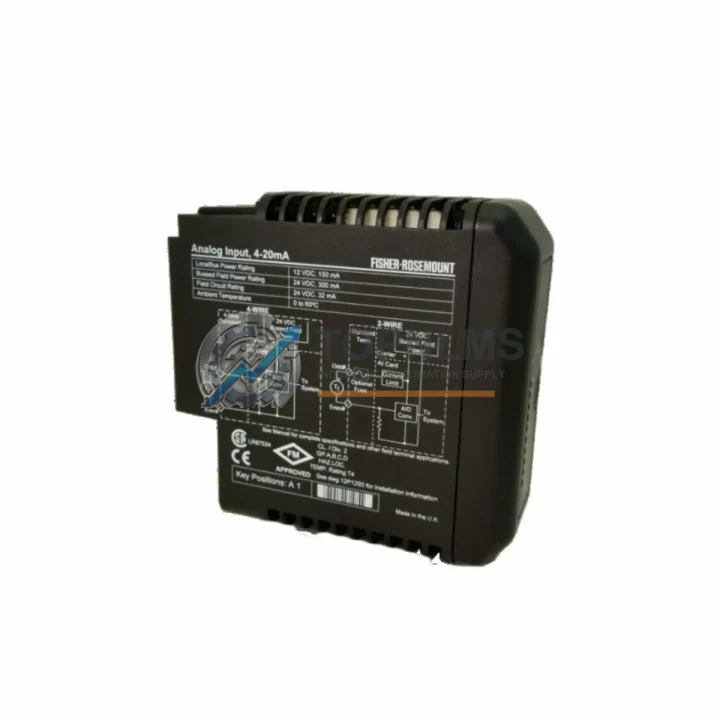

Emerson KJ3002X1-BC1 12P0681X072 Ruggedized Analog Input Module

Product Overview

Emerson KJ3002X1-BC1 12P0681X072 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Emerson KJ3002X1-BC1 12P0681X072 is an 8-channel analog input module engineered for the DeltaV distributed control system (DCS) platform — one of the most widely deployed process automation architectures in critical industries worldwide. Designed to operate reliably under extreme thermal cycling, high-humidity atmospheres, persistent mechanical vibration, airborne particulate contamination, and intense electromagnetic interference, this module delivers the signal integrity and uptime that modern industrial facilities demand.

In continuous production environments — from petrochemical refineries and offshore gas platforms to mineral processing plants and municipal water treatment facilities — analog input accuracy is not a convenience; it is a safety imperative. The KJ3002X1-BC1 12P0681X072 accepts 4–20 mA and HART-compatible field signals, converting them with high-resolution precision and transmitting conditioned data to the DeltaV controller backplane without signal degradation, even when co-located with high-power variable frequency drives (VFDs), motor control centers, or large transformer banks that generate significant electromagnetic noise.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ3002X1-BC1 12P0681X072 does not operate in isolation — it is one node in a tightly integrated DeltaV control architecture. For maximum system resilience, it is typically deployed alongside the Emerson KJ2201X1-BA1 DeltaV Digital Input Module, which handles discrete field signals from limit switches, pressure switches, and safety interlocks. On the output side, the Emerson KJ3222X1-BA1 Analog Output Module closes the control loop by driving control valves and positioners based on the processed analog data.

Controller redundancy is maintained through the Emerson KJ1001X1-BF1 DeltaV MD Controller and its redundant partner, ensuring that a single controller fault does not interrupt process control. The I/O subsystem is powered by the Emerson KJ4001X1-BA1 DeltaV Power Supply Module, which provides regulated, noise-filtered DC power to the entire I/O bus — a critical factor in maintaining analog signal accuracy in electrically noisy environments.

For facilities operating HART field devices, the Emerson AMS Device Manager communicates over the HART pass-through capability of the KJ3002X1-BC1 to perform remote diagnostics, calibration verification, and predictive maintenance without interrupting live process signals. In SIL-rated safety loops, this module is often paired with the Emerson DeltaV SIS Logic Solver and SIS Power Distribution Module to form a complete safety instrumented system (SIS) compliant with IEC 61511.

Communication integrity across the DeltaV network is sustained by the Emerson KJ4009X1-BA1 DeltaV Ethernet I/O Interface and redundant DeltaV Workstation Network Switches, which maintain deterministic data exchange between field I/O and operator workstations. In control cabinets where space and thermal management are critical, the KJ3002X1-BC1 12P0681X072 is mounted on standard DeltaV carrier assemblies alongside terminal blocks and marshalling panels, minimizing wiring complexity and simplifying future module replacement.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the KJ3002X1-BC1 12P0681X072 monitors pressure transmitters, flow meters, and temperature sensors across wellhead control panels, compressor stations, and pipeline SCADA nodes. Its galvanic channel isolation prevents ground loops that are endemic in long-cable field installations, and its HART pass-through enables operators to interrogate smart transmitters from the control room without dispatching field technicians into potentially hazardous classified areas.

In coal-fired and gas-fired power generation, this module tracks boiler drum level, feedwater flow, and flue gas oxygen concentration — measurements that directly govern combustion efficiency and emissions compliance. The module’s 16-bit resolution ensures that small process deviations are detected early, enabling corrective action before they escalate into trips or equipment damage.

In mining and mineral processing, where vibration from crushers, conveyors, and ball mills is constant, the module’s IEC 60068-2-6 vibration compliance ensures that analog readings remain stable and accurate. Dust-laden atmospheres common in cement plants and potash mines are managed through proper IP20-rated cabinet enclosures, within which the KJ3002X1-BC1 operates without derating.

In water and wastewater treatment, the module interfaces with pH sensors, dissolved oxygen probes, turbidity meters, and chlorine analyzers — all 4–20 mA HART devices — providing plant operators with real-time water quality data essential for regulatory compliance and public health protection. Its low power consumption (≤ 3.5 W) contributes to the energy efficiency goals of modern utility operators.

In metallurgical and steel production environments, where ambient temperatures near furnaces and casting lines can approach the upper limits of industrial electronics, the module’s 0–60°C operating range and robust thermal design ensure continuous operation without forced cooling interventions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
All KJ3002X1-BC1 12P0681X072 units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In the event of a verified fault, we provide full module replacement or depot repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a fault description. Replacement units are typically dispatched within 3–5 business days of claim approval.

Q2: How is each module tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical integrity, power-on functional verification, channel-by-channel analog signal accuracy test (4 mA, 12 mA, and 20 mA reference points), and HART communication handshake confirmation where applicable. Units that do not meet Emerson’s original factory acceptance criteria are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is the KJ3002X1-BC1 12P0681X072 compatible with all DeltaV system versions?
This module is compatible with DeltaV MD, MD Plus, MQ, SD, and SD Plus controller families running DeltaV software versions 10.3 through 14.x. It is backward-compatible with legacy S-Series carrier assemblies and forward-compatible with current M-Series I/O subsystems. If your DeltaV system version falls outside this range, our technical team will verify compatibility before order confirmation at no charge.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains a dedicated inventory of DeltaV I/O modules, including the KJ3002X1-BC1 12P0681X072, to support planned maintenance shutdowns, emergency replacements, and multi-year spare parts agreements. We work with facilities that operate on 2–5 year maintenance cycles and can reserve stock under a blanket purchase order arrangement. Contact our team to discuss volume pricing, reserved inventory, and priority dispatch agreements tailored to your plant’s operational schedule.
