Emerson KJ3002X1-BB1 12P0683X092 Original Industrial Spare DeltaV Compatible

Product Overview

Emerson KJ3002X1-BB1 12P0683X092 Original Industrial Spare DeltaV Compatible: System Stability and Industrial Spare Parts Maintenance Value

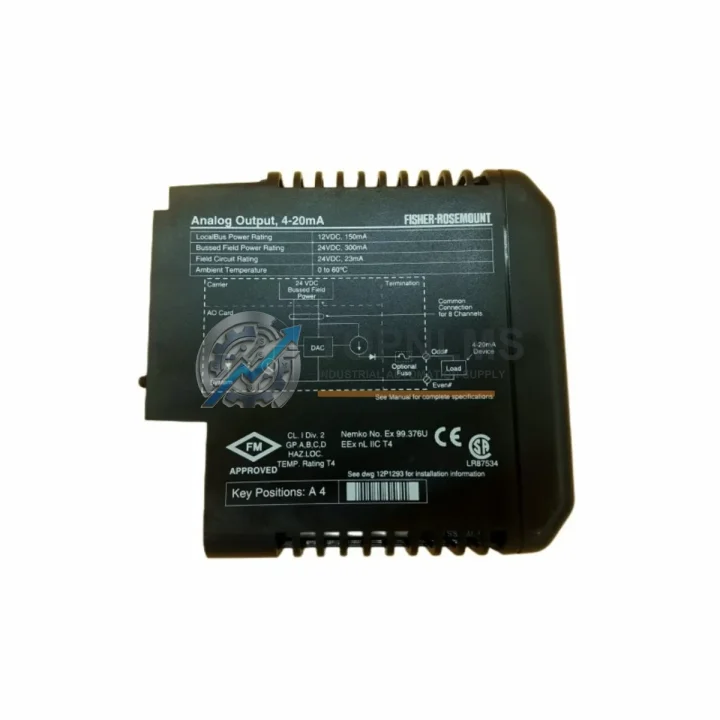

The Emerson KJ3002X1-BB1 (part number 12P0683X092) is an original 8-channel 4-20mA analog output module designed for the Emerson DeltaV distributed control system (DCS). In process manufacturing environments — including oil and gas, chemical processing, power generation, and pharmaceutical production — analog output modules are among the most operationally critical components in any control cabinet. A single failed AO card can interrupt valve positioner signals, disrupt flow control loops, and trigger unplanned shutdowns that cost thousands of dollars per hour in lost production.

Sourcing a verified original KJ3002X1-BB1 12P0683X092 as a pre-qualified spare is one of the most cost-effective decisions a maintenance team can make. With this module on the shelf, your engineering team can execute a hot-swap replacement in under 30 minutes, restoring full loop control without waiting days for emergency procurement. TOPNLMS stocks this module as a tested, ready-to-ship spare with a 12-month warranty, ensuring your DeltaV system remains operational through planned turnarounds and unplanned fault events alike.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a DeltaV cabinet inspection or a planned turnaround, the KJ3002X1-BB1 analog output card should never be evaluated in isolation. The 4-20mA output loops it drives are part of a broader signal chain, and degradation anywhere along that chain — from the module itself to the field wiring — can produce the same symptom: a drifting or lost control signal. A thorough preventive maintenance review should encompass the entire loop.

Start at the I/O carrier level. The KJ3002X1-BA1 carrier board that seats the KJ3002X1-BB1 module is a common wear item; inspect its backplane connectors for oxidation or mechanical damage. Adjacent to the AO card, your DeltaV cabinet likely houses KJ3221X1-BA1 8-channel analog input (AI) modules that read process feedback — these should be cross-checked during the same inspection cycle to confirm loop integrity. If your process uses HART-enabled field devices, verify that the KJ3002X1-BB1‘s HART pass-through is functioning correctly alongside your HART multiplexer or DeltaV HART interface module.

Power quality is a frequent root cause of intermittent AO faults. Inspect the KJ1501X1-BA2 DeltaV power supply module and its redundant pair for output voltage stability; a sagging 24VDC rail will cause loop current errors that mimic a failed output card. While the cabinet is open, check the terminal block assemblies and field wiring marshalling panels — loose terminations on the field side account for a significant proportion of 4-20mA signal faults that are incorrectly attributed to the I/O module.

For plants running legacy DeltaV S-series hardware, it is also prudent to inspect the KJ2201X1-BA1 DeltaV controller module and its associated redundancy module (KJ2201X1-BB1) during the same maintenance window. Controller firmware mismatches after a partial upgrade can cause AO modules to report configuration errors even when the hardware is fully functional. Simultaneously, review the DeltaV workstation I/O interface cards and ensure the DeltaV Operate HMI is communicating correctly with all I/O subsystems.

Finally, for cabinets in high-vibration or high-humidity environments, inspect the conformal coating integrity on the KJ3002X1-BB1 PCB and consider stocking a KJ3002X1-BB1 12P0683X092 cold spare alongside complementary modules such as the KJ3221X1-BA1 AI module, KJ3001X1-BB1 analog input card, and KJ4001X1-BA1 digital output module to cover the full range of I/O types in a single cabinet. A well-stocked spare parts kit reduces mean time to repair (MTTR) from days to minutes.

Strategic Replacement Solutions

The KJ3002X1-BB1 12P0683X092 is a direct replacement for earlier DeltaV analog output module revisions used in legacy DeltaV S-series and M-series installations. Plants that have been running DeltaV systems since the early 2000s frequently encounter end-of-life (EOL) notices from Emerson for first-generation I/O hardware. Rather than undertaking a full I/O migration — which can require weeks of engineering, loop testing, and commissioning — sourcing original KJ3002X1-BB1 modules allows maintenance teams to extend the operational life of existing DeltaV cabinets by 5–10 years at a fraction of the cost of a system upgrade.

The module is plug-compatible with existing DeltaV I/O carriers and requires no hardware reconfiguration when replacing a like-for-like unit. Configuration is retained in the DeltaV controller and downloads automatically upon module insertion, minimizing the skill level required for field replacement. This makes the KJ3002X1-BB1 an ideal candidate for a critical spare classification in your plant’s spare parts management system (SPMS), with a recommended minimum stock level of one unit per DeltaV cabinet containing analog output loops.

For plants managing multiple DeltaV systems across different sites, TOPNLMS can support bulk procurement of KJ3002X1-BB1 modules with consistent part number verification, pre-shipment functional testing, and documentation packages suitable for IEC 62443 and ISO 55001 asset management compliance.

Support FAQ

Q1: Is the KJ3002X1-BB1 12P0683X092 compatible with all DeltaV controller versions?
The KJ3002X1-BB1 is compatible with DeltaV MD, MD Plus, SD, SD Plus, and MQ series controllers running DeltaV v10.3 and later. For systems running earlier firmware versions, compatibility should be verified against the Emerson DeltaV I/O compatibility matrix. Contact our technical team with your DeltaV version and controller type for confirmation before ordering.

Q2: What pre-shipment testing is performed on this module?
Every KJ3002X1-BB1 unit shipped by TOPNLMS undergoes functional power-on testing and channel output verification across all 8 channels prior to dispatch. Modules are inspected for physical damage, connector integrity, and firmware revision. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module replace an older KJ3002X1-BA1 or earlier AO card revision?
In most DeltaV installations, the KJ3002X1-BB1 is a direct hardware upgrade from earlier -BA1 suffix revisions and is backward compatible with existing I/O carriers. However, DeltaV system configuration may require a minor module type update in DeltaV Explorer. Our technical support team can provide guidance on the configuration steps required for your specific system version.
