Emerson KJ3002X1-BA1 12P0680X132 Original Industrial Spare DeltaV Compatible: System Stability and Industrial Spare Maintenance Value

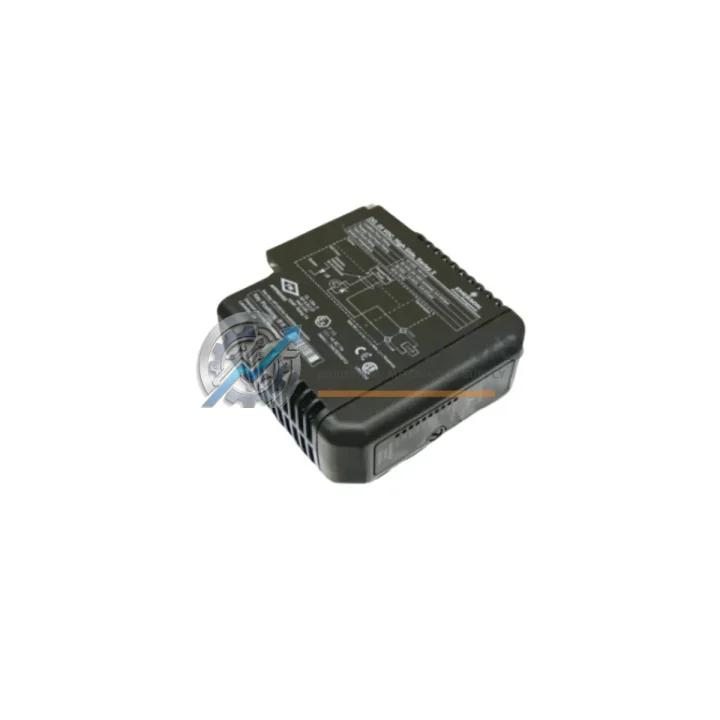

The Emerson KJ3002X1-BA1 12P0680X132 is an original DeltaV series analog input module engineered for continuous, high-reliability operation in process automation environments. Whether you are managing a petrochemical plant, a power generation facility, or a large-scale manufacturing line, this module serves as a critical node in your distributed control system (DCS) architecture. Maintaining an available stock of the KJ3002X1-BA1 is one of the most effective strategies for reducing unplanned downtime, protecting production continuity, and extending the operational life of legacy DeltaV control systems.

In industrial maintenance practice, analog input modules are among the highest-turnover spare components in any DCS cabinet. They interface directly with field transmitters — pressure, temperature, flow, and level sensors — and any degradation in signal accuracy or module responsiveness can cascade into process upsets, safety shutdowns, or costly production losses. The KJ3002X1-BA1 12P0680X132 provides a direct, plug-compatible replacement for aging or failed units within the DeltaV M-Series I/O subsystem, preserving your existing wiring infrastructure and eliminating the need for costly re-engineering.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance (PM) program for DeltaV-based control systems should treat the KJ3002X1-BA1 not as an isolated component, but as part of an interconnected I/O subsystem. During scheduled cabinet inspections or annual turnaround maintenance, technicians should simultaneously evaluate the health of the entire analog input chain. This includes checking the KJ3002X1-BA1 I/O carrier or terminal block assembly for corrosion, loose terminal screws, or heat discoloration — carrier degradation is a common root cause of intermittent AI channel faults that are often misdiagnosed as module failures.

Field wiring integrity is equally critical. Shielded twisted-pair cables connecting HART transmitters to the module terminals should be inspected for insulation damage, moisture ingress, and proper grounding. At the same time, it is advisable to verify the condition of the DeltaV MD or MD Plus controller module that governs this I/O subsystem, as controller firmware mismatches or hardware aging can affect AI module communication stability.

Power distribution within the DeltaV cabinet deserves dedicated attention. The KJ1501X1-BA2 or equivalent DeltaV power supply module should be load-tested during PM cycles, as under-voltage conditions are a leading cause of premature I/O module failure. Fuse modules and circuit protection devices within the same power rail should be inspected and replaced on a scheduled basis rather than reactively.

For facilities running HART-enabled field devices, the maintenance window is also an ideal time to perform HART device diagnostics through the DeltaV AMS Device Manager. Pairing the KJ3002X1-BA1 replacement with a calibration check of connected transmitters — such as Rosemount 3051 pressure transmitters or 644 temperature transmitters — ensures the entire measurement loop is validated after module swap. Additionally, reviewing the DeltaV CHARM I/O modules in adjacent cabinets for any alarm history or diagnostic flags can prevent secondary failures from going undetected.

Maintenance planners should also consider stocking complementary modules such as KJ3003X1-BA1 analog output modules, KJ3221X1-BA1 discrete input modules, and KJ3222X1-BA1 discrete output modules to cover the full range of I/O types within the same DeltaV M-Series cabinet. A single cabinet may contain 10–20 I/O modules of mixed types, and having cross-type spares on hand dramatically reduces mean time to repair (MTTR) during unplanned outages. Communication infrastructure components — including DeltaV redundant controller network switches and PROVOX or RS3 migration interface modules for legacy system integration — should also be reviewed as part of a comprehensive spare parts inventory strategy.

Strategic Replacement Solutions

The KJ3002X1-BA1 12P0680X132 is a direct hardware replacement for earlier DeltaV M-Series analog input modules, including discontinued or end-of-life variants that may no longer be available through OEM channels. Its plug-and-play compatibility with existing DeltaV M-Series I/O carriers means that field replacement requires no rewiring, no carrier modification, and no DeltaV database reconfiguration in most standard installations — the module is recognized automatically by the DeltaV controller upon insertion, and channel assignments are preserved.

For facilities managing aging DeltaV systems originally commissioned in the early 2000s, sourcing original spare modules like the KJ3002X1-BA1 is a cost-effective alternative to full system migration. A single DeltaV controller node with 10–15 I/O modules represents a capital investment of tens of thousands of dollars; replacing a failed analog input module with an original spare at a fraction of that cost extends system life by years while maintaining full software and hardware compatibility with the existing DeltaV configuration database.

This approach also supports regulatory compliance in industries such as pharmaceuticals, oil and gas, and nuclear power, where validated control system configurations must be maintained. Introducing a like-for-like original spare avoids the revalidation burden associated with hardware substitutions or system upgrades, protecting both production schedules and compliance documentation.

Support FAQ

Q1: Is the KJ3002X1-BA1 12P0680X132 compatible with all DeltaV M-Series controllers?
Yes. The KJ3002X1-BA1 is designed for use with DeltaV M-Series I/O carriers and is compatible with MD, MD Plus, and MQ controllers. It communicates via the DeltaV I/O Bus and is recognized automatically by the DeltaV system without requiring manual channel reconfiguration in standard installations. For S-Series or CHARM-based systems, an adapter or migration path may be required — contact us to confirm compatibility with your specific system revision.

Q2: What testing is performed before shipment?
Every KJ3002X1-BA1 unit undergoes functional verification prior to dispatch, including power-on self-test, channel continuity checks, and communication bus validation where test equipment permits. Units are shipped in anti-static packaging with individual inspection records. Our 12-month warranty covers hardware defects and functional failures under normal operating conditions from the date of shipment.

Q3: How should I manage spare parts inventory for a DeltaV M-Series system?
Industry best practice recommends maintaining a minimum of one spare unit per module type for critical I/O nodes, with higher quantities for high-channel-count or high-criticality loops. For a typical DeltaV cabinet with 8–12 analog input modules, stocking 2–3 KJ3002X1-BA1 spares provides adequate coverage for both emergency replacement and scheduled PM swaps. Pairing AI module spares with analog output and discrete I/O spares creates a comprehensive cabinet-level spare kit.

Q4: What is the lead time and warranty coverage?
In-stock units ship within 1–3 business days via your preferred carrier. Express and international shipping options are available. All units carry a 12-month warranty from the shipment date. Warranty claims are processed with priority support — contact us at [email protected] or +86 18359293191 for RMA initiation or pre-purchase compatibility verification.
