EMERSON KJ3001X1-BG1 DeltaV DO 24VDC Replacement Module

Product Overview

EMERSON KJ3001X1-BG1 DeltaV DO 24VDC Replacement Module: Seamless Transition from Legacy DCS Output Systems

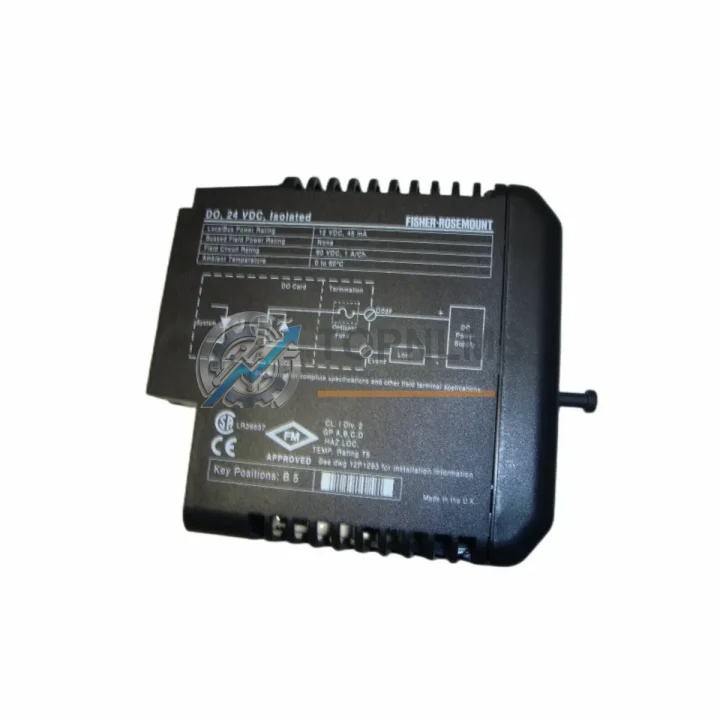

The EMERSON KJ3001X1-BG1 (12P0557X162) is a DeltaV Series 24VDC Isolated Digital Output Module engineered for mission-critical process control environments. As legacy DCS installations age and OEM support windows close, facilities running older DeltaV S-series controllers, MD-series controllers, or first-generation DeltaV workstations face increasing pressure to source reliable, specification-matched replacement modules. The KJ3001X1-BG1 addresses this need directly — providing a verified drop-in upgrade path that preserves existing field wiring, marshalling cabinet layouts, and DeltaV control strategies without requiring a full system re-engineering effort.

This module delivers 8-channel 24VDC isolated digital output capability, with each channel individually isolated to prevent fault propagation across the output bus. It is fully compatible with the DeltaV M-Series I/O subsystem and mounts directly into standard DeltaV I/O carrier assemblies, including the KJ3001X1 carrier and associated DeltaV I/O sub-system racks. The module communicates natively over the DeltaV I/O bus, requiring no protocol conversion or gateway hardware when replacing a like-for-like unit in an existing DeltaV architecture.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing a single DO module is rarely an isolated task. In most DeltaV migration and modernization projects, the KJ3001X1-BG1 is deployed alongside a broader set of I/O and infrastructure components. During field commissioning, engineers frequently pair this module with the KJ3002X1-BA1 DeltaV DI 24VDC Digital Input Module to maintain balanced I/O density within the same rack. Where process loops require analog feedback, the KJ3221X1-BA1 DeltaV AI 4–20mA Analog Input Module is commonly installed in adjacent slots to preserve signal integrity across the marshalling cabinet.

For facilities upgrading from older DeltaV MD-series or S-series controllers, the transition often involves replacing the KJ2003X1-BA1 DeltaV M-Series Controller in tandem with I/O module refreshes, ensuring that the control strategy database remains synchronized with the updated hardware revision. Power distribution within the I/O rack is typically managed through the KJ4001X1-BA1 DeltaV Power Supply Module, which must be verified for load capacity when adding isolated output modules with higher per-channel current draw.

Communication continuity is another critical factor in DeltaV migration projects. Sites running legacy PROVOX or RS3 systems migrating to DeltaV often require the KJ3243X1-BA1 DeltaV HART Analog Output Module to maintain HART device communication with existing field instruments, avoiding the need to replace smart transmitters and valve positioners during the cutover window. Where Fieldbus segments are involved, the KJ3243X1-BC1 DeltaV Foundation Fieldbus H1 Card provides native FF-H1 integration without additional gateway hardware.

In control cabinet environments where space is constrained, the KJ3001X1 I/O Carrier Assembly allows the KJ3001X1-BG1 to be installed without modifying existing DIN rail or backplane arrangements. For sites requiring signal conditioning between legacy field devices and the new DeltaV I/O subsystem, inline signal isolators and terminal multipliers compatible with DeltaV marshalling standards are recommended to maintain loop integrity during phased migration. Programming and configuration changes are managed through the DeltaV Explorer and Control Studio environment, with the module recognized automatically upon insertion — minimizing engineering time during planned maintenance windows.

Retrofit Guidance FAQ

Q: Do I need to rewire field terminals when replacing with KJ3001X1-BG1?
No. The KJ3001X1-BG1 uses the same KJ3001X1 carrier and terminal block layout as previous DeltaV DO module revisions. Existing field wiring connected to the marshalling cabinet remains undisturbed. Simply remove the old module card, insert the KJ3001X1-BG1, and restore power — no terminal block changes are required.

Q: Will my existing DeltaV control strategy need to be modified or re-downloaded?
In most cases, no. The KJ3001X1-BG1 is recognized by DeltaV as the same module class as its predecessor. The existing module configuration, channel assignments, and I/O parameter mappings are retained. A module download may be triggered automatically by DeltaV upon hot-swap detection, but no manual re-engineering of the control strategy is necessary.

Q: Is the KJ3001X1-BG1 compatible with both DeltaV M-Series and S-Series controllers?
Yes. The module operates on the standard DeltaV I/O bus and is compatible with DeltaV M-Series, MD-Series, and S-Series controller platforms. Verify your DeltaV system version against the module’s firmware revision to confirm compatibility with your specific controller generation.

Q: Can this module be hot-swapped during live plant operation?
DeltaV supports hot-swap of I/O modules in configurations where the I/O carrier remains powered and the controller is in RUN mode. The KJ3001X1-BG1 supports this capability in standard DeltaV I/O subsystem configurations. Always verify your site’s safety procedures and process impact before performing a hot-swap on active output channels controlling field devices.

Q: What communication protocol does this module use?
The KJ3001X1-BG1 communicates exclusively over the proprietary DeltaV I/O bus. No additional protocol configuration, gateway, or converter is required. It does not support PROFIBUS, PROFINET, EtherNet/IP, or Modbus natively — these protocols are handled at the DeltaV controller or network interface card level.

Q: How do I verify the physical installation space in my existing cabinet?
The KJ3001X1-BG1 occupies a single standard DeltaV I/O card slot within the DeltaV I/O rack. No additional mounting hardware or cabinet modification is required. Confirm that the target slot in your I/O carrier is vacant and that the carrier is correctly seated in the DeltaV I/O rack before insertion.

Warranty Assurance

Every EMERSON KJ3001X1-BG1 12P0557X162 shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes functional verification including output channel continuity checks, isolation resistance testing, and visual inspection for physical integrity. Units that do not meet specification are quarantined and not shipped.

In the event of a confirmed module defect within the warranty period, TOPNLMS provides direct replacement support with priority processing to minimize your plant downtime exposure. Our after-sales response team is reachable via email and phone for technical queries, warranty claims, and expedited replacement coordination. We maintain bonded inventory of high-demand DeltaV I/O modules to support rapid dispatch for critical spares requirements.

All orders are processed with full traceability documentation including part number verification, revision confirmation, and shipment records. Export compliance documentation is available upon request for international shipments. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock units, with express shipping options available for urgent plant maintenance scenarios.

For procurement inquiries, technical compatibility questions, or warranty support, contact the TOPNLMS industrial automation team directly.
