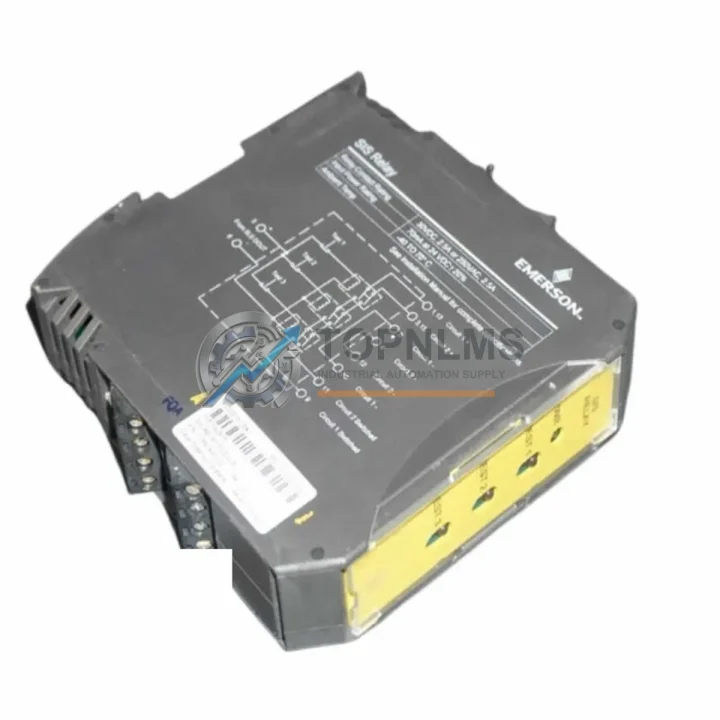

Emerson KJ2231X1-EA1 Replacement for DeltaV Series

Product Overview

Emerson KJ2231X1-EA1 Replacement for DeltaV Series: Seamless Transition & Legacy System Upgrade

The Emerson KJ2231X1-EA1 is a DeltaV Series Relay Output Module engineered for industrial process control environments where reliability, signal integrity, and backward compatibility are non-negotiable. For facilities operating aging DeltaV S-series controllers or migrating from discontinued Emerson I/O platforms, the KJ2231X1-EA1 provides a direct, drop-in upgrade path that minimizes engineering rework, reduces downtime, and preserves existing wiring infrastructure.

Whether your plant is retiring a legacy DeltaV MD Controller rack, replacing failed relay output cards in a distributed control cabinet, or consolidating I/O density across a multi-loop process skid, the KJ2231X1-EA1 integrates into your existing DeltaV architecture without requiring changes to field wiring terminations, marshalling panels, or control logic. Its relay contact outputs are compatible with standard 24 VDC and 120/240 VAC field devices, making it suitable for motor starter interlocks, solenoid valve control, alarm annunciators, and discrete on/off actuator commands.

Facilities that have standardized on the Emerson DeltaV S-series I/O subsystem — including the KJ2201X1-BA1 AI module, KJ3001X1-BA1 DI module, and KJ3221X1-BA1 DO module — will find the KJ2231X1-EA1 fully rack-compatible, sharing the same carrier and terminal block form factor. This means no mechanical modifications to the I/O enclosure, no re-labeling of field junction boxes, and no changes to the DeltaV Explorer module assignment database beyond a simple module swap and online download.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DeltaV relay output migration rarely involves a single module swap. In practice, field engineers replacing the KJ2231X1-EA1 in an active control system will also evaluate the surrounding I/O infrastructure for wear, obsolescence, or capacity constraints. The following components are commonly assessed or replaced in the same maintenance window:

The KJ2201X1-BA1 Analog Input Module is frequently co-located in the same I/O carrier row as the relay output card, sharing the same DeltaV I/O bus segment. If the AI module shows calibration drift or intermittent channel faults, replacing it alongside the KJ2231X1-EA1 eliminates a second unplanned outage. Similarly, the KJ3001X1-BA1 Digital Input Module handles discrete field status signals — limit switches, pressure switches, and motor run feedbacks — that are logically paired with the relay output commands issued by the KJ2231X1-EA1. Ensuring both modules are on current firmware revisions prevents handshake timing issues during online downloads.

For systems where the DeltaV MD Plus Controller or DeltaV PK Controller is approaching end-of-support, the relay output module replacement is often the first step in a phased migration plan. The controller’s internal I/O bus arbitration firmware must be compatible with the EA1 revision of the KJ2231X1; plants running very early DeltaV v7 or v8 firmware should verify compatibility before hot-swapping in a production environment.

Terminal block assemblies — specifically the Emerson KJ1501X1-BG2 terminal block — are the mechanical interface between the KJ2231X1-EA1 and field wiring. After years of thermal cycling and vibration, terminal block contacts can develop micro-arcing that mimics relay output faults. Replacing the terminal block at the same time as the relay module eliminates this diagnostic ambiguity. The KJ4001X1-BA1 Power Supply Module that feeds the I/O carrier bus should also be load-tested; a marginal power supply will cause intermittent relay chatter under full-channel load.

For plants integrating the DeltaV system with third-party SCADA or historian platforms via FOUNDATION Fieldbus H1 or HART communication, the KJ2211X1-EA1 HART Analog Output Module is a common companion module in the same cabinet. Ensuring the relay output and HART AO modules share a consistent I/O bus revision prevents communication collisions during simultaneous channel updates. In larger DCS architectures, the DeltaV CIOC (Charm I/O Card) may be used to extend I/O capacity without adding physical I/O carriers — a consideration for greenfield expansions adjacent to the relay output retrofit.

Finally, for commissioning and online diagnostics, a DeltaV Engineering Workstation running DeltaV Operate or DeltaV Diagnostics is required to perform the module assignment, online download, and channel-level loop test. If the site’s engineering workstation is running an outdated DeltaV version, the module swap is an appropriate trigger to schedule a DeltaV software upgrade as part of the same maintenance event.

Retrofit Guidance FAQ

Q: Can I replace the KJ2231X1-EA1 without shutting down the entire DeltaV controller?
A: Yes. The DeltaV S-series supports online module replacement (hot-swap) at the I/O carrier level, provided the controller is in RUN mode and the module slot is not in a critical interlock path. Always verify with your site safety officer and DeltaV system documentation before performing a hot-swap on a live process.

Q: Do I need to rewrite any control logic after replacing the module?
A: No logic rewrite is required. The KJ2231X1-EA1 uses the same DeltaV module type definition as prior relay output revisions. After physical installation, perform a module assignment in DeltaV Explorer and execute an online download to the controller. All existing function block parameters, I/O channel assignments, and alarm limits are preserved.

Q: Is the field wiring compatible with the replacement module?
A: Yes. The KJ2231X1-EA1 uses the same terminal block pinout as previous DeltaV relay output modules. Field wiring connected to the Emerson KJ1501X1-BG2 terminal block does not need to be re-terminated. Verify wire ferrule condition and terminal torque values per Emerson installation guidelines before returning the loop to service.

Q: What communication protocol does the KJ2231X1-EA1 use?
A: The module communicates exclusively over the DeltaV internal I/O bus — a proprietary high-speed serial bus managed by the DeltaV controller. It does not use PROFIBUS, FOUNDATION Fieldbus, HART, or Modbus directly. Field device communication protocols are handled by dedicated Emerson fieldbus interface modules in separate carrier slots.

Q: Will the module fit in my existing DeltaV I/O enclosure?
A: Yes. The KJ2231X1-EA1 conforms to the standard DeltaV I/O card form factor and mounts directly into any compatible DeltaV I/O carrier without enclosure modification. Verify that the carrier slot is not mechanically damaged and that the carrier locking tab is functional before insertion.

Q: What if my DeltaV system is running an older firmware version?
A: The KJ2231X1-EA1 EA1 revision is compatible with DeltaV v9.3 and later. Plants running DeltaV v7 or v8 should consult Emerson’s compatibility matrix or contact TOPNLMS for pre-purchase verification. A firmware upgrade path is available and can be planned as part of the same maintenance window.

Warranty Assurance

Every Emerson KJ2231X1-EA1 shipped by TOPNLMS is covered by a 12-month replacement warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection including relay contact continuity verification, I/O bus communication handshake testing, and visual inspection for physical damage, counterfeit indicators, and revision label authenticity.

If a unit exhibits a defect within the warranty period — including relay contact failure, I/O bus communication loss, or physical damage attributable to manufacturing — TOPNLMS will arrange a replacement shipment at no additional cost. Our standard response time for warranty claims is within 2 business days of defect confirmation. Replacement units are drawn from inspected stock and shipped with the same lead time as standard orders.

For B2B procurement teams managing spare parts programs, TOPNLMS offers batch inspection reports on request for orders of 3 or more units. This documentation supports internal quality management systems and IEC 62443 cybersecurity compliance programs that require traceability of control system components.

Stock is maintained in Xiamen, China, with standard international shipping via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Typical transit time to North America is 3–5 business days; Europe 3–6 business days; Southeast Asia 1–3 business days. Export documentation including commercial invoice, packing list, and certificate of origin is provided with every shipment.

For urgent replacement requirements — including unplanned outages and emergency maintenance windows — contact our technical sales team directly to confirm real-time stock availability and expedited shipping options.
