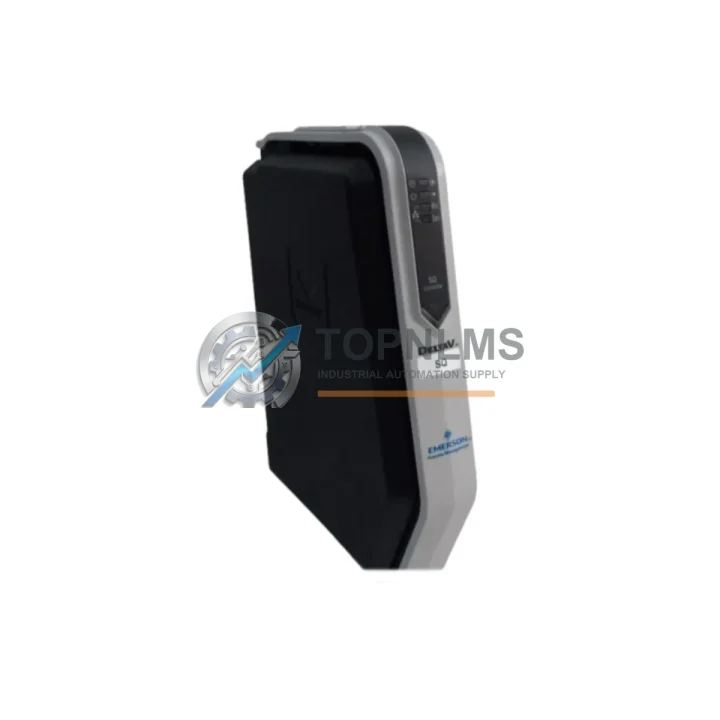

Emerson KJ2005X1-SQ1 12P6383X022 Ruggedized Analog Input Module

Product Overview

Emerson KJ2005X1-SQ1 12P6383X022 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The Emerson KJ2005X1-SQ1 12P6383X022 is a high-integrity 8-channel analog input I/O card engineered for the Emerson DeltaV distributed control system (DCS). Designed to operate continuously in demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the signal fidelity and system stability that mission-critical automation demands.

Built to Emerson’s rigorous quality standards, the KJ2005X1-SQ1 12P6383X022 provides reliable 4–20 mA and HART-compatible analog signal acquisition across all eight channels simultaneously. Its robust hardware design incorporates advanced electromagnetic interference (EMI) shielding, ensuring accurate data transmission even in environments with high-frequency drive noise from variable frequency drives (VFDs), large motor starters, and power conversion equipment commonly found in oil and gas, petrochemical, and metallurgical plants.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated DeltaV control architecture, the KJ2005X1-SQ1 12P6383X022 analog input card does not operate in isolation — it is the sensing backbone of a broader system designed for continuous, fault-tolerant operation. It mounts directly onto the Emerson DeltaV KJ3001X1-BA1 8-channel I/O carrier, which provides the mechanical and electrical interface to the DeltaV controller bus. The carrier’s robust locking mechanism ensures the module remains firmly seated even under sustained mechanical vibration, a critical requirement in compressor stations and rotating equipment environments.

Signal integrity from field instruments — including pressure transmitters, temperature sensors, and flow meters — is preserved through the module’s HART communication capability, allowing simultaneous process variable acquisition and device diagnostics without interrupting the control loop. This is particularly valuable when paired with Emerson DeltaV KJ1501X1-BG2 HART multiplexers or when integrating with Rosemount 3051 pressure transmitters and Rosemount 644 temperature transmitters already deployed in the field.

For power supply redundancy — a non-negotiable requirement in continuous process industries — the KJ2005X1-SQ1 12P6383X022 relies on the DeltaV power infrastructure, typically backed by Emerson DeltaV KJ4001X1-EA1 redundant power supplies. These supplies are engineered to maintain stable DC bus voltage even during utility grid fluctuations, protecting the analog input card and all connected I/O from transient power events that could corrupt measurement data or trigger spurious shutdowns.

In safety-instrumented system (SIS) architectures, this analog input module is frequently deployed alongside Emerson DeltaV SIS logic solvers and SIL-rated safety I/O modules to form a layered protection strategy. The analog signals acquired by the KJ2005X1-SQ1 feed into the DeltaV controller — such as the MD Plus or MQ controller — where they are processed against safety interlock logic, enabling automatic protective actions before process deviations escalate into hazardous events.

Communication integrity across the DeltaV network is maintained through Emerson DeltaV KJ2005X1-series network interface cards and DeltaV workstation nodes, ensuring that analog process data is transmitted to the operator HMI with minimal latency. In facilities where legacy FOUNDATION Fieldbus or PROFIBUS PA instruments coexist with HART devices, the KJ2005X1-SQ1 12P6383X022 can be integrated within a mixed I/O strategy alongside Emerson DeltaV Fieldbus H1 interface modules, providing a unified control layer across heterogeneous field device populations.

Application in Critical Infrastructure

The Emerson KJ2005X1-SQ1 12P6383X022 has established a proven track record across the world’s most demanding industrial sectors:

Oil & Gas — Upstream and Midstream: In offshore platforms and onshore gas processing facilities, this analog input card monitors critical process variables including wellhead pressure, separator levels, and gas flow rates. Its EMI-hardened design withstands the intense electromagnetic environment generated by high-power drilling equipment, subsea control systems, and topside power generation. Continuous operation in salt-laden, high-humidity marine atmospheres is supported by the module’s conformal coating and sealed connector design.

Power Generation — Thermal and Combined Cycle Plants: Boiler drum level, steam pressure, and turbine inlet temperature are among the analog signals managed by the KJ2005X1-SQ1 in power plant DCS architectures. The module’s ability to maintain measurement accuracy across wide temperature ranges — from cold ambient startup conditions to sustained high-temperature control room environments — makes it a preferred choice for plant engineers managing baseload and peaking generation assets.

Mining and Mineral Processing: In copper smelters, gold processing circuits, and coal preparation plants, the KJ2005X1-SQ1 12P6383X022 operates in environments characterized by heavy dust loading, aggressive chemical vapors, and continuous mechanical vibration from crushers, conveyors, and mills. Its vibration-resistant mounting and sealed I/O terminations prevent premature failure caused by particulate ingress and structural fatigue.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on precise analog measurement of pH, dissolved oxygen, turbidity, and flow to maintain regulatory compliance. The KJ2005X1-SQ1’s HART capability enables remote diagnostics of submerged sensors and field transmitters, reducing the need for manual inspection in confined-space or hazardous-area installations.

Metallurgy and Steel Production: In electric arc furnaces, continuous casting lines, and rolling mills, the analog input card must withstand extreme thermal cycling, high-frequency electrical noise from thyristor drives, and the physical shock of heavy industrial machinery. The KJ2005X1-SQ1 12P6383X022 meets these challenges through its robust hardware architecture and Emerson’s proven DeltaV platform reliability.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Emerson KJ2005X1-SQ1 12P6383X022?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions consistent with Emerson’s published specifications. In the event of a warranty claim, TOPNLMS provides replacement or repair support with priority handling to minimize your plant downtime.

Q2: How is each unit tested before shipment?
Every KJ2005X1-SQ1 12P6383X022 module undergoes a pre-shipment functional verification process. This includes power-on testing, channel integrity checks across all 8 analog inputs, and communication bus validation. Units sourced as tested surplus are additionally inspected for physical condition, connector integrity, and firmware version compatibility with current DeltaV system releases.

Q3: Is this module compatible with my existing DeltaV system version?
The KJ2005X1-SQ1 12P6383X022 is designed for the Emerson DeltaV S-Series platform and is compatible with DeltaV system versions that support the standard 8-channel analog input I/O card form factor. Compatibility with specific controller generations — including MD, MD Plus, and MQ controllers — should be confirmed against your site’s DeltaV system version. TOPNLMS technical staff can assist with compatibility verification prior to purchase.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains dedicated inventory of Emerson DeltaV I/O modules, including the KJ2005X1-SQ1 12P6383X022, to support both planned maintenance schedules and emergency breakdown situations. We offer expedited shipping to minimize production interruption, and our procurement team can assist with sourcing additional DeltaV components — including controllers, power supplies, carriers, and communication modules — to support your complete spare parts strategy.
