Emerson KJ2005X1-MQ1 12P6381X022 Ruggedized DCS Controller Module

Product Overview

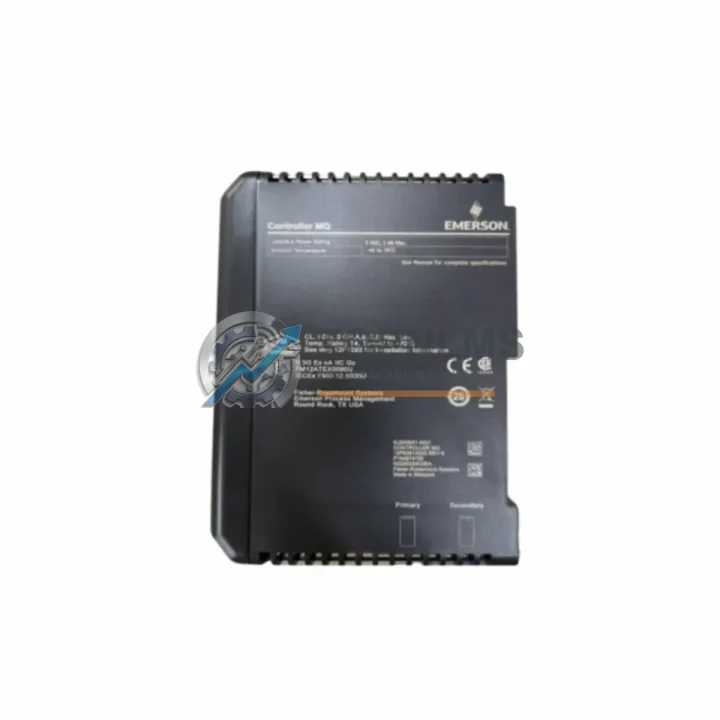

Emerson KJ2005X1-MQ1 12P6381X022 Ruggedized DCS Controller Module for Harsh Industrial Environments

The Emerson KJ2005X1-MQ1 12P6381X022 is a high-reliability DeltaV Distributed Control System (DCS) controller module engineered to sustain continuous, fault-tolerant operation in the most demanding industrial environments. Designed as a core processing and control node within the Emerson DeltaV architecture, this module delivers deterministic scan-cycle performance, robust I/O coordination, and seamless integration with the broader DeltaV ecosystem — even under conditions of extreme temperature variation, high humidity, persistent vibration, airborne particulate contamination, and intense electromagnetic interference (EMI).

Industrial facilities operating continuous production lines — including oil refineries, natural gas processing plants, offshore platforms, coal and metal mines, thermal and hydroelectric power stations, municipal water treatment works, and heavy metallurgical complexes — demand control hardware that does not yield to environmental stress. The KJ2005X1-MQ1 12P6381X022 is purpose-built for exactly these scenarios, providing the processing backbone that keeps field instruments, actuators, and safety interlocks synchronized and responsive around the clock.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ2005X1-MQ1 12P6381X022 does not operate in isolation — it is the command center of a tightly integrated DeltaV control architecture. In a typical heavy-industry control cabinet, this controller module coordinates directly with Emerson KJ3001X1 Series 2 I/O interface modules, which aggregate field signals from temperature transmitters, pressure sensors, and flow meters distributed across the plant. Analog input cards such as the Emerson KJ2201X1-BA1 feed 4–20 mA HART signals into the controller’s scan cycle, enabling real-time process variable monitoring without interruption.

For discrete control and safety interlock logic, the controller interfaces with Emerson KJ2211X1-BA1 discrete I/O modules, which handle high-density digital signals from motor starters, solenoid valves, and emergency shutdown (ESD) pushbuttons. In SIL-rated safety instrumented system (SIS) applications, the KJ2005X1-MQ1 12P6381X022 works alongside Emerson DeltaV SIS Logic Solver modules to enforce IEC 61511-compliant safety functions, ensuring that process deviations trigger protective actions within the required response time.

Power integrity is maintained by Emerson KJ4001X1 DeltaV power supplies, which deliver regulated, filtered DC power to the controller backplane even when upstream AC supply quality is degraded by switching loads or generator transients — a common challenge in mining and offshore environments. Where fieldbus communication is required, the Emerson KJ4002X1 FOUNDATION Fieldbus H1 interface card extends the controller’s reach to intelligent field devices such as Rosemount 3051 pressure transmitters and Fisher FIELDVUE digital valve controllers, all communicating over a single twisted-pair segment.

In facilities where variable-speed drives introduce harmonic disturbances into the control network, the KJ2005X1-MQ1 12P6381X022’s EMI-hardened design maintains signal integrity across the DeltaV network switch infrastructure. Terminal modules such as the Emerson KJ3221X1 marshalling terminal blocks provide the field-wiring interface, simplifying cabinet layout and reducing the risk of wiring errors during commissioning or maintenance shutdowns. For remote I/O applications in geographically distributed plants, Emerson CHARM I/O modules (CIOC) extend the DeltaV architecture over fiber-optic links, keeping the KJ2005X1-MQ1 12P6381X022 as the central processing authority regardless of physical distance.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the KJ2005X1-MQ1 12P6381X022 manages wellhead control panels, compressor anti-surge logic, and pipeline pressure regulation. Its ability to sustain deterministic control loop execution at scan rates below 100 ms ensures that fast-acting processes — such as compressor surge protection or emergency depressurization — respond within safety-critical time windows. Offshore platform installations benefit from the module’s tolerance of salt-laden humid air and the mechanical vibration transmitted through steel deck structures.

In coal-fired and combined-cycle power generation, this DeltaV controller module governs boiler combustion control, turbine governor interfacing, and auxiliary system sequencing. The module’s redundant controller configuration capability means that a single hardware fault does not interrupt megawatt-scale generation — the standby controller assumes control within milliseconds, invisible to the process. Power plant operators in China, Southeast Asia, and the Middle East rely on DeltaV controller modules of this series to meet grid-stability obligations and regulatory uptime requirements.

In water and wastewater treatment facilities, the KJ2005X1-MQ1 12P6381X022 orchestrates dosing pump sequencing, filtration backwash cycles, and effluent quality monitoring. Municipal utilities value the module’s long service life and the availability of spare units through specialist distributors, which eliminates the risk of extended downtime caused by obsolete hardware. Similarly, in metallurgical and steel-making plants, where furnace temperature control and rolling mill speed regulation demand microsecond-level precision, this controller module provides the processing headroom and I/O bandwidth required to maintain product quality and worker safety simultaneously.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures that arise under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange a replacement or full refund after fault verification. Claims are initiated by contacting [email protected] with the order number and a description of the fault. Typical claim resolution time is 5–10 business days.

Q2: How is each KJ2005X1-MQ1 12P6381X022 unit tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, power-on functional verification, communication port integrity check, and firmware version confirmation. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for customers with quality-management system (QMS) requirements.

Q3: Is this module compatible with all DeltaV system versions, and can it replace an older controller in an existing installation?
The KJ2005X1-MQ1 12P6381X022 is compatible with DeltaV system versions 10.3 through 14.x and is a direct form-fit-function replacement for earlier KJ2005 series controllers. Before installation, customers should verify the DeltaV system software version and controller firmware to ensure compatibility. TOPNLMS technical support can assist with compatibility confirmation prior to purchase — contact us with your current system version details.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. TOPNLMS maintains a dedicated inventory of DeltaV DCS spare parts, including multiple DCS controller module variants, to support planned maintenance shutdowns, emergency replacements, and long-term service agreements. For customers managing multi-site operations or annual maintenance contracts, we offer reserved-stock arrangements and priority dispatch. Inquire at [email protected] or call +86 18359293191 to discuss your supply continuity requirements.
