Emerson KJ1501X1-BC4 13P0063X052 Original Industrial Spare DeltaV Compatible: System Stability and Industrial Spare Maintenance Value

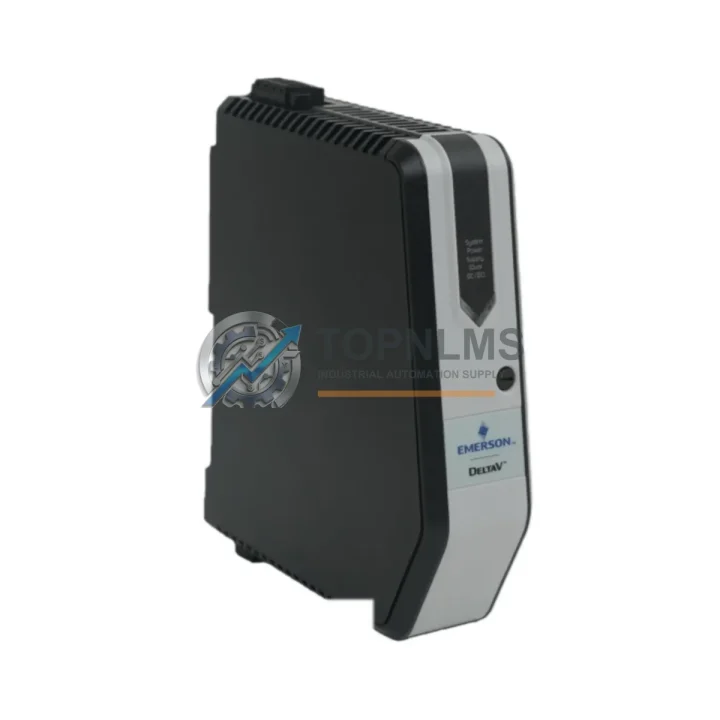

The Emerson KJ1501X1-BC4 (part number 13P0063X052) is an original dual DC power supply module engineered for the Emerson DeltaV distributed control system platform. In process-critical environments — oil & gas, chemical processing, power generation, and pharmaceutical manufacturing — the power supply module is the backbone of controller availability. A degraded or failed power supply is one of the most common root causes of unplanned DCS shutdowns. Stocking a verified original KJ1501X1-BC4 13P0063X052 as a ready-to-deploy spare is one of the highest-value decisions a maintenance team can make.

This module provides redundant dual DC power input to the DeltaV controller chassis, ensuring that a single power feed failure does not interrupt process control. Its plug-and-play compatibility with the DeltaV Series controller backplane means field replacement can be completed in minutes without system reconfiguration, dramatically reducing mean time to repair (MTTR) during emergency shutdowns.

Critical Technical Specs

Preventive Maintenance Strategy

Power supply failures rarely occur in isolation. In a DeltaV control cabinet, the KJ1501X1-BC4 13P0063X052 works in concert with a broader ecosystem of interdependent components. A disciplined preventive maintenance program should treat the power supply module as part of a system-level inspection, not a standalone unit.

During scheduled cabinet inspections, maintenance engineers should simultaneously verify the condition of the DeltaV controller module (such as the KJ2003X1-BA1 MD Controller) seated in the same carrier. Controller modules that share a degraded power bus often exhibit intermittent communication faults before a hard failure occurs. Replacing the power supply without auditing the controller’s diagnostic logs is an incomplete repair.

The DeltaV I/O carrier and I/O module assemblies — including 8-channel analog input modules (e.g., KJ3001X1-BA1) and digital output modules — draw regulated power from the same backplane bus. If the KJ1501X1-BC4 has been operating in a degraded state, downstream I/O modules may have experienced voltage sag events that accelerate capacitor aging. A proactive inspection of I/O module status LEDs and channel diagnostics during the same maintenance window prevents a second unplanned outage weeks later.

Field wiring integrity is equally critical. DeltaV marshalling cabinet terminal blocks and signal cables connecting field instruments to I/O modules should be inspected for corrosion, loose terminations, and insulation degradation. A loose 24 VDC power terminal feeding the KJ1501X1-BC4 can cause intermittent resets that mimic controller software faults, leading maintenance teams down costly diagnostic dead ends.

For sites running redundant DeltaV architectures, the DeltaV redundancy module (e.g., KJ4001X1-BA1) should be tested during the same outage window. Redundancy switchover events triggered by a failing power supply can leave the redundancy module in a degraded synchronization state that is not immediately visible in the operator console. Confirming redundancy health after any power supply replacement is standard best practice.

The 24 VDC bulk power supply units feeding the DeltaV cabinet — typically DIN-rail mounted SMPS units from the same control room panel — should be load-tested and output voltage verified. A bulk PSU operating at the edge of its rated output will cause the KJ1501X1-BC4 to cycle between normal and fault states, producing misleading diagnostics. Stocking a spare bulk PSU alongside the KJ1501X1-BC4 is a low-cost insurance policy against extended downtime.

Sites with HART-enabled field instruments connected through DeltaV HART I/O modules should also verify HART communication integrity after any power supply replacement. Power interruptions — even brief ones — can reset HART device configurations in some legacy transmitters, requiring field re-commissioning. Having HART communicator cables and interface modules available in the maintenance kit accelerates post-replacement verification.

Finally, for aging DeltaV installations, the DeltaV workstation and application station hardware — including network switches, fiber optic transceivers, and the DeltaV control network infrastructure — should be included in the annual maintenance audit. A stable, well-powered controller is only as reliable as the network it communicates over. Proactive replacement of aging DeltaV network interface cards and managed Ethernet switches in the control network prevents the most common post-repair communication anomalies.

Strategic Replacement Solutions

The KJ1501X1-BC4 13P0063X052 is a direct original replacement for aging or failed power supply modules in DeltaV systems that have been in continuous operation for 10–20 years. Many process plants running legacy DeltaV S-series or MD-series architectures face the challenge of sourcing original spare parts as Emerson transitions its support lifecycle. This module bridges that gap: it is an original Emerson component, not a third-party substitute, ensuring full firmware and hardware compatibility without the risk of undocumented behavioral differences.

For maintenance planners managing multi-site DeltaV installations, stocking one KJ1501X1-BC4 13P0063X052 per controller node — or at minimum one per site — is the industry-standard recommendation for Tier 1 critical spares. The cost of a single unplanned shutdown in a process plant typically exceeds the cost of a full cabinet’s worth of spare modules. The economics of proactive sparing are unambiguous.

Field replacement is straightforward: the module is hot-swappable in redundant configurations, meaning the replacement can be performed without taking the associated process loop offline. In non-redundant configurations, a planned brief outage of the affected controller node is required, but the physical swap takes under five minutes for a trained technician. No DeltaV software reconfiguration or download is required after replacement — the system recognizes the module automatically upon power-up.

All units shipped from TOPNLMS are tested under load prior to dispatch, with functional verification of both DC input channels and backplane output regulation. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
