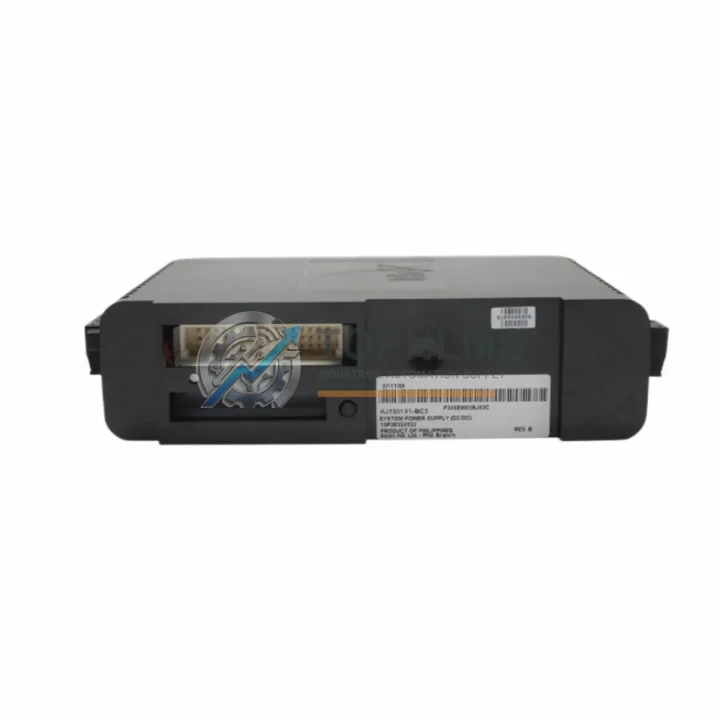

Emerson KJ1501X1-BC3/12P3935X022 Ruggedized DCS Power Supply Module

Product Overview

Emerson KJ1501X1-BC3/12P3935X022 Ruggedized DCS Power Supply Module for Harsh Industrial Environments

The Emerson KJ1501X1-BC3/12P3935X022 is a ruggedized DCS power supply module engineered for the DeltaV distributed control system platform. Designed to deliver stable, conditioned DC power to critical controller nodes and I/O subsystems, this module maintains uninterrupted operation across the most demanding industrial environments — including high-temperature process areas, high-humidity coastal facilities, dust-laden mining sites, and electrically noisy heavy manufacturing floors. Its robust internal architecture provides superior immunity to voltage transients, electromagnetic interference (EMI), and mechanical vibration, making it a trusted backbone component in continuous production lines where unplanned downtime carries severe operational and safety consequences.

In DeltaV-based control architectures, the power supply module is the foundation upon which all other system components depend. The KJ1501X1-BC3/12P3935X022 delivers regulated, low-ripple DC output to DeltaV controller cards, I/O carrier modules, and communication interface cards. When paired with redundant power supply configurations — a standard practice in safety-critical installations — it ensures that a single power path failure does not propagate to process upsets. This module is fully compatible with the DeltaV M-Series and S-Series controller families, and integrates seamlessly with DeltaV CHARM I/O, traditional 8-channel I/O cards, and the DeltaV SIS safety instrumented system platform.

Industrial facilities operating oil and gas separation trains, refinery distillation columns, chemical reactor control loops, or water treatment SCADA systems rely on the DeltaV power supply infrastructure to sustain 24/7 availability. The KJ1501X1-BC3/12P3935X022 is rated for continuous duty in ambient temperatures up to 60 °C and is designed to tolerate the thermal cycling common in outdoor equipment enclosures and non-climate-controlled substations. Its conformal-coated PCB assembly resists moisture ingress and corrosive atmospheric contaminants — a critical attribute in coastal petrochemical complexes and underground mining control rooms.

From a system integration perspective, this power supply module works in concert with the full DeltaV hardware ecosystem. DeltaV MD Plus and MD controllers draw regulated power through the carrier backplane, while DeltaV I/O subsystems — including analog input, analog output, discrete input, and discrete output modules — depend on stable rail voltages for accurate signal conditioning. Communication modules such as the DeltaV PROFIBUS interface card and the DeltaV Foundation Fieldbus H1 card are equally sensitive to power quality; the KJ1501X1-BC3/12P3935X022 provides the clean, stable supply these devices require to maintain deterministic bus timing and prevent spurious communication faults.

In safety instrumented system (SIS) applications governed by IEC 61511 and IEC 61508, power supply integrity is a fundamental layer of the protection architecture. The KJ1501X1-BC3/12P3935X022 supports SIL-rated loop designs by providing the reliable power foundation that DeltaV SIS logic solvers, safety I/O modules, and final element interface cards require. When integrated with external UPS systems and redundant AC feeds, this module contributes to the overall system availability targets demanded by functional safety assessments in oil and gas, nuclear auxiliary systems, and large-scale chemical processing plants.

For maintenance engineers managing spare parts inventories, the KJ1501X1-BC3/12P3935X022 is a direct form-fit-function replacement for aging DeltaV power supply assemblies. Its standardized DIN-rail-compatible carrier mounting and keyed backplane connector eliminate mis-installation risk during hot-swap maintenance windows. Facilities running legacy DeltaV Version 9 through current DeltaV Version 15 software releases can deploy this module without firmware reconfiguration, reducing mean time to repair (MTTR) and minimizing the window of exposure during corrective maintenance activities.

Rugged Specifications Table

Comprehensive Protection Solutions

The KJ1501X1-BC3/12P3935X022 does not operate in isolation — it is the power anchor for a broader DeltaV protection and control architecture. In a typical DeltaV control cabinet, the power supply module feeds the DeltaV MD Plus controller, which orchestrates process logic across multiple I/O subsystems. Analog input modules such as the KJ3002X1-BA1 receive 4–20 mA signals from field transmitters, while discrete output modules like the KJ1002X1-BA1 drive solenoid valves and motor starters. All of these I/O cards depend on the stable rail voltage delivered by the KJ1501X1-BC3/12P3935X022 to maintain signal accuracy and switching reliability.

In process safety layers, the DeltaV SIS logic solver modules — including the KJ2201X1-HA1 SIS controller — draw power through the same carrier infrastructure. Redundant power supply pairs using two KJ1501X1-BC3/12P3935X022 units in a load-sharing configuration are standard practice in SIL 2 and SIL 3 certified loops. The DeltaV PROFIBUS DP interface module and the DeltaV Foundation Fieldbus H1 card, both of which handle field device communication in process-intensive applications, require clean, stable power to prevent bus arbitration errors and spurious device disconnections.

Beyond the DeltaV ecosystem, control cabinets in heavy industry typically house complementary protection components: 24 VDC DIN-rail power supplies from Phoenix Contact or Weidmüller that back-feed auxiliary relay circuits, Pilz PNOZ safety relays that monitor E-stop and light curtain inputs, and Wago 750-series terminal I/O modules that interface legacy 4–20 mA loops with modern Ethernet-based SCADA systems. The KJ1501X1-BC3/12P3935X022 coexists with all of these components within the same cabinet, providing the DeltaV-specific power domain while external DIN-rail supplies handle auxiliary instrumentation loads.

Application in Critical Infrastructure

In upstream oil and gas facilities, the DeltaV DCS platform — powered by modules like the KJ1501X1-BC3/12P3935X022 — manages wellhead pressure control, gas compression sequencing, and emergency shutdown (ESD) coordination. Offshore platforms and onshore gas processing terminals operate in salt-laden, high-humidity atmospheres where power supply module reliability directly determines production uptime. A single power supply failure in an unredundant configuration can trip an entire DeltaV controller node, forcing a process shutdown that may take hours to safely restart.

In coal-fired and combined-cycle power generation plants, DeltaV systems govern boiler combustion control, turbine speed regulation, and auxiliary system interlocks. The power supply module must sustain operation through grid disturbances, generator load swings, and the high-frequency electrical noise generated by large variable frequency drives (VFDs) controlling induced draft fans and boiler feed pumps. The KJ1501X1-BC3/12P3935X022’s EMI-hardened design ensures that these noise sources do not corrupt the DC power rail feeding sensitive DeltaV I/O and controller cards.

Municipal water treatment and wastewater facilities increasingly rely on DeltaV-based control for chlorination dosing, membrane filtration pressure control, and effluent quality monitoring. These facilities often operate in high-humidity pump rooms and outdoor enclosures subject to wide diurnal temperature swings. The KJ1501X1-BC3/12P3935X022’s extended temperature rating and conformal coating make it well-suited for these environments, where standard commercial-grade power supplies would suffer accelerated degradation. In metallurgical plants and steel mills, where arc furnace operations generate extreme electromagnetic disturbances, this module’s robust EMC design provides the isolation necessary to keep DeltaV control systems operating without nuisance resets or data corruption.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to its published specifications within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty applies to both new and refurbished-tested units and is supported by our pre-shipment functional verification process.

Q2: How is the KJ1501X1-BC3/12P3935X022 tested before shipment?
Every unit undergoes a multi-point functional inspection prior to dispatch. Testing includes DC output voltage verification under load, ripple and noise measurement, thermal cycling check, and visual inspection of the PCB, connectors, and housing. Refurbished units additionally undergo extended burn-in testing to screen for latent component failures. A test report is available upon request for quality-critical procurement processes.

Q3: Is this module compatible with all DeltaV system versions?
The KJ1501X1-BC3/12P3935X022 is compatible with DeltaV M-Series and S-Series controller platforms across DeltaV software versions 9 through 15 and later. It is a direct plug-in replacement for existing DeltaV power supply assemblies using the same carrier form factor. No firmware changes or system reconfiguration are required for hot-swap replacement during scheduled or corrective maintenance windows.

Q4: Can long-term supply and replacement support be arranged?
Yes. TOPNLMS maintains standing inventory of DeltaV power supply modules and related DCS components to support long-term maintenance contracts and emergency spare parts programs. For facilities with multi-year maintenance agreements or critical infrastructure obligations, we can arrange reserved stock allocations, priority dispatch commitments, and consignment inventory arrangements. Contact our technical sales team to discuss your site’s specific spare parts strategy.
