Emerson EZ1080-RM-00-100 Replacement/Upgrade Solution

Product Overview

Emerson EZ1080-RM-00-100 Replacement/Upgrade Solution: Seamless Transition for Legacy Vibration Monitoring Systems

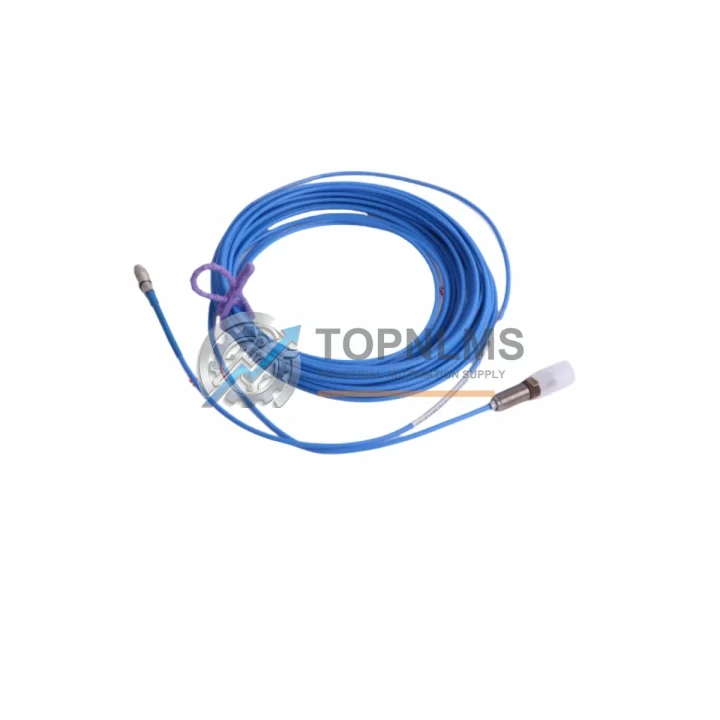

The Emerson EZ1080-RM-00-100 is a high-precision eddy current proximity probe engineered for continuous shaft vibration, radial displacement, and axial position monitoring in critical turbomachinery applications. As legacy Bently Nevada 3300 Series and early 3300 XL installations approach end-of-service life, plant engineers and reliability teams are increasingly seeking a validated, drop-in replacement that preserves existing wiring infrastructure, signal conditioning architecture, and DCS integration — without forcing a full system overhaul.

TOPNLMS supplies the EZ1080-RM-00-100 as a direct replacement and upgrade solution for facilities operating aging proximity probe systems. Whether you are migrating from discontinued 3300/05 probes, retiring first-generation 3300 XL transducer sets, or standardizing your spare parts inventory across multiple turbine trains, this unit delivers the sensitivity, gap voltage linearity, and temperature stability required for API 670-compliant machinery protection.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy proximity probe system to the EZ1080-RM-00-100 rarely involves the probe alone. In most turbomachinery retrofit projects, the probe is replaced as part of a coordinated transducer set upgrade. The Bently Nevada 330130 Extension Cable (1 m, 5 m, or 9 m options) is the most common companion component, connecting the EZ1080 probe to the proximitor without requiring re-routing of existing conduit runs. Where the original 3300/55 Proximitor has drifted out of calibration or reached its service interval, engineers typically upgrade to the Bently Nevada 3300 XL 8mm Proximitor® Sensor simultaneously, ensuring the full transducer chain is recertified as a matched set.

For facilities running System 1 condition monitoring software or integrating into a 3500 Series Machinery Protection System rack, the EZ1080-RM-00-100 feeds directly into existing 3500/42M Proximitor®/Seismic Monitor I/O modules without firmware changes. Plants that have already migrated their protection rack to the 3500/40M Proximitor® Monitor will find the EZ1080 probe equally compatible, as the scale factor and gap voltage specifications are preserved across the EZ1080 product family.

In control cabinet environments where multiple measurement points share a common terminal block, the Bently Nevada 3300/20 Barrier (Zener barrier for hazardous area installations) remains fully compatible with the EZ1080 probe output. For new installations in ATEX or IECEx classified zones, the existing barrier wiring and grounding scheme can be retained without modification. Where signal isolation is required between the proximitor output and the DCS analog input card, a Phoenix Contact MACX MCR signal isolator or equivalent DIN-rail isolator can be inserted without affecting probe linearity.

Facilities upgrading multiple measurement planes simultaneously — for example, replacing both X-Y radial probes and a thrust position probe on a single compressor train — should also evaluate the Bently Nevada 330180 Thrust Probe and 330500 Accelerometer to complete the transducer set under a single purchase order, simplifying incoming inspection and calibration documentation.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the probe?
A: Yes. The EZ1080-RM-00-100 uses the same MIL-spec connector and identical cable impedance as the legacy 3300/05 and 3300 XL probes. Existing conduit runs, junction box terminations, and shield grounding points do not need to be disturbed. Only the probe body and integral cable stub are replaced at the machine end.

Q: Do I need to reconfigure my DCS or safety system after replacement?
A: No reconfiguration is required. The EZ1080 probe outputs the same 200 mV/mil (7.87 V/mm) scale factor as the original transducer. Gap voltage, alarm setpoints, and 4–20 mA transmitter scaling in the 3500 monitor or DCS I/O card remain unchanged.

Q: Is the physical installation footprint identical?
A: Yes. Thread size, probe boss diameter, and overall probe length match the legacy 8 mm Bently Nevada standard. No machining or bracket modification is required. Installation torque specifications are identical.

Q: What communication protocols are affected?
A: None. The EZ1080 is a passive analog probe. All protocol-level communication (Modbus, FOUNDATION Fieldbus, or OPC-UA) occurs at the monitor or DCS layer, which is unaffected by the probe swap.

Q: How do I verify correct installation gap after replacement?
A: Set the probe gap to achieve a static output of −10 VDC to −12 VDC (approximately 1.0–1.5 mm air gap for an 8 mm probe on a steel target). Use the existing proximitor’s DC output test point or a calibrated voltmeter. No special calibration equipment beyond what is already on-site is required.

Q: Can this probe be used in hazardous area (Ex) installations?
A: The EZ1080-RM-00-100 is compatible with existing Zener barrier or galvanic isolator installations. Verify the specific Ex certification markings against your area classification documentation before installation in ATEX/IECEx zones.

Warranty Assurance

Every Emerson EZ1080-RM-00-100 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including gap voltage linearity check, connector integrity inspection, and cable continuity test. Units are shipped in original or equivalent protective packaging with full traceability documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement dispatch within 3 business days of fault confirmation, with return freight covered on a case-by-case basis for verified warranty claims. Our technical support team is available to assist with installation verification, gap setting guidance, and compatibility confirmation before and after shipment.

For time-critical plant shutdowns or planned turnaround windows, TOPNLMS maintains buffer stock of high-demand EZ1080 Series components to support expedited order fulfillment. Contact our sales team to confirm current stock availability and lead time before your maintenance window.

Stock is inspected, tested, and ready to ship from Xiamen. Typical dispatch: 1–3 business days. Global freight options available including DHL Express, FedEx International Priority, and sea freight consolidation for bulk orders.
