Emerson CL6824X1-A2 12P0767X012 Replacement for Fisher DCS

Product Overview

Emerson CL6824X1-A2 12P0767X012 Replacement for Fisher DCS: Smooth Migration from Legacy Analog Input Systems

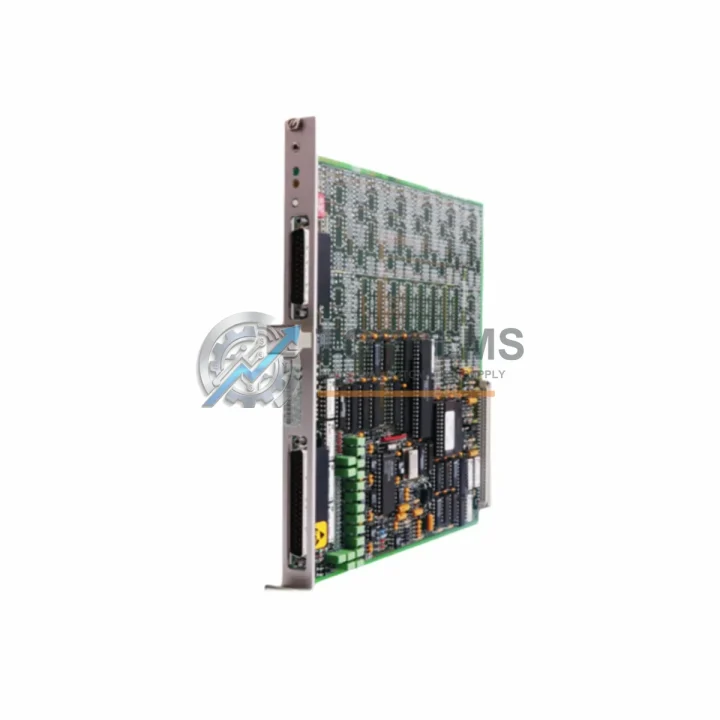

The Emerson Fisher CL6824X1-A2 12P0767X012 is a high-reliability DCS analog input card engineered for seamless drop-in replacement within the Fisher Controls distributed control system platform. As legacy DCS installations age and original analog input modules reach end-of-life or become discontinued, plant engineers and procurement teams face mounting pressure to source verified replacement hardware that preserves existing wiring infrastructure, control logic, and system architecture without triggering a full-scale control system overhaul.

This module is purpose-built for facilities operating Emerson Fisher DCS environments where the original CL6824X1-A2 analog input card has failed, degraded, or been flagged for proactive replacement during a scheduled turnaround. The 12P0767X012 revision designation confirms full backward compatibility with the original rack slot, backplane connector, and field wiring terminations — eliminating the need to re-engineer terminal blocks or rewire field instrument loops.

For sites currently running legacy Fisher PROVOX or RS3 distributed control systems, this analog input module supports a structured migration path. Engineers transitioning from older PROVOX I/O cards or RS3 analog input assemblies will find that the CL6824X1-A2 maintains compatible 4–20 mA signal conditioning, HART pass-through capability, and standard DCS backplane communication protocols, reducing the scope of loop checkout and commissioning work during the cutover window.

When integrating this replacement card into an existing Fisher DCS cabinet, the physical form factor matches the original module slot dimensions, ensuring no modification to the control cabinet enclosure or DIN rail mounting arrangement is required. Power supply compatibility is maintained with standard 24 VDC backplane power distribution, and the module draws within the original power budget — a critical consideration when replacing cards in densely populated I/O racks where power margin is limited.

Sites upgrading from older analog input assemblies to the CL6824X1-A2 should verify that associated components such as the CL6823 series analog output modules, CL7711 communication interface cards, and CL3201 controller modules remain at compatible firmware revisions. In multi-drop HART configurations, the replacement card integrates with existing HART multiplexers and asset management software without requiring reconfiguration of device descriptors or re-commissioning of field transmitters.

For facilities also managing concurrent upgrades to their I/O subsystem, the CL6824X1-A2 is compatible with standard Fisher DCS I/O termination assemblies and marshalling panels. If the site is simultaneously replacing CL6821 digital input modules or CL6822 digital output modules in the same rack, the backplane architecture supports mixed I/O card populations without slot-specific restrictions, simplifying the phased replacement schedule.

Control system integrators performing a broader migration from a legacy PROVOX DCS to a modern Emerson DeltaV platform can use the CL6824X1-A2 as an interim bridge solution, maintaining production continuity on the existing Fisher DCS while the parallel DeltaV system is commissioned. This approach avoids a hard cutover and allows loop-by-loop migration, with the analog input card continuing to serve active process loops until each loop is transferred to the new DeltaV M-Series I/O or DeltaV Electronic Marshalling (CHARM) infrastructure.

For sites where the original CL6824X1-A2 12P0767X012 module is no longer available through the OEM channel, TOPNLMS maintains verified stock sourced from authorized distributors and decommissioned plant inventories. Each unit undergoes functional verification prior to shipment, including analog signal accuracy testing across the full 4–20 mA input range, channel isolation verification, and backplane communication handshake confirmation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Fisher DCS analog input system to a modernized control architecture requires more than a single card replacement. During the upgrade process, procurement teams typically source a coordinated set of components to ensure system-wide compatibility and minimize the risk of secondary failures during the cutover window.

When replacing the CL6824X1-A2 analog input card, sites frequently also address aging CL6823X1-A2 analog output modules installed in adjacent rack slots, as these cards share the same backplane generation and often exhibit similar wear patterns after years of continuous operation. Simultaneously, the CL7711 series communication interface cards — responsible for DCS network connectivity between the I/O subsystem and the controller — should be inspected and replaced if firmware or hardware revisions are mismatched with the new analog input card.

For sites where the controller itself is approaching end-of-life, the CL3201 controller module is the natural companion upgrade, providing a compatible processing platform that supports the full CL6824 I/O family without requiring changes to the existing control strategy or function block configuration. Power distribution within the rack is managed through the CL6001 power supply module, and sites performing a comprehensive rack refresh should verify that the power supply is rated for the updated I/O card population.

Field wiring integrity is equally important during a migration. Many sites take the opportunity to replace aging marshalling panel terminal blocks and signal isolators — particularly where field instruments operate in hazardous areas requiring intrinsic safety barriers or galvanic isolators between the field loop and the DCS analog input card. Replacing these passive components alongside the CL6824X1-A2 ensures that the new card operates within its specified input impedance and signal conditioning parameters from day one.

For engineers who need to reconfigure or verify the replacement card’s channel assignments and calibration offsets, a compatible Fisher DCS programming cable and configuration workstation running the original DCS engineering software are required. TOPNLMS can advise on compatible programming interface options for sites that no longer have active engineering workstation licenses. Finally, for sites transitioning toward a hybrid architecture, DeltaV S-Series I/O cards and CHARM I/O modules represent the forward migration path, and the CL6824X1-A2 replacement provides the operational continuity needed while the parallel DeltaV infrastructure is staged and commissioned.

Retrofit Guidance FAQ

Q: Can I replace the CL6824X1-A2 12P0767X012 without rewiring field instrument loops?
A: Yes. The replacement module maintains the same terminal block pinout and field wiring interface as the original. No rewiring of 4–20 mA loops or HART instrument connections is required. Verify that cable shield grounding practices are maintained per the original installation documentation.

Q: Will the replacement card require changes to my DCS control strategy or function block configuration?
A: No. The CL6824X1-A2 replacement is recognized by the Fisher DCS controller as the same module type. Existing analog input function blocks, scaling parameters, and alarm setpoints are preserved without modification. A channel-by-channel loop check is recommended after installation to confirm signal integrity.

Q: Is HART communication preserved after replacing the analog input card?
A: Yes. The replacement module supports HART pass-through on all analog input channels. Existing HART device configurations, device descriptors, and asset management software connections remain active. No re-commissioning of HART field instruments is required.

Q: Does the replacement card fit the existing rack slot without mechanical modification?
A: Yes. The CL6824X1-A2 12P0767X012 replacement matches the original card’s physical dimensions, backplane connector, and card guide profile. No modification to the control cabinet, rack chassis, or adjacent card slots is required.

Q: What is the recommended procedure for replacing the card in a live DCS environment?
A: Where the DCS architecture supports hot-swap or redundant I/O, the replacement can be performed with minimal process disruption. For non-redundant configurations, coordinate the card swap during a planned maintenance window. Place affected loops in manual mode at the DCS workstation before removing the original card, install the replacement, restore power, and verify analog input readings against field instrument values before returning loops to automatic control.

Q: What if my site is running an older Fisher PROVOX or RS3 system?
A: The CL6824X1-A2 is a Fisher DCS platform module. For PROVOX or RS3 systems, different I/O card families apply. Contact TOPNLMS with your full system model and I/O card part numbers to confirm the correct replacement module for your specific DCS generation.

Warranty Assurance

Every CL6824X1-A2 12P0767X012 analog input card shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers functional defects, signal conditioning failures, backplane communication faults, and any hardware anomalies that prevent the module from performing its specified analog input functions within the Fisher DCS environment.

Prior to shipment, each unit undergoes a structured pre-shipment inspection protocol that includes visual inspection for physical damage, connector integrity verification, analog signal accuracy testing across the full 4–20 mA input range, channel isolation testing, and backplane communication handshake verification using compatible DCS test equipment. Units that do not pass all inspection criteria are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit from verified stock. The replacement process is initiated within one business day of receiving the defective unit and confirming the fault. Customers are not required to wait for OEM repair cycles or extended lead times — replacement units are dispatched from available inventory to minimize plant downtime.

For procurement teams managing spare parts programs, TOPNLMS offers batch purchasing options with extended inspection documentation, including individual unit test reports and serialized traceability records. These documents support site quality management systems and regulatory compliance requirements for critical process control applications.

To place an order, request a quotation, or confirm stock availability for the CL6824X1-A2 12P0767X012, contact the TOPNLMS sales team directly. Lead times for in-stock units are typically 3–5 business days for international shipments, with express options available for urgent plant requirements.
