Emerson A6312/06 Replacement Solution for Ovation DCS

Product Overview

Emerson A6312/06 Replacement Solution for Ovation DCS: Seamless Transition from Legacy Speed Key Architecture

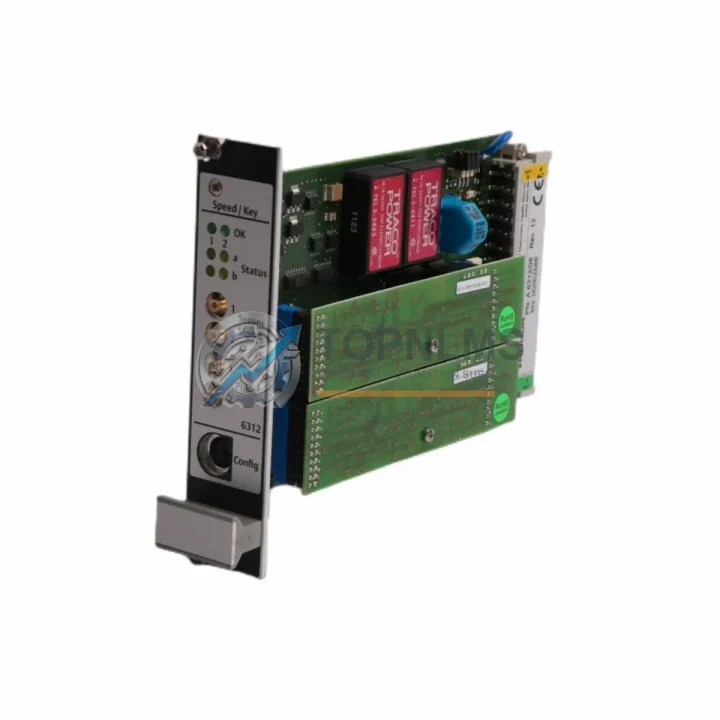

The Emerson A6312/06 is a Speed Key Module designed for the Emerson Ovation Distributed Control System (DCS), widely deployed in power generation, water treatment, and process industries. As the Ovation platform continues to evolve and legacy hardware reaches end-of-life, many facilities are now facing the challenge of sourcing reliable, tested replacements for the A6312/06 to avoid unplanned downtime and maintain system integrity.

TOPNLMS supplies the A6312/06 as a direct replacement and upgrade solution, fully tested and ready to ship from our Xiamen warehouse. Whether you are performing a like-for-like swap on a failed unit, executing a planned DCS modernization project, or building a critical spare inventory, our A6312/06 stock is sourced, inspected, and backed by a 12-month warranty.

This page provides complete technical guidance for engineers and procurement teams managing Ovation DCS retrofit and migration projects — covering wiring compatibility, communication protocol continuity, rack and cabinet space requirements, power supply considerations, and field commissioning best practices.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Ovation DCS migration involving the A6312/06 rarely involves a single module in isolation. In practice, field engineers replacing a Speed Key Module will simultaneously audit adjacent components in the same I/O rack or control cabinet. The following components are commonly addressed during the same maintenance window or modernization project:

The Emerson A6210/01 Analog Input Module and A6220/01 Analog Output Module are frequently found in the same Ovation I/O rack as the A6312/06. When the Speed Key Module is replaced, it is best practice to inspect these analog I/O modules for age-related degradation, particularly if the rack has been in service for more than ten years. Replacing them concurrently minimizes future rack pull-outs and reduces cumulative downtime risk.

The Emerson A6350/01 Digital Input Module and A6360/01 Digital Output Module share the same backplane architecture and are often co-located in the same cabinet. During a Speed Key Module swap, verifying the health of these digital I/O modules — especially their field terminal blocks and wiring harnesses — is a standard commissioning step that prevents callback visits.

Power integrity is critical in Ovation systems. The Emerson A6500 series Power Supply Module provides regulated 24 VDC to the I/O rack. If the A6312/06 failure was preceded by intermittent power events or voltage sags, the power supply module should be tested and potentially replaced as part of the same upgrade scope to eliminate the root cause.

For facilities upgrading their Ovation communication infrastructure alongside the hardware replacement, the Emerson A6110/01 Controller Module and associated Ovation OCR400 Controller are relevant upgrade targets. Migrating to a newer controller generation while replacing the Speed Key Module allows the engineering team to consolidate the project scope and reduce total system downtime.

Field wiring termination is another area of focus. The Emerson A6900 series Terminal Block Assembly and associated marshalling panels are often inspected and refurbished during a Speed Key Module replacement, particularly in older installations where terminal corrosion or loose connections may have contributed to the original fault. Ensuring clean, torqued terminations at the marshalling cabinet is a prerequisite for reliable Speed Key operation after module replacement.

Finally, for sites that require programming cable access during commissioning, the Emerson Ovation Developer Studio (ODS) programming interface and associated serial or Ethernet programming cables must be confirmed compatible with the replacement module’s firmware version. TOPNLMS can advise on firmware compatibility based on your ODS version and site configuration upon request.

Retrofit Guidance FAQ

Q: Can I replace the A6312/06 without modifying existing field wiring?
A: Yes. The A6312/06 replacement uses the same backplane connector and field terminal interface as the original module. Existing field wiring, cable shields, and terminal assignments are retained without modification. No rewiring is required for a like-for-like swap.

Q: Do I need to update my Ovation Developer Studio project after installing the replacement module?
A: In most cases, no. The replacement A6312/06 is recognized by ODS using the same module type definition as the original. However, if your ODS project was configured for a specific firmware revision, you should verify firmware compatibility before going live. TOPNLMS provides firmware version information with each shipment upon request.

Q: Is the A6312/06 compatible with both older and newer Ovation controller generations?
A: The A6312/06 Speed Key Module is designed for the Ovation I/O subsystem and communicates via the Ovation proprietary backplane bus. It is compatible with Ovation controller generations that support the standard I/O rack architecture, including OCR400 and earlier OCR1100 platforms. Confirm your controller firmware version with your Ovation system documentation before installation.

Q: What is the physical installation procedure for the replacement module?
A: The A6312/06 is a card-style module that inserts into a standard Ovation I/O rack slot. Power down the affected rack section (or follow your site’s hot-swap procedure if supported), remove the failed module by releasing the ejector levers, insert the replacement module until the backplane connector is fully seated, and restore power. The module will self-initialize and be recognized by the Ovation controller within the normal scan cycle.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After installation, use Ovation Developer Studio to monitor the module’s diagnostic status in the I/O configuration tree. The Speed Key Module should report a healthy status with no fault codes. Verify that sequence-of-events timestamps are being captured correctly by triggering a known test event and confirming the SOE log entry in the Ovation historian.

Q: Can TOPNLMS supply multiple A6312/06 units for a spare parts inventory program?
A: Yes. TOPNLMS maintains stock of the A6312/06 and can fulfill both single-unit emergency replacement orders and bulk spare parts procurement. Contact our team at [email protected] for volume pricing and lead time confirmation.

Warranty Assurance

Every A6312/06 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol includes functional verification of the module’s backplane interface, internal power regulation, and communication logic to ensure the unit performs correctly upon installation in your Ovation system.

If a module supplied by TOPNLMS fails within the warranty period due to a manufacturing or component defect, we will provide a replacement unit at no additional cost. Our after-sales response team is reachable via email within one business day for warranty claims, technical questions, and RMA processing.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export packaging is designed to protect sensitive electronics during international air and sea freight, with ESD-safe inner packaging and rigid outer cartons.

We ship from Xiamen, China, with DHL, FedEx, and UPS express options available for urgent replacement orders. Standard lead time for in-stock units is 1–3 business days from order confirmation.
