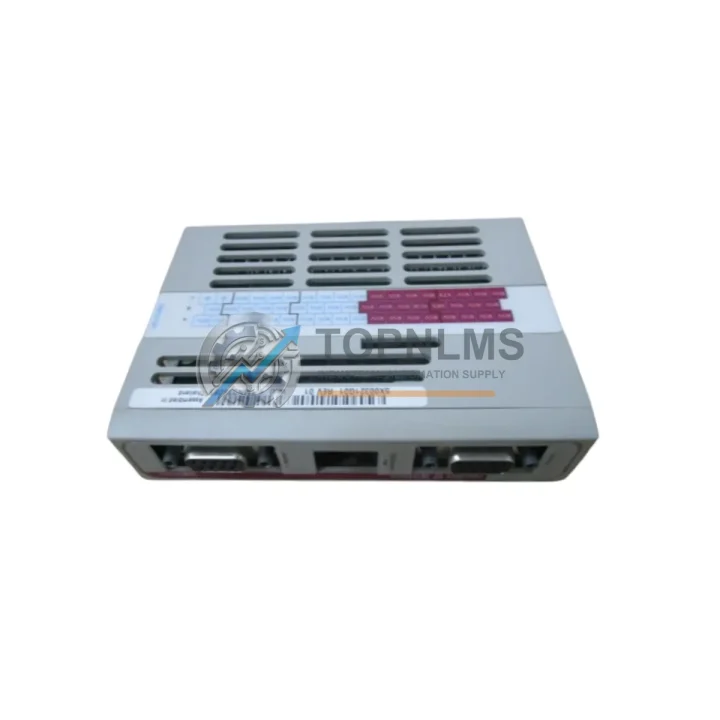

Emerson 5X00321G01 Replacement for Ovation DCS Series

Product Overview

Emerson 5X00321G01 Replacement for Ovation DCS Series: Seamless Migration & Smooth Transition

When your Ovation distributed control system relies on legacy communication infrastructure, a single discontinued or failed Profibus DP interface card can halt an entire production line. The Emerson 5X00321G01 Profibus DP Interface Card is a direct replacement and upgrade solution engineered for engineers and procurement teams managing brownfield DCS modernization projects. Whether you are retiring an aging Ovation 1.x or Ovation 2.x controller node, consolidating I/O racks, or simply replacing a failed card to restore system availability, the 5X00321G01 delivers the wiring compatibility, protocol fidelity, and physical form factor your existing control cabinet demands — without forcing a full system redesign.

The 5X00321G01 slots directly into the standard Ovation controller chassis, maintaining the same backplane connector pinout and card-edge interface as earlier Profibus DP communication modules. Field wiring to your existing Profibus DP segment — including all slave devices such as remote I/O drops, variable frequency drives, valve positioners, and field instruments — remains unchanged. No re-termination, no new cable runs, and no changes to your Profibus segment topology are required. Engineers who have previously worked with the Emerson 5X00108G01 or 5X00119G01 communication cards will find the 5X00321G01 a familiar and straightforward replacement, with the same GSD file structure and Profibus DP Class 1 master behavior.

From a software and programming perspective, the 5X00321G01 is recognized natively by the Ovation Developer Studio engineering workstation. Existing control strategies, function block diagrams, and I/O assignments do not require modification. The card’s firmware is compatible with Ovation system software versions commonly deployed across power generation, refining, and chemical processing facilities. If your site is running an older Ovation release and you are simultaneously upgrading to a newer Ovation controller module such as the 5X00070G01 or 5X00095G01, the 5X00321G01 can be integrated into the updated controller node without requiring a parallel Profibus master reconfiguration.

Physical installation is equally straightforward. The card occupies a single slot in the Ovation I/O chassis or controller enclosure, consistent with the standard Ovation module form factor. No additional mounting hardware, DIN rail adapters, or panel cutouts are needed. Power draw is supplied entirely through the backplane, eliminating the need for external 24 VDC wiring to the card itself. For sites where control cabinet space is constrained — a common challenge in retrofit projects where new Ovation nodes must coexist with legacy Westinghouse WDPF or Bailey INFI 90 equipment — this compact, self-powered design is a significant advantage.

Communication protocol compatibility is a critical consideration in any DCS migration. The 5X00321G01 supports the full Profibus DP V0 and V1 specification, enabling cyclic and acyclic data exchange with all standard Profibus DP slave devices. Sites that have deployed Profibus PA field instruments through a DP/PA coupler or link device will find that the 5X00321G01 maintains full compatibility with these segment architectures. Engineers migrating from older Profibus FMS-based systems should note that the 5X00321G01 operates exclusively as a Profibus DP master; any FMS-specific slave devices will require a protocol gateway or replacement with DP-compatible equivalents. For sites also managing HART-enabled field devices alongside Profibus, the Emerson 5X00321G02 variant or a dedicated HART multiplexer module may be evaluated as a complementary component.

Procurement teams managing spare parts inventories for Ovation DCS installations will recognize the 5X00321G01 as a high-priority stocking item. A single failed Profibus DP interface card can isolate an entire remote I/O drop or field device segment, triggering unplanned shutdowns. Maintaining at least one verified replacement unit on the shelf — alongside critical companion modules such as the Ovation 5X00106G01 power supply module, 5X00321G03 communication interface variants, and the 1X00024H01 termination panel — is standard practice for reliability-focused maintenance programs. Our inventory is tested, serialized, and shipped with full documentation to support your incoming inspection process.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Ovation DCS migration rarely involves a single module in isolation. When replacing the 5X00321G01 Profibus DP Interface Card, engineers typically evaluate the surrounding system architecture to ensure all interdependent components are current and serviceable. The 5X00106G01 Ovation power supply module is a frequent co-replacement item, as aging power supplies in the same chassis often exhibit degraded output regulation that can cause intermittent communication faults on the Profibus segment. Similarly, the 1X00024H01 termination panel and associated field terminal assemblies should be inspected for corrosion or loose terminations before commissioning the new interface card.

For sites expanding their Profibus DP network as part of the migration, the addition of a Profibus repeater or optical link module may be required to extend segment length or isolate electrically noisy field device drops. Engineers integrating the 5X00321G01 into a modernized Ovation controller node alongside a new 5X00070G01 or 5X00095G01 controller module should verify that the chassis firmware and backplane revision are compatible with all installed cards before powering up the updated node. The Ovation 5X00321G03 variant, which supports additional diagnostic features, may also be evaluated if enhanced Profibus segment monitoring is a project requirement.

For facilities managing a mixed-vendor control environment — for example, sites where Emerson Ovation DCS coexists with Allen-Bradley ControlLogix PLCs or Siemens S7-400 controllers — a Profibus DP gateway or protocol converter may be required to bridge communication between systems. In these architectures, the 5X00321G01 continues to serve as the Ovation-side Profibus master, while the gateway handles cross-platform data exchange. Our team can advise on compatible gateway options and assist with bill-of-materials development for complex multi-vendor retrofit projects.

Retrofit Guidance FAQ

Q: Do I need to re-terminate field wiring when replacing the old Profibus DP interface card with the 5X00321G01?
A: No. The 5X00321G01 uses the same Profibus DP DB9 or terminal block field connector as legacy Ovation Profibus interface cards. Existing field cable shielding, termination resistors, and segment topology remain unchanged.

Q: Will my existing Ovation control strategies and function block diagrams require modification?
A: No modification is required. The 5X00321G01 is recognized by Ovation Developer Studio using the same module type identifier as its predecessors. Existing I/O assignments, tag databases, and control logic are fully preserved.

Q: Is the 5X00321G01 compatible with Profibus DP V1 acyclic services used by some intelligent field devices?
A: Yes. The 5X00321G01 supports both Profibus DP V0 cyclic data exchange and V1 acyclic services, enabling parameter read/write access to intelligent slave devices such as smart valve positioners and variable speed drives.

Q: What is the physical installation procedure?
A: Power down the affected controller node following your site’s lockout/tagout procedure. Remove the failed card from its chassis slot. Insert the 5X00321G01 into the same slot, ensuring the card edge is fully seated. Restore power and verify Profibus segment status in Ovation Developer Studio. Total installation time is typically under 30 minutes for a trained technician.

Q: Can the 5X00321G01 be used in a hot-standby or redundant Ovation controller configuration?
A: The 5X00321G01 is designed for standard (non-redundant) Profibus DP master applications. For redundant Profibus DP master configurations, consult the Ovation system architecture documentation to confirm the appropriate module variant for your redundancy scheme.

Q: How do I verify the card is functioning correctly after installation?
A: After installation, use Ovation Developer Studio to perform a Profibus segment scan. All previously configured slave devices should appear online with green status indicators. Review the Ovation system event log for any communication fault alarms. Our technical team is available to provide remote commissioning support if required.

Warranty Assurance

Every Emerson 5X00321G01 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point outgoing inspection that includes visual examination, connector integrity verification, and functional bench testing where applicable. Units are packaged in anti-static ESD-safe materials with foam cushioning to prevent transit damage, and shipped with a serialized packing list and inspection record for your incoming quality documentation.

In the event of a warranty claim, our after-sales response team targets initial acknowledgment within 24 business hours. Replacement units are dispatched from our Xiamen warehouse, with express international shipping options available to minimize your site downtime. We support warranty claims with photographic evidence review and, where required, return merchandise authorization (RMA) processing. Our goal is to ensure that every procurement decision made through TOPNLMS is backed by reliable post-sale support — not just a competitive price.

For procurement teams managing approved vendor lists (AVL) or supplier qualification requirements, we can provide company registration documentation, product test reports, and references from existing industrial customers upon request. We understand that B2B industrial procurement involves more than a transaction — it involves trust, traceability, and accountability at every stage of the supply chain.
