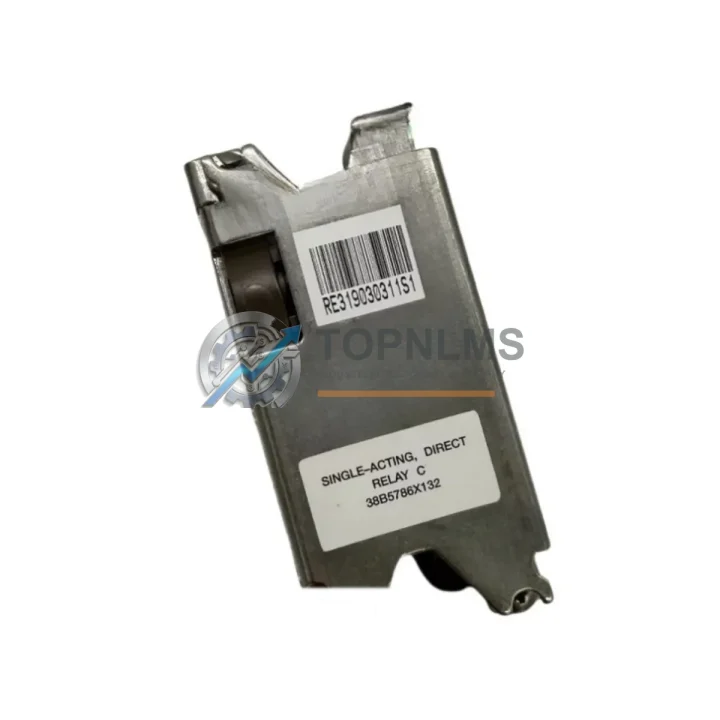

Emerson 38B5786X132 Ruggedized Pneumatic Relay for Harsh Environments

Product Overview

Emerson 38B5786X132 Ruggedized Pneumatic Relay for Harsh Environments

The Emerson 38B5786X132 is a direct-acting pilot amplifier and pneumatic relay engineered for continuous, reliable operation in the most demanding industrial environments. Designed as a precision component within the Fisher 3582 and Fisher 3610 positioner series, this module delivers stable, repeatable pneumatic signal amplification even under conditions of extreme temperature fluctuation, high humidity, pervasive dust, mechanical vibration, and electromagnetic interference. For process engineers and procurement specialists sourcing critical spare parts for DCS-integrated control loops, the 38B5786X132 represents a proven, drop-in replacement that restores positioner performance without system reconfiguration or extended downtime.

In heavy industrial facilities — including oil refineries, natural gas processing plants, coal-fired and combined-cycle power stations, water treatment infrastructure, metallurgical smelters, and continuous mining operations — pneumatic positioners are the last line of mechanical control between a digital command signal and a physical valve actuator. The 38B5786X132 amplifies the low-volume pilot signal from the positioner’s flapper-nozzle assembly into a high-volume output capable of driving large actuator diaphragms with speed and precision. Its ruggedized internal geometry resists particulate ingress and moisture condensation, maintaining calibrated output even after years of field service in uncontrolled ambient conditions.

Rugged Specifications Table

Comprehensive Protection Solutions

The 38B5786X132 pneumatic relay does not operate in isolation — it is one critical node within a broader control architecture that must function cohesively under field stress. In a typical DCS-managed control loop, the Fisher 3582 positioner receives a 3–15 psig or 4–20 mA command signal from a controller output card, such as those found in the Emerson DeltaV MD Plus Controller or the Fisher DVC6200 digital valve controller. The 38B5786X132 amplifies the internal pilot signal to drive the actuator diaphragm, while the positioner’s feedback linkage closes the position loop. When this relay degrades — due to seat wear, diaphragm fatigue, or contamination — the entire valve response becomes sluggish or oscillatory, destabilizing the process loop.

To maintain system integrity, the 38B5786X132 is typically stocked alongside complementary components. The Fisher 3582 Positioner Repair Kit (including flapper, nozzle, and diaphragm sub-assemblies) addresses the upstream pilot stage, while the Emerson 1078338-A Actuator Diaphragm covers the downstream pneumatic actuator. In hazardous-area installations classified under IEC 60079 or NEC Article 500, the positioner assembly may be paired with an Emerson Fisher 4320 wireless position monitor for non-intrusive valve diagnostics without breaking the pressure boundary. For instrument air supply conditioning, an Emerson Fisher 67CFR filter regulator is commonly installed upstream to protect the relay from moisture and particulate contamination — extending service intervals significantly.

In multi-loop control cabinets, the positioner signal chain interfaces with Emerson DeltaV S-series I/O modules for analog output and HART pass-through, and with Emerson AMS Device Manager for predictive maintenance scheduling. Where safety instrumented systems (SIS) are deployed per IEC 61511, the valve assembly may be integrated with a Fisher FIELDVUE DVC6200 SIS digital valve controller to achieve SIL 2 or SIL 3 loop certification. Across all these configurations, the 38B5786X132 relay remains the mechanical heart of the pneumatic amplification stage — a component whose reliability directly determines whether the safety loop can achieve its required probability of failure on demand (PFD).

Application in Critical Infrastructure

In upstream oil and gas operations, the Fisher 3582 positioner equipped with the 38B5786X132 relay controls wellhead choke valves, separator level control valves, and gas lift injection valves. These applications demand zero-drift performance across ambient temperature swings of 60°C or more between day and night cycles in desert or arctic field conditions. The relay’s direct-acting design ensures that a loss of instrument air results in a predictable fail-safe valve position, consistent with process hazard analysis (PHA) requirements.

In coal-fired and combined-cycle power generation, the 38B5786X132 is deployed on boiler feedwater control valves, attemperator spray valves, and turbine bypass valves — applications where millisecond-level response and zero hysteresis are mandatory to prevent thermal shock or pressure excursions. The relay’s high-flow capacity ensures that large-bore actuators respond without lag even during rapid load-following events.

In municipal and industrial water treatment facilities, the relay controls chemical dosing valves, filter backwash valves, and effluent discharge control valves in environments characterized by high ambient humidity, chlorine vapor, and biological fouling. Its sealed body construction resists corrosive atmospheric conditions that would rapidly degrade unprotected pneumatic components.

In metallurgical and smelting operations, the 38B5786X132 operates in the presence of radiant heat, metal dust, and strong electromagnetic fields generated by arc furnaces and induction heating equipment. The relay’s passive pneumatic design makes it inherently immune to EMI — a critical advantage in environments where electronic sensors and transmitters require extensive shielding.

Security & Quality FAQ

Q1: What warranty coverage is provided for the Emerson 38B5786X132?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional inspection including pneumatic leak testing, relay seat integrity verification, and dimensional conformance check against OEM specifications. Warranty claims are supported with replacement or full refund at our discretion.

Q2: Is this relay compatible with Fisher 3582i and 3610J positioner variants?
Yes. The 38B5786X132 is dimensionally and functionally compatible with the Fisher 3582, 3582i, 3582NS, 3610, and 3610J positioner families. It is a direct-acting relay and should not be substituted in reverse-acting positioner configurations without engineering review. If you are uncertain about compatibility with your specific positioner suffix, contact our technical team with your positioner nameplate data.

Q3: How is the unit tested before shipment?
Each 38B5786X132 unit is individually bench-tested for pneumatic flow capacity, seat leakage (per ANSI/FCI 70-2 Class IV criteria), and mechanical integrity before packaging. Units are shipped in anti-static, moisture-barrier packaging with desiccant to prevent transit damage. A test report is available upon request for critical or SIS-classified applications.

Q4: Can TOPNLMS support long-term or recurring supply of this part?
Yes. TOPNLMS maintains standing inventory of the 38B5786X132 and related Fisher positioner components to support planned maintenance shutdowns, turnaround projects, and emergency breakdowns. We offer blanket purchase order arrangements for customers with recurring demand, and can provide advance shipment notification (ASN) and material traceability documentation for regulated industries. Contact us to discuss your annual consumption requirements and preferred delivery schedule.
