Emerson 1X01046H01L Original Industrial Spare Ovation Compatible

Product Overview

Emerson 1X01046H01L Original Industrial Spare Ovation Compatible: System Stability & Industrial Spare Parts Maintenance Value

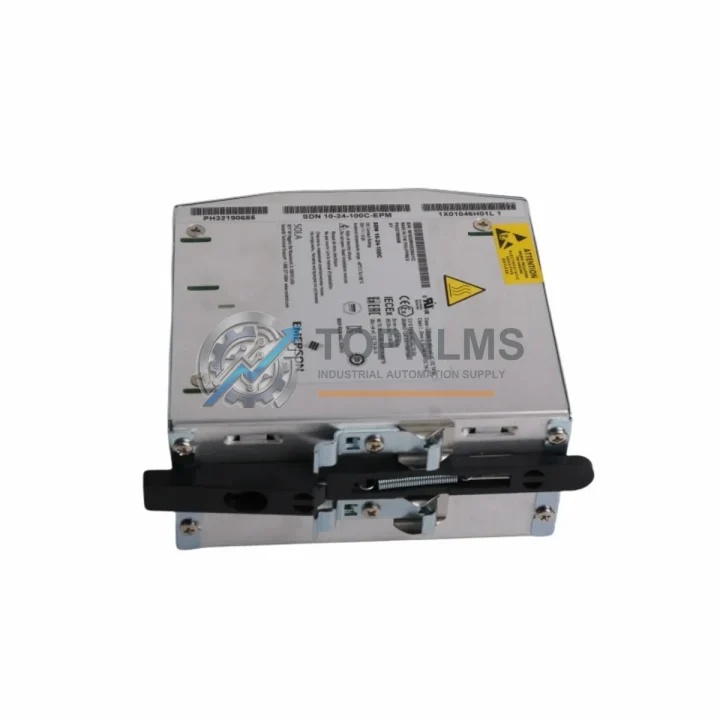

The Emerson 1X01046H01L is an original power supply module designed for the Emerson Ovation Distributed Control System (DCS) platform — one of the most widely deployed process automation architectures in power generation, oil & gas, and chemical processing facilities worldwide. When a power supply module fails or degrades in an Ovation DCS cabinet, the consequences extend far beyond a single loop: the entire controller node loses regulated DC power, triggering cascading faults across I/O modules, communication buses, and operator workstations. Sourcing a verified original 1X01046H01L replacement is therefore not a procurement decision — it is a system stability decision.

At TOPNLMS, every 1X01046H01L unit is sourced from authorized industrial channels, subjected to pre-shipment functional testing, and dispatched with a 12-month warranty. Our inventory is maintained specifically for maintenance engineers and procurement teams who cannot afford to wait weeks for factory lead times when a critical DCS node goes dark.

Critical Technical Specs Table

Preventive Maintenance Strategy

A power supply module does not fail in isolation. In an Ovation DCS cabinet, the 1X01046H01L feeds regulated power to a tightly coupled ecosystem of modules. During any planned shutdown or corrective maintenance visit where this module is being replaced, experienced maintenance engineers treat the event as an opportunity to audit the entire power distribution chain and adjacent control hardware.

Begin with the Ovation controller module (such as the OCR400 or OCR1100 series) seated in the same rack — if the power supply has been running in a degraded state, the controller may have logged transient undervoltage events that warrant a firmware log review or module swap. Simultaneously, inspect the Ovation I/O modules (digital input, digital output, and analog input cards) for signs of corrosion on the backplane connectors, which are often the first casualty of a fluctuating supply rail.

The Ovation communication module — responsible for Ethernet or serial links between the DCS node and the operator workstation — should be checked for link-loss event logs, as intermittent power can corrupt its internal buffers. If the cabinet includes a redundant power supply module (a second 1X01046H01L or equivalent), verify that the redundancy switchover circuit is functional; a failed primary with a degraded secondary is a single point of failure waiting to happen.

Further along the maintenance checklist, examine the terminal blocks and field wiring termination assemblies within the cabinet. Loose or oxidized terminations at the 24 VDC distribution bus can mimic power supply faults and are frequently overlooked. The backplane bus board itself should be visually inspected for burn marks or delamination near the power connector pins.

For facilities running aging Ovation systems alongside newer control infrastructure, it is also prudent to review the condition of the signal isolator modules and relay output modules in the same cabinet. These components operate continuously under thermal stress and are statistically likely to require replacement within the same maintenance window as a power supply. Stocking a fuse module or circuit protection assembly for the 24 VDC distribution rail is equally advisable — a blown protection device is often the root cause of what initially presents as a power supply failure.

Finally, if the Ovation node interfaces with an HMI workstation or operator console, confirm that the communication link is restored and stable after the module swap before returning the unit to service. A structured post-replacement functional test — covering analog loop integrity, digital I/O scan, and alarm annunciation — is the professional standard for Ovation DCS maintenance and should be documented in the plant’s CMMS.

Strategic Replacement Solutions

The Emerson 1X01046H01L was engineered for long service life, but Ovation DCS installations that have been in continuous operation for 10–20 years are now entering the phase where original power supply modules reach end of reliable service life. The challenge for maintenance teams is that Emerson’s factory lead times for new modules can extend to 8–16 weeks, and many plants have already exhausted their original spare stock.

TOPNLMS maintains ready inventory of the 1X01046H01L specifically to bridge this gap. Because the module is a direct slot-in replacement — requiring no changes to the Ovation system configuration, no firmware updates, and no recalibration of field instruments — the replacement procedure can be completed during a planned outage window of less than two hours by a qualified DCS technician. This dramatically reduces the risk of extended unplanned downtime compared to waiting for a factory order.

For plants managing the transition from legacy Ovation hardware to newer Emerson DeltaV or third-party DCS platforms, the 1X01046H01L serves as a cost-effective bridge solution: it keeps the existing Ovation node operational and stable while the broader migration project is planned and budgeted, avoiding the capital expenditure of an emergency full-system replacement driven by a single failed module.

Our pre-shipment testing protocol verifies output voltage regulation, ripple suppression, and thermal performance under load before any unit leaves our facility. Combined with the 12-month warranty, this gives procurement teams and plant managers the confidence to approve the purchase without requiring an on-site vendor inspection.
