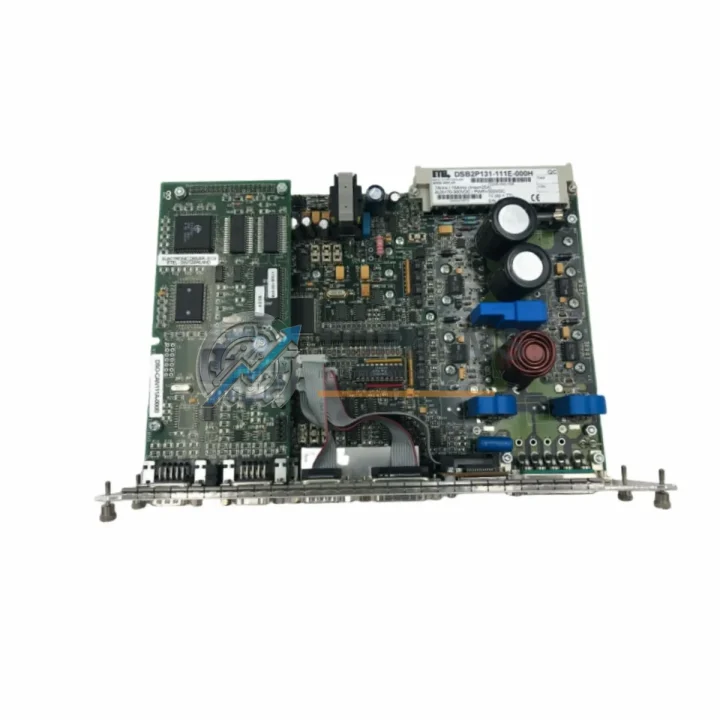

Eltromat CP-AQA.7 CP-AQ-BAS.2-1 Ruggedized Register Control Board: Industrial Resilience for Harsh Print Environments

The Eltromat CP-AQA.7 / CP-AQ-BAS.2-1 is a ruggedized print register control board engineered for continuous, fault-tolerant operation in demanding industrial printing and converting environments. Designed as the core intelligence of the CP-AQ Series register control system, this board delivers sub-millisecond register correction response, stable closed-loop feedback, and robust electromagnetic interference (EMI) resistance — making it the preferred choice for high-speed web offset, flexographic, gravure, and label printing lines where unplanned downtime is not an option.

In facilities where ambient temperatures fluctuate, humidity levels are elevated, airborne paper dust and ink mist are constant, and high-current drive systems generate significant electrical noise, the CP-AQA.7 / CP-AQ-BAS.2-1 maintains precise register accuracy without signal degradation. Its hardened PCB design, conformal coating, and shielded signal pathways ensure long-term reliability even when installed in close proximity to servo drives, variable frequency drives (VFDs), and high-power industrial power supplies — all of which are common sources of radiated and conducted EMI on modern printing lines.

Rugged Specifications Table

Comprehensive Protection Solutions

The CP-AQA.7 / CP-AQ-BAS.2-1 does not operate in isolation — it is the command center of a tightly integrated register control architecture. On a typical high-speed printing line, it works in concert with the Eltromat CP-AQ sensor head and CP-AQ mark reader to acquire real-time register deviation data, then issues correction signals to the Eltromat servo amplifier module and associated servo motor drive units that physically reposition the print cylinders. The board’s signal integrity depends on clean power delivery from a dedicated 24 VDC industrial power supply with sufficient hold-up time to ride through momentary line disturbances — a critical consideration in facilities where large press motors and VFDs cause voltage sags on startup.

For installations requiring network-level diagnostics or integration with plant-wide MES or SCADA systems, the CP-AQ control board interfaces with Eltromat communication gateway modules that bridge the proprietary CP-AQ bus to standard industrial protocols. Upstream, the board receives web tension and speed reference data from dancer roll tension controllers and encoder feedback modules, ensuring that register corrections are always synchronized with actual web speed rather than nominal setpoints. In multi-color printing lines, each print unit typically hosts its own CP-AQ board, with all units coordinated through a master register controller or line synchronization module — making the availability of a reliable spare CP-AQA.7 / CP-AQ-BAS.2-1 board essential for maintaining full-color production capability.

Control cabinet integrity is equally important. The board is typically housed alongside terminal blocks, relay output modules, and safety relay units within a sealed, climate-controlled enclosure. Proper grounding of the cabinet, use of shielded cables, and installation of surge protection devices on incoming signal lines are all recommended practices to maximize the service life of the CP-AQA.7 / CP-AQ-BAS.2-1 in high-EMI press environments.

Application in Critical Infrastructure

While the CP-AQA.7 / CP-AQ-BAS.2-1 is purpose-built for the printing and converting industry, its underlying design philosophy — ruggedized electronics, deterministic control loops, and fault-tolerant architecture — aligns with the demands of broader industrial automation sectors. In packaging and label manufacturing facilities, where continuous 24/7 production schedules leave no window for unplanned maintenance, a failed register control board can halt an entire converting line and trigger costly material waste. Having a verified, in-stock replacement board available is a standard risk mitigation practice for plant maintenance teams.

In flexible packaging plants serving the food, pharmaceutical, and consumer goods sectors, print register accuracy directly impacts product compliance and brand quality. A misregistered label or package can trigger regulatory non-conformance, product recalls, or customer chargebacks — consequences that far exceed the cost of maintaining a spare CP-AQA.7 / CP-AQ-BAS.2-1 in the maintenance storeroom. Similarly, in security printing and banknote production environments, where multi-layer print registration tolerances are measured in microns, the reliability of the register control board is a non-negotiable production parameter.

In corrugated board and carton manufacturing lines, where heavy substrates, high press speeds, and aggressive ink systems create demanding mechanical and thermal conditions, the CP-AQ Series control board’s robust construction ensures consistent performance over extended production runs. Maintenance engineers in these facilities routinely stock critical electronic spare parts — including register control boards, servo drive cards, and I/O modules — to minimize mean time to repair (MTTR) and protect overall equipment effectiveness (OEE) targets.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the CP-AQA.7 / CP-AQ-BAS.2-1 fails to perform its specified register control functions within the warranty period, TOPNLMS will provide a replacement or full refund. The warranty period begins from the date of confirmed delivery. Damage resulting from incorrect installation, overvoltage events, or unauthorized modification is excluded.

Q2: How is the board tested before shipment?
Every CP-AQA.7 / CP-AQ-BAS.2-1 unit undergoes a multi-stage pre-shipment inspection: visual inspection for PCB damage, component integrity check, functional power-on test, and signal output verification. Refurbished units additionally undergo a full cleaning, re-soldering of suspect joints, and extended burn-in testing. Each unit ships with an inspection record. ESD-safe anti-static packaging and foam-lined cartons are used to protect the board during international transit.

Q3: Is this board compatible with my existing Eltromat CP-AQ system?
The CP-AQA.7 / CP-AQ-BAS.2-1 is designed as a direct OEM-equivalent replacement for Eltromat CP-AQ Series register control systems. It is compatible with the standard CP-AQ bus architecture and interfaces with Eltromat sensor heads, servo amplifiers, and communication modules without requiring firmware modification in most configurations. If you are unsure about compatibility with a specific press model or CP-AQ system revision, please contact our technical team with your press make, model, and existing board part number before ordering.

Q4: Can you support long-term or repeat supply for maintenance programs?
Yes. TOPNLMS specializes in sourcing and stocking industrial automation spare parts for long-term maintenance programs. We can provide scheduled supply agreements, reserved stock arrangements, and priority fulfillment for customers with ongoing maintenance requirements. For OEM-discontinued or hard-to-source boards like the CP-AQA.7 / CP-AQ-BAS.2-1, we maintain dedicated inventory to support customers through extended equipment lifecycles. Contact us to discuss a tailored supply arrangement for your facility.
