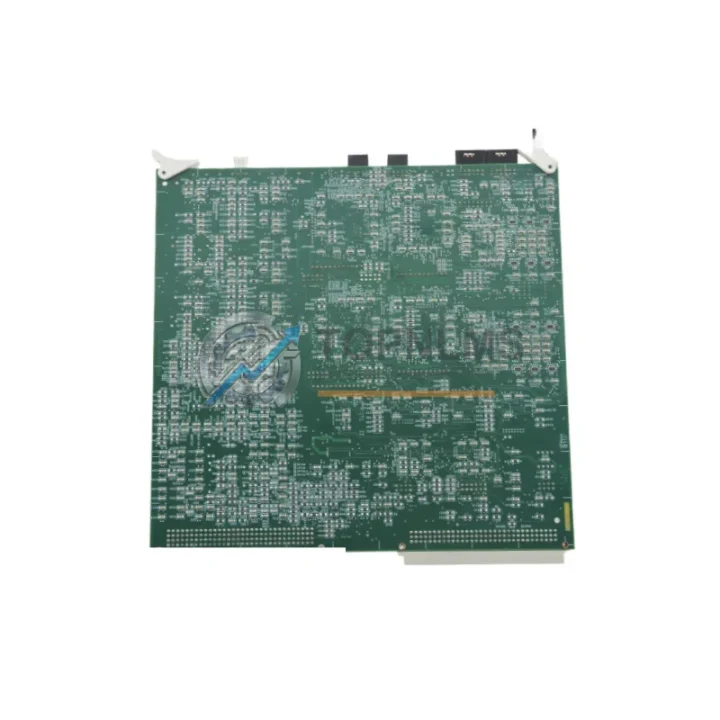

Elmo STEPNET PLUS 800-1810 BD 148484 Ruggedized Servo Module

Product Overview

Elmo STEPNET PLUS 800-1810 BD 148484 Ruggedized Servo Drive Module for Harsh Industrial Environments

The Elmo Motion Control STEPNET PLUS 800-1810 Controller BD 148484 paired with the Signal Conditioner V.E. TERM CKA 145958 represents a precision-engineered servo drive PCB assembly designed to deliver uncompromising performance in the most demanding industrial environments. Whether deployed in high-temperature steel mills, dust-laden mining conveyors, vibration-intensive press lines, or EMI-saturated power generation facilities, this ruggedized controller board maintains servo loop integrity and motion accuracy where lesser components fail.

Built on Elmo’s proven STEPNET PLUS platform, the BD 148484 controller board manages high-frequency PWM switching, current regulation, and encoder feedback processing with exceptional noise immunity. The CKA 145958 signal conditioner module further isolates and conditions analog and digital I/O signals, ensuring clean command transmission even in environments with severe electromagnetic interference from variable frequency drives (VFDs), high-current bus bars, and inductive motor loads operating in close proximity.

Rugged Specifications Table

Comprehensive Protection Solutions

In a modern servo-driven machine, the BD 148484 controller board does not operate in isolation — it is the nerve center of a tightly integrated motion control architecture. On the power side, a reliable Elmo STEPNET PLUS DC bus capacitor bank and a compatible regenerative braking resistor assembly absorb back-EMF energy during rapid deceleration cycles, protecting the controller board from voltage spikes that could corrupt firmware or damage gate driver circuits. Upstream, a properly rated industrial EMC line filter and DC choke suppress conducted emissions from the mains supply, ensuring the BD 148484 receives clean power regardless of what other high-current loads — such as Siemens SINAMICS or ABB ACS series variable frequency drives — are sharing the same distribution panel.

On the feedback and I/O side, the CKA 145958 signal conditioner works in tandem with high-resolution incremental encoders and resolver-to-digital converter (RDC) modules to deliver accurate position data to the servo loop. In multi-axis gantry or robotic systems, the BD 148484 communicates with a master motion controller — such as an Elmo Gold Maestro multi-axis controller or a third-party EtherCAT master PLC — via high-speed digital bus, enabling synchronized coordinated motion across multiple servo axes. Safety-critical applications additionally integrate STO (Safe Torque Off) safety relay modules and dual-channel safety I/O terminals to meet SIL 2 / PLd machine safety requirements without bypassing the servo drive’s control loop.

For cabinet-level thermal management, pairing the STEPNET PLUS drive with a cabinet cooling unit or heat exchanger ensures the BD 148484 operates well within its thermal envelope even in ambient temperatures approaching 45°C — common in foundry control rooms and outdoor electrical enclosures in tropical climates. DIN rail terminal blocks and shielded servo motor cables complete the installation, minimizing ground loops and radiated emissions that could otherwise introduce noise into the CKA 145958 signal conditioner’s analog input channels.

Application in Critical Infrastructure

The STEPNET PLUS 800-1810 platform — and by extension the BD 148484 / CKA 145958 PCB assembly — has earned its place in critical infrastructure applications where unplanned downtime carries severe operational and financial consequences.

In oil and gas upstream and midstream facilities, servo-driven valve actuators and pipeline inspection robots rely on STEPNET PLUS drives to maintain precise positional control in environments saturated with hydrocarbon vapors, H₂S, and extreme temperature swings between day and night cycles. The BD 148484’s robust current regulation prevents nuisance trips caused by inrush currents during cold-start conditions.

In mining and mineral processing, servo drives control conveyor positioning systems, drill feed mechanisms, and ore sorting equipment. Vibration levels from blasting operations and heavy rotating machinery demand PCB assemblies with conformal coating and robust solder joint integrity — characteristics inherent to the STEPNET PLUS design philosophy.

In power generation and grid infrastructure, servo-driven turbine governor actuators and transformer tap changers require sub-millisecond response times and zero tolerance for control signal corruption. The CKA 145958 signal conditioner’s isolation barrier prevents ground potential differences — often hundreds of millivolts in large power plants — from introducing offset errors into the servo command signal.

In water and wastewater treatment, servo-driven pump control and valve positioning systems operate continuously for months without maintenance windows. The 12-month warranty and TOPNLMS’s commitment to pre-shipment functional testing provide plant engineers with the confidence to specify the BD 148484 as a direct replacement for failed units without requiring on-site Elmo service engineers.

In metallurgy and steel production, rolling mill servo drives endure extreme thermal cycling, heavy vibration, and aggressive electromagnetic environments from large DC motor drives and induction furnaces. The STEPNET PLUS platform’s high-bandwidth current loop and the signal conditioning capability of the CKA 145958 make it a proven choice for tension control and thickness regulation in cold and hot rolling applications.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects, component failures, and functional anomalies present at the time of shipment or arising from normal operating conditions within the warranty period. To initiate a claim, contact TOPNLMS at [email protected] with your order number and a description of the fault. We will arrange return shipping, perform root-cause analysis, and provide a replacement or repaired unit within an agreed lead time.

Q2: How is each BD 148484 / CKA 145958 assembly tested before shipment?
Every unit undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, power-on functional test verifying control board initialization and communication, signal conditioner I/O channel verification, and a burn-in cycle to screen for early-life component failures. A test report is available upon request for quality-critical procurement processes.

Q3: Is this PCB assembly compatible with all STEPNET PLUS 800-1810 drive chassis variants?
The BD 148484 controller board and CKA 145958 signal conditioner are designed specifically for the Elmo STEPNET PLUS 800-1810 drive platform. Compatibility with adjacent STEPNET PLUS variants (e.g., 400-1810 or 800-2510) depends on firmware revision and hardware revision level. TOPNLMS technical staff can cross-reference your existing drive’s serial number and revision markings to confirm compatibility before order placement — contact us at +86 18359293191.

Q4: Can TOPNLMS guarantee long-term supply continuity for this spare part?
Yes. TOPNLMS maintains a dedicated inventory of Elmo Motion Control spare parts and PCB assemblies, including the BD 148484 and CKA 145958, to support customers with long-lifecycle machine fleets. For customers requiring guaranteed stock reservation for planned maintenance shutdowns or multi-year service contracts, we offer blanket order arrangements with fixed pricing and priority allocation. Contact our procurement team to discuss your specific requirements.
