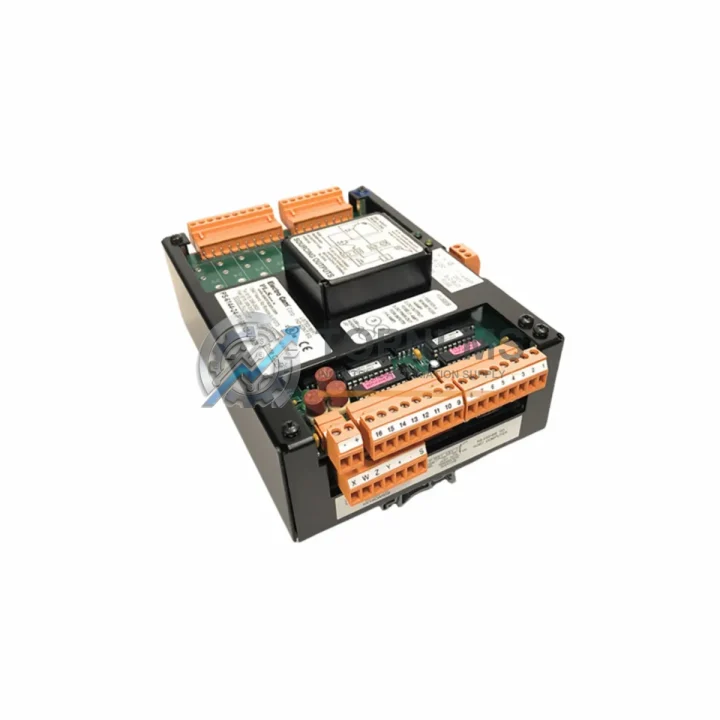

ELECTRO PS-6144-24-P16M09 Ruggedized Output Module

Product Overview

ELECTRO PS-6144-24-P16M09 Ruggedized 16-Point 24VDC Transistor Output Module for Harsh Industrial Environments

The ELECTRO PS-6144-24-P16M09 is a high-density, 16-point 24VDC transistor output module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed as part of the proven PS-6144 Series platform, this module delivers deterministic digital output control with robust immunity to electrical noise, mechanical vibration, thermal extremes, and airborne contaminants — making it the preferred choice for system integrators and maintenance engineers operating in oil & gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing.

Where conventional output modules fail under sustained electromagnetic interference or temperature cycling, the PS-6144-24-P16M09 maintains signal integrity and switching accuracy. Its solid-state transistor output architecture eliminates mechanical wear, extends service life, and reduces unplanned downtime — critical advantages in continuous-process industries where a single I/O failure can cascade into costly production stoppages or safety incidents.

Rugged Specifications Table

Comprehensive Protection Solutions

The PS-6144-24-P16M09 is rarely deployed in isolation. In a fully integrated PS-6144 Series control architecture, it operates alongside the PS-6144 CPU module — the central processing unit that executes ladder logic and manages I/O scanning — and the PS-6144 digital input module (24VDC, 16-point), which mirrors the output module’s channel density for balanced I/O mapping. For analog process control loops, the PS-6144 analog input/output module handles 4–20mA and 0–10V signals from field transmitters, pressure sensors, and flow meters.

Power integrity is maintained by a dedicated PS-6144 Series 24VDC power supply module, which provides regulated, filtered DC power to the backplane and field devices. In high-availability installations, a redundant power supply module is added to eliminate single points of failure. The output module’s field-side terminals connect directly to industrial relay modules and solid-state relay (SSR) banks for switching higher-current loads such as solenoid valves, motor starters, and actuator coils — all without exposing the transistor outputs to inductive kickback.

Communication between the PS-6144 controller and upstream SCADA or DCS platforms is handled via PS-6144 communication modules supporting Modbus RTU, Modbus TCP/IP, or PROFIBUS DP — enabling seamless integration into existing plant-wide control networks. For distributed I/O expansion across large facilities, remote I/O adapter modules extend the PS-6144 backplane over industrial Ethernet or fieldbus links, reducing wiring costs and improving fault isolation.

Terminal wiring is secured through spring-clamp or screw-type terminal blocks rated for the module’s field-side current, ensuring vibration-proof connections in mobile or high-shock environments such as mining conveyors or offshore platforms. Surge protection devices (SPDs) installed at the cabinet entry point protect both the PS-6144-24-P16M09 and associated safety relay modules from transient overvoltages caused by lightning strikes or switching surges on long cable runs.

Application in Critical Infrastructure

In oil and gas upstream operations, the PS-6144-24-P16M09 controls wellhead safety valves, chemical injection pumps, and emergency shutdown (ESD) actuators. Its optically isolated outputs ensure that ground loops and common-mode noise from long field cable runs do not corrupt control signals — a non-negotiable requirement in SIL-rated safety instrumented systems (SIS).

In coal and hard-rock mining, the module drives conveyor belt starters, ventilation fan contactors, and dewatering pump controls in environments saturated with coal dust, silica particulate, and high humidity. The solid-state transistor design eliminates the arcing and contact wear that plague electromechanical relays in these conditions, reducing maintenance intervals and improving mean time between failures (MTBF).

At thermal and hydroelectric power plants, the PS-6144-24-P16M09 manages turbine auxiliary systems, cooling water valve actuators, and generator protection relay trip circuits. Its deterministic scan-cycle response ensures that protective actions are executed within the PLC’s programmed reaction time, supporting compliance with IEC 61511 functional safety requirements.

In municipal and industrial water treatment facilities, the module controls chlorination dosing pumps, UV disinfection systems, and sludge transfer valves across multiple treatment stages. The 16-point density reduces cabinet footprint and simplifies wiring in space-constrained pump stations, while the 24VDC operating voltage aligns with standard field device power rails used throughout water infrastructure.

For metallurgical and steel production environments — characterized by extreme radiated heat, heavy vibration from rolling mills, and intense electromagnetic fields from arc furnaces — the PS-6144-24-P16M09’s robust isolation and thermal tolerance make it a reliable choice for controlling cooling water valves, hydraulic press actuators, and furnace atmosphere control dampers.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the PS-6144-24-P16M09?
All PS-6144-24-P16M09 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. If the module exhibits any manufacturing defect or functional failure under normal operating conditions within this period, TOPNLMS will arrange repair, replacement, or credit at no additional cost. Warranty claims are processed with priority to minimize your plant downtime.

Q2: How is each unit tested before shipment?
Every PS-6144-24-P16M09 module undergoes pre-shipment functional verification, including output channel continuity checks, isolation resistance testing, and power-on self-test (POST) validation. Units are inspected for physical integrity, correct labeling, and firmware revision before packaging. Test records are available upon request for quality-critical procurement processes.

Q3: Is the PS-6144-24-P16M09 compatible with existing PS-6144 Series installations?
Yes. The PS-6144-24-P16M09 is a direct form-fit-function replacement for compatible 16-point 24VDC transistor output positions within the PS-6144 Series backplane. No CPU firmware upgrade or I/O configuration change is required in most installations. TOPNLMS recommends verifying the rack slot assignment and I/O map in your existing PLC program before hot-swapping in a live system.

Q4: Can TOPNLMS support long-term or repeat supply of this module?
Yes. TOPNLMS maintains dedicated inventory of PS-6144 Series modules to support ongoing MRO (maintenance, repair, and operations) procurement. We serve OEMs, system integrators, and end-user plant maintenance teams with consistent lead times, consolidated invoicing, and technical pre-sales support. Contact our team to discuss blanket order arrangements or consignment stock programs for high-criticality spare parts.
