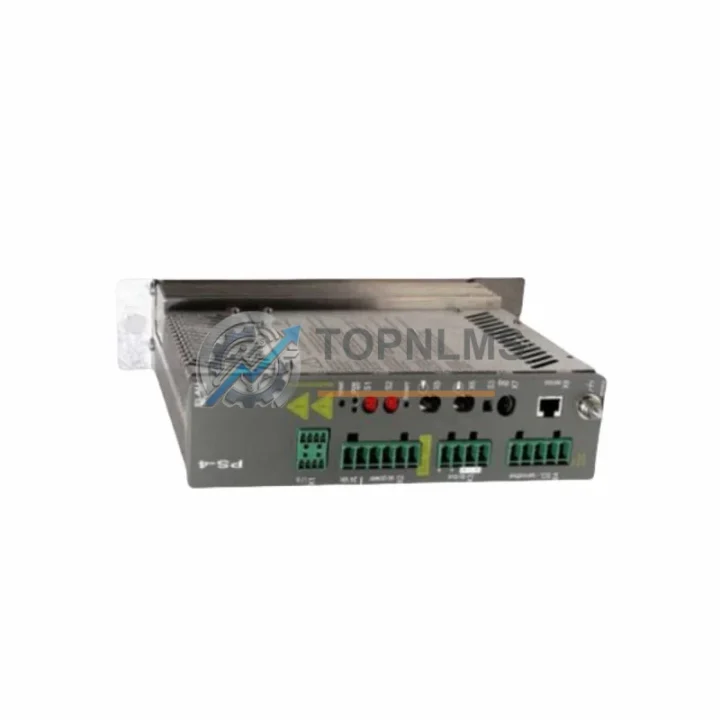

ELAU VPM01D16AA00 Replacement for PacDrive PS-4/10/16/230/00

Product Overview

ELAU VPM01D16AA00 Replacement for PacDrive PS-4/10/16/230/00: Seamless Transition from Legacy Power Supply Systems

The ELAU VPM01D16AA00, also referenced under the full part number PS-4/10/16/230/00, is a dedicated DC power supply module engineered for the ELAU PacDrive motion control platform. As Schneider Electric has progressively phased out the original ELAU PacDrive C200, C400, and M series controllers, procurement teams and maintenance engineers across packaging, printing, and food-processing industries are actively seeking verified replacement units to sustain production continuity without committing to a full system overhaul.

This listing provides a tested, ready-to-ship VPM01D16AA00 module sourced directly from authorized distribution channels. Each unit undergoes functional verification prior to dispatch, and is backed by a 12-month replacement warranty covering manufacturing defects and operational failures under normal industrial conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the VPM01D16AA00 is rarely an isolated task. In most PacDrive retrofit projects, the power supply module is just one component in a broader system refresh. Engineers migrating from legacy ELAU PacDrive installations typically address several interdependent components simultaneously to ensure the upgraded system operates reliably from day one.

The PacDrive rack itself — often a PS-4 or PS-8 chassis — must be inspected for backplane connector wear before a new power supply is installed. In systems where the ELAU MC-4 or MC-6 motion controller has also reached end-of-life, the VPM01D16AA00 replacement is frequently paired with a compatible Schneider Electric LMC058 or LMC078 controller to maintain SERCOS III communication continuity across all servo axes.

On the drive side, ELAU servo drives such as the SD3 or SD4 series remain in service in many facilities. These drives communicate with the PacDrive controller via the SERCOS fiber-optic ring, and the power supply module must deliver stable DC bus voltage to sustain their operation during high-inertia load cycles. When the SD3 or SD4 units are also flagged for replacement, the VPM01D16AA00 is typically upgraded alongside them to eliminate cascading failure risk.

I/O expansion in PacDrive systems is commonly handled through ELAU DIO modules or third-party Beckhoff EtherCAT I/O terminals integrated via gateway adapters. During a power supply swap, it is good practice to verify that all 24 VDC logic supply rails feeding these I/O modules remain within specification — a task that often reveals aging ELAU PSU24V auxiliary power units that should be replaced concurrently.

For facilities running ELAU PacDrive systems alongside Schneider Electric Modicon M340 or M580 PLCs for supervisory control, the migration window created by a power supply replacement is an ideal opportunity to audit the CANopen or Ethernet/IP gateway configuration. Replacing the VPM01D16AA00 without verifying the communication module settings can result in axis initialization errors on first power-up.

Programming and commissioning support for PacDrive systems requires the ELAU PacDrive Designer software environment and, in many cases, a dedicated RS-232 or USB programming cable compatible with the MC-4 controller’s service port. Having this cable on-site before the replacement is performed significantly reduces commissioning time and allows engineers to verify axis parameters and safety configurations immediately after the new power supply is energized.

Signal isolation between the PacDrive DC bus and external analog reference signals is another area that deserves attention during a retrofit. DIN-rail-mounted signal isolators — particularly those handling ±10 V analog speed references to legacy servo amplifiers — should be tested for drift after the power supply is replaced, as DC bus transients during startup can affect calibration.

Retrofit Guidance FAQ

Q: Can I replace the VPM01D16AA00 without modifying the existing cabinet wiring?
A: Yes. The VPM01D16AA00 is a direct slot-in replacement for the PS-4/10/16/230/00 position in the PacDrive rack. The 230 VAC input terminals and DC bus output connectors use the same pinout as the original module. No rewiring is required provided the incoming supply voltage is within the ±10% tolerance of 230 VAC.

Q: Will the replacement module work with my existing PacDrive SERCOS ring configuration?
A: Yes. The VPM01D16AA00 does not participate directly in SERCOS communication — it supplies DC bus power to the rack. The SERCOS fiber-optic ring topology between the MC-4 or MC-6 controller and the SD-series servo drives is unaffected by the power supply replacement.

Q: Do I need to re-download the PacDrive application program after replacing the power supply?
A: No. The application program resides in the motion controller (MC-4, MC-6, or LMC series), not in the power supply module. After replacing the VPM01D16AA00, the controller will resume normal operation from its stored program on the next power cycle, provided the controller’s battery-backed RAM or CompactFlash card is intact.

Q: What is the physical installation space requirement?
A: The VPM01D16AA00 occupies the PS-4 slot position in the standard PacDrive rack. Its dimensions are identical to the original module, so no cabinet modification or DIN-rail repositioning is required. Ensure a minimum 50 mm clearance above and below the rack for adequate convection cooling.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After installation, power up the rack and observe the DC bus voltage LED indicator on the VPM01D16AA00 front panel. A steady green LED confirms nominal DC bus output. Use PacDrive Designer to connect to the MC controller and verify that all axes initialize without power supply fault codes (error class 0x8130 or 0x8131 in PacDrive diagnostics).

Q: Can this module be used as a spare for a PacDrive system running on 110 VAC?
A: No. The PS-4/10/16/230/00 designation specifies 230 VAC input. For 110 VAC installations, a different ELAU power supply variant (PS-4/10/16/115/00) is required. Please confirm your site supply voltage before ordering.

Warranty Assurance

Every ELAU VPM01D16AA00 unit shipped by TOPNLMS is covered by a 12-Month Replacement Warranty from the date of delivery. This warranty covers functional failures arising from manufacturing defects or component degradation under normal industrial operating conditions. It does not cover damage resulting from incorrect installation voltage, physical impact, or unauthorized modification.

Prior to shipment, each unit is subjected to a pre-dispatch functional test that verifies DC bus output voltage stability, input fuse integrity, and front-panel indicator operation. Units that do not pass this test are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit dispatch within 5 business days of receiving the defective module and confirming the fault. Return shipping costs for warranty claims are covered by TOPNLMS for orders shipped within mainland China. International warranty returns are handled on a case-by-case basis.

For urgent production-down situations, TOPNLMS maintains a priority dispatch service for verified industrial customers. Contact our technical sales team directly to arrange expedited handling and same-day shipping where stock permits.

Stock is maintained in Xiamen, China, with standard lead times of 3–7 business days for domestic orders and 7–15 business days for international shipments via DHL, FedEx, or UPS, depending on destination and customs clearance.
