Edwards RV12 A655-01-905 Original Industrial Spare RV Series Compatible

Product Overview

Edwards RV12 A655-01-905 Original Industrial Spare RV Series Compatible

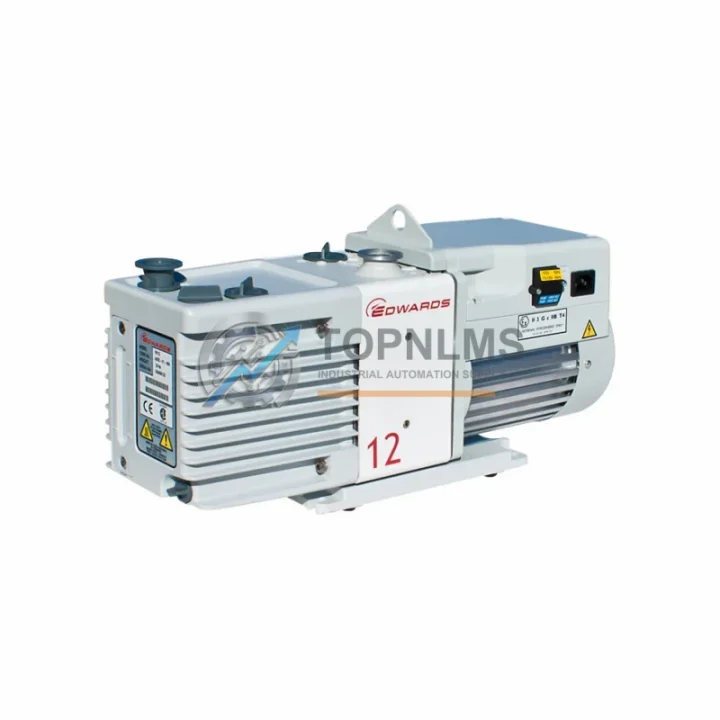

The Edwards RV12 A655-01-905 is a genuine two-stage, oil-sealed rotary vane vacuum pump engineered for continuous industrial duty. As a critical component in vacuum-dependent processes — from laboratory instrumentation and semiconductor fabrication to industrial coating lines and analytical equipment — the RV12 delivers consistent, deep-vacuum performance that keeps production lines running and prevents costly unplanned downtime. Sourced directly from authorized supply channels, every unit we ship is verified against Edwards’ original manufacturing specifications, ensuring drop-in compatibility with existing RV Series installations without system reconfiguration.

Whether you are responding to an emergency pump failure, executing a scheduled preventive maintenance replacement, or building a strategic spare-parts buffer for a multi-site facility, the A655-01-905 is the correct OEM reference to specify. Its oil-sealed, two-stage design achieves ultimate vacuum levels suitable for demanding process environments, and its robust cast-iron construction supports extended service intervals when paired with the correct Edwards Ultragrade vacuum oil and a disciplined maintenance schedule.

Critical Technical Specs

Preventive Maintenance Strategy

A rotary vane vacuum pump sits at the heart of many process systems, and its failure rarely occurs in isolation. When scheduling a replacement of the RV12 A655-01-905, experienced maintenance engineers treat the intervention as an opportunity to audit the entire vacuum circuit and associated control infrastructure. Neglecting adjacent components after a pump replacement is one of the most common causes of repeat failures within the first 90 days of reinstallation.

Begin with the vacuum inlet filter and oil mist filter (Edwards part series AFM or equivalent NW25-compatible elements): a clogged inlet filter starves the new pump of flow, while a saturated exhaust mist filter raises back-pressure and accelerates oil consumption. Next, inspect the NW25 KF centering rings and O-ring seals throughout the vacuum line — aged elastomers are a primary source of virtual leaks that prevent the system from reaching its rated ultimate vacuum. If the pump feeds a manifold or chamber, verify the integrity of the vacuum solenoid valve (typically a 24 VDC or 110/220 VAC normally-closed type) that isolates the pump during standby; a leaking solenoid will continuously back-stream oil vapor into the process chamber.

On the electrical side, check the motor starter or soft-starter contactor supplying the pump motor. RV-series pumps draw a significant inrush current at startup, and a worn contactor with pitted contacts can cause intermittent motor trips that are misdiagnosed as pump mechanical failures. Pair this inspection with a review of the thermal overload relay setting — it should be calibrated to the pump’s nameplate full-load current, not a generic default. If the pump is controlled by a PLC digital output module (such as a Siemens SM 322 or equivalent DO card), verify that the output channel driving the pump contactor coil is within its rated current capacity and that the channel’s LED indicator responds correctly to commanded states.

For facilities running multiple vacuum pumps on a shared process, consider stocking a vacuum gauge or Pirani gauge transducer alongside the spare pump. A calibrated gauge allows technicians to confirm that the replacement pump has achieved the correct ultimate vacuum before reconnecting the process load, eliminating guesswork during commissioning. Similarly, a spare gas ballast valve assembly and a bottle of Edwards Ultragrade 19 or Ultragrade 70 vacuum oil should be part of every RV12 maintenance kit — running the pump dry even briefly during an oil change causes irreversible vane scoring.

Finally, if the RV12 is installed in a system that also includes a turbomolecular pump (such as an Edwards EXT or nEXT series) as a high-vacuum stage, ensure the turbo pump’s controller and its backing-line pressure interlock are functioning correctly. A failed RV12 that is not promptly detected can expose the turbo pump’s bearings to atmospheric pressure, resulting in a far more expensive secondary failure. Stocking the RV12 A655-01-905 as a ready-to-install spare — alongside compatible KF clamps, centering rings, and inlet screen assemblies — reduces mean time to repair (MTTR) from days to under two hours.

Strategic Replacement Solutions

The Edwards RV12 A655-01-905 is the authoritative OEM replacement for aging RV-series pumps that may have been in continuous service for five to fifteen years. Many facilities still operate original RV pumps installed in the 1990s and 2000s, and sourcing a genuine replacement — rather than an unverified aftermarket unit — is the only way to guarantee that the system returns to its original performance specification without voiding any associated equipment warranties.

Cross-reference codes 3M 0620-02187, 79027, and QT50RAF-UK confirm compatibility across multiple OEM procurement systems, making it straightforward to substitute this unit in facilities that track spares under legacy part numbers. The two-stage design means the RV12 achieves a lower ultimate vacuum than single-stage alternatives, which is critical for applications where process quality is sensitive to residual gas partial pressures — such as thin-film deposition, mass spectrometry sample introduction, or electron microscopy column evacuation.

For facilities managing a planned obsolescence program, the RV12 A655-01-905 also serves as a like-for-like upgrade path from older RV3 and RV5 installations where process throughput requirements have grown. Its compact footprint and standard NW25 connections mean it can be retrofitted into existing pump stations without mechanical modification, preserving the capital investment in pipework, isolation valves, and control wiring while delivering improved pumping speed and lower ultimate vacuum.

Each unit is pre-tested at our facility before dispatch, with oil filled to the correct level and rotation direction verified. Units are shipped in protective packaging with all port blanks installed to prevent contamination during transit. Standard lead time is 1–3 business days for in-stock units, with express options available for emergency maintenance situations.

Support FAQ

Q1: Is the A655-01-905 a genuine Edwards part or an aftermarket equivalent?
A: The A655-01-905 is the original Edwards manufacturer part number for the RV12 two-stage rotary vane vacuum pump. Every unit we supply is sourced through authorized channels and is not an aftermarket or remanufactured substitute. Cross-reference codes 3M 0620-02187, 79027, and QT50RAF-UK are confirmed compatible references for the same unit.

Q2: What is the recommended spare-parts stocking strategy for facilities running multiple RV12 pumps?
A: For facilities with three or more RV12 units in continuous service, we recommend maintaining at least one ready-to-install spare on-site. Given that mean time between overhauls for oil-sealed rotary vane pumps in clean applications is typically 15,000–20,000 operating hours, a single spare covers most unplanned failure scenarios. Pair the spare pump with a maintenance kit containing Ultragrade vacuum oil, NW25 O-rings, an inlet filter element, and an exhaust mist filter to enable a complete, same-shift replacement.

Q3: How do I verify compatibility before installation, and what checks should be performed after fitting?
A: Confirm that your existing installation uses NW25 (ISO-KF) inlet and exhaust connections and a single-phase 220–240 V power supply. After installation, fill the oil to the midpoint of the sight glass, run the pump unloaded for five minutes with the gas ballast open to purge any residual moisture, then close the gas ballast and measure ultimate vacuum with a calibrated Pirani gauge. The pump should reach ≤ 1.5 × 10⁻³ mbar within 15–20 minutes under clean, dry conditions.

Q4: What does the 12-month warranty cover, and what is the claims process?
A: The 12-month warranty covers manufacturing defects in materials and workmanship from the date of dispatch. It does not cover damage resulting from incorrect oil type, oil starvation, pumping of corrosive or particulate-laden gases without appropriate inlet filtration, or operation outside the rated voltage and frequency range. To initiate a warranty claim, contact us at [email protected] with your order reference and a description of the fault. We will arrange collection and either repair or replacement at no charge within the warranty period.
