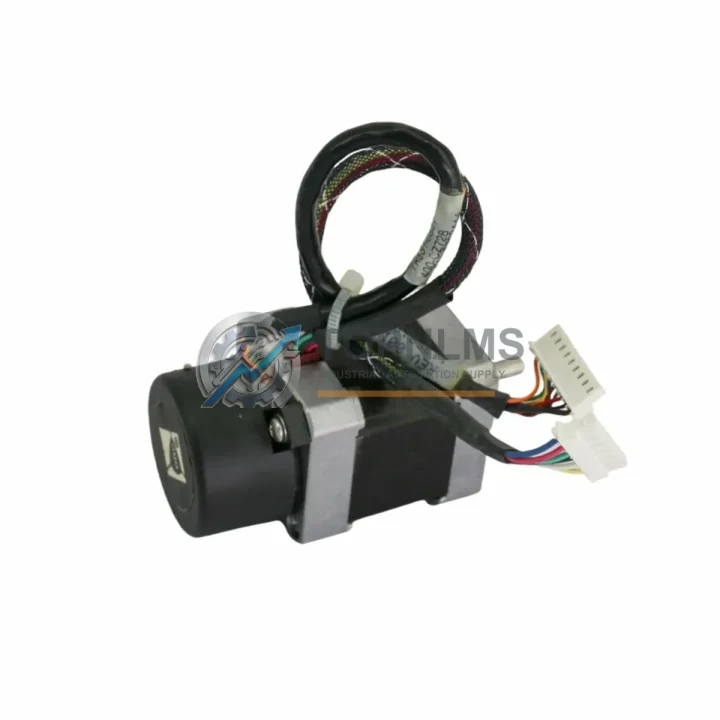

Edwards 0090-01474 Replacement Upgrade for E2M Series

Product Overview

Edwards 0090-01474 Replacement Upgrade for E2M Series: Smooth Transition from Legacy Vacuum Systems

When your existing Edwards E2M Series rotary vane vacuum pump reaches end-of-life or becomes difficult to source, the Edwards 0090-01474 (also referenced as 42010170008 / E17388480) provides a validated, drop-in replacement path that minimises engineering rework and production downtime. Designed for direct compatibility with the E2M mechanical vacuum pump family, this unit preserves your existing inlet/outlet port geometry, base-plate bolt pattern, and oil-fill specification — allowing maintenance teams to execute a like-for-like swap without modifying surrounding pipework or support structures.

Industrial facilities running legacy semiconductor process tools, analytical instrumentation, freeze-drying chambers, or coating systems frequently encounter situations where the original pump model is discontinued or lead times extend beyond acceptable downtime windows. The 0090-01474 addresses this gap by offering a stocked, tested alternative that ships from our Xiamen warehouse within 1–3 business days, backed by a 12-month warranty covering mechanical and electrical integrity.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful vacuum system retrofit rarely involves the pump alone. During the migration from an aging E2M-family installation to the 0090-01474, maintenance engineers typically address several surrounding components to ensure system-level reliability. The Edwards EMF10 oil mist filter is commonly replaced in parallel, as its internal coalescing element degrades at a rate proportional to pump run-hours; fitting a new filter at the same time as the pump eliminates a secondary service call within the first operating quarter.

Inlet isolation is another critical checkpoint. Many legacy installations use an Edwards SP25K solenoid valve or equivalent KF25-flanged isolation valve to protect the pump during power interruptions. Verifying the solenoid valve’s coil voltage and response time against the replacement pump’s start-up sequence prevents oil suck-back events that can contaminate process chambers. Similarly, the Edwards EIM exhaust isolation module — where fitted — should be inspected and its internal check valve confirmed serviceable before recommissioning.

On the instrumentation side, facilities that monitor process vacuum with a Pirani gauge head (such as the Edwards APG100-XLC or equivalent NW16-mounted transducer) should zero-calibrate the gauge after pump replacement, as baseline outgassing from a new pump can temporarily shift the gauge reading during the first 24–48 hours of operation. If the system uses a Penning (cold cathode) gauge for high-vacuum crossover, the crossover setpoint may need minor adjustment to account for the new pump’s slightly different pumping speed curve.

For facilities integrating the pump into a larger backing-pump / turbomolecular configuration, the Edwards nEXT240 or nEXT300 turbomolecular pump communication interface (typically RS-232 or digital I/O) should be re-validated after the backing pump swap. The turbopump controller monitors backing pressure; a new rotary vane pump may reach its base pressure faster than the legacy unit, which can trigger premature gate-valve opening if the interlock thresholds are not reviewed.

Pipework and fittings deserve equal attention. Replacing aged KF25 centering rings and O-rings (Viton or NBR, depending on process chemistry) at every flange joint during the pump swap is best practice and prevents virtual leaks that would otherwise mask the new pump’s true performance. Where flexible bellows sections are used between the pump inlet and the chamber, inspect the KF25 stainless bellows for fatigue cracks, particularly at the weld bead near the flange collar.

Finally, if the installation includes a vacuum controller or data logger — such as an Edwards TIC (Turbo and Instrument Controller) or a third-party PLC-based vacuum management system — update the pump model entry in the controller’s configuration menu to ensure correct alarm thresholds and service-interval reminders are applied to the new unit from day one.

Retrofit Guidance FAQ

Q: Can I reuse the existing inlet pipework and KF flanges?
A: Yes. The 0090-01474 uses the same NW25 inlet and NW16 exhaust port geometry as the E2M series it replaces. Existing KF clamps and centering rings can be reused if they are undamaged, though replacing O-rings at the time of installation is strongly recommended.

Q: Do I need to re-wire the motor connection?
A: The replacement unit matches the OEM electrical specification. Verify supply voltage and phase configuration against the pump’s nameplate before energising. No control-panel rewiring is required for a like-for-like swap.

Q: Is the oil type compatible with my existing system?
A: The 0090-01474 is compatible with Edwards Ultragrade 15 and Ultragrade 19 oils. Drain and refill with fresh oil at installation; do not mix old and new oil, and do not use non-OEM oil grades in applications with tight ultimate-vacuum requirements.

Q: How long does commissioning take after installation?
A: A straightforward like-for-like swap typically requires 2–4 hours including oil fill, leak check, and pump-down verification. Allow an additional 24-hour run-in period before returning the system to full process load.

Q: What if my legacy pump used a different base mounting pattern?
A: If your existing installation uses a non-standard mounting plate or vibration-isolation feet, contact our technical team with the legacy pump’s dimensional drawing. We can advise on adapter plates or alternative mounting arrangements.

Q: Can this unit be used in clean-room or semiconductor applications?
A: The 0090-01474 is suitable for general industrial and light analytical applications. For semiconductor-grade or corrosive-gas applications, confirm process chemistry compatibility with our technical team before ordering.

Warranty Assurance

Every Edwards 0090-01474 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment functional test that verifies motor rotation direction, oil level, inlet blank-off pressure, and absence of abnormal noise or vibration. Units that do not meet our outgoing quality standard are quarantined and not shipped.

In the event of a warranty claim, our after-sales team responds within 1 business day. Depending on fault diagnosis, resolution options include replacement unit dispatch, technical support for field repair, or full refund — whichever best minimises your operational disruption. Warranty claims are processed without requiring the customer to return the unit first in cases where remote diagnosis confirms a manufacturing defect.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice at the time of shipment. Export from Xiamen is handled under standard commercial terms; DDP, DAP, and EXW Incoterms are all available depending on your logistics preference.

Stock is maintained on-hand for immediate dispatch. Lead time for in-stock units is 1–3 business days from order confirmation. For bulk or project orders requiring multiple units, contact us for a dedicated project quotation and reserved-stock arrangement.
