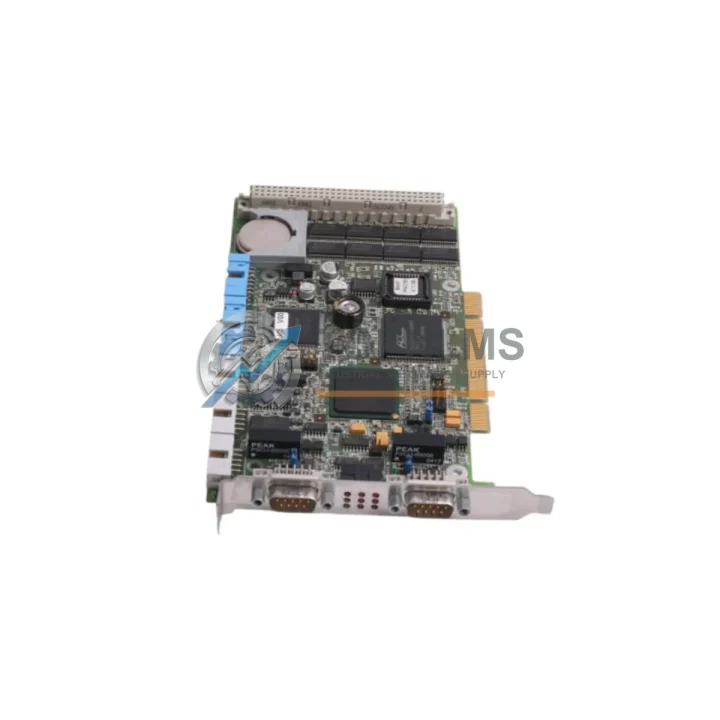

Eckelmann PNC55-CPU 4325600031LS Replacement/Upgrade Solution for PNC55: Smooth Migration from Legacy Control Systems

When a PLC CPU module fails or reaches end-of-life in a production environment, every hour of unplanned downtime translates directly into lost output, missed delivery commitments, and escalating maintenance costs. The Eckelmann PNC55-CPU 4325600031LS is the original CPU module for the Eckelmann PNC55 rack-based control platform — a system widely deployed in packaging machinery, food processing lines, printing equipment, and general industrial automation across European manufacturing facilities. Whether you are executing a planned upgrade from an older Eckelmann controller or responding to an emergency CPU failure, this unit provides a verified, original-specification replacement that restores full system functionality without requiring architectural changes to your control cabinet.

Eckelmann’s PNC55 platform was engineered for deterministic real-time control in demanding industrial environments. The PNC55-CPU 4325600031LS serves as the central processing unit of the PNC55 rack, coordinating I/O scanning, program execution, and communication tasks across the entire control system. Sourced as an original Eckelmann component, this unit ships fully tested and ready for immediate installation, with all firmware and hardware revisions consistent with the original system specification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A CPU module replacement in a PNC55 rack system is rarely an isolated event. In most field scenarios, the CPU failure or planned upgrade is the trigger for a broader review of the control cabinet’s health and component lifecycle. Understanding the interdependencies within the PNC55 architecture allows maintenance engineers to plan a complete, low-risk migration rather than a reactive single-component swap.

The PNC55-CPU 4325600031LS occupies slot 0 of the PNC55 backplane rack. Before installing the replacement CPU, verify the condition of the PNC55 rack power supply module — this unit provides the regulated 24 VDC rail that powers all modules in the rack, and a degraded power supply is a common root cause of CPU faults that are misdiagnosed as CPU failures. If the power supply shows any signs of output ripple, thermal stress, or age-related capacitor degradation, replacing it concurrently with the CPU eliminates the risk of a repeat failure shortly after the migration.

On the I/O side, the PNC55-CPU communicates with all installed PNC55 digital input modules, digital output modules, and analog I/O modules via the internal rack bus. During the CPU replacement procedure, it is good practice to reseat all I/O modules and inspect their edge connectors for oxidation or mechanical wear. If any I/O module shows intermittent faults in the system diagnostics, this is the optimal time to replace it — doing so during the same maintenance window avoids a second cabinet outage in the near future.

Communication continuity is another critical consideration during a CPU migration. If your PNC55 system uses a CANopen communication module or a serial gateway module to interface with upstream SCADA systems, HMI panels, or field devices, confirm that the communication parameters stored in the new CPU are correctly configured before returning the system to production. In many PNC55 installations, the CPU holds the master communication configuration, and a factory-reset CPU will require re-parameterization of all network node addresses and baud rate settings.

For facilities that use an Eckelmann operator panel or third-party HMI connected to the PNC55 CPU via serial or Ethernet, verify that the HMI communication driver is compatible with the firmware version of the replacement CPU. In some cases, a firmware update to the HMI or a driver reconfiguration may be required to restore full visualization functionality after the CPU swap. Keep a copy of the HMI project file and the PLC program backup on a dedicated engineering laptop before beginning the replacement procedure.

If your facility is transitioning from an older Eckelmann PNC50-series controller to the PNC55 platform as part of a broader modernization initiative, the PNC55-CPU 4325600031LS provides a forward-compatible foundation. The PNC55 rack accepts a wider range of I/O modules and supports more advanced communication options than the PNC50, making it a practical upgrade path for systems that need extended service life without a full migration to a new PLC brand. In this scenario, the migration plan should also account for terminal block adapters, field wiring harnesses, and DIN rail mounting hardware to accommodate any physical differences between the old and new rack configurations.

Finally, for facilities that maintain a programming cable or USB-to-serial adapter for connecting to the Eckelmann E°EDP programming environment, confirm that the cable and driver are compatible with the replacement CPU before the maintenance window begins. Having a verified programming connection ready before the swap significantly reduces the time required for post-installation commissioning and program upload.

Retrofit Guidance FAQ

Q1: Can the PNC55-CPU 4325600031LS directly replace an earlier PNC55-CPU revision without rewiring?
In the vast majority of cases, yes. The PNC55-CPU 4325600031LS is designed as a form-fit-function replacement for the PNC55 rack CPU slot. Field wiring connects to the I/O modules, not the CPU directly, so no rewiring is required. The existing PLC program can be uploaded to the replacement CPU using the Eckelmann E°EDP programming software. If your system uses a specific firmware version, contact us to confirm hardware revision compatibility before ordering.

Q2: Do I need to reconfigure communication settings after replacing the CPU?
Yes, in most cases. The PNC55-CPU stores communication parameters including CANopen node addresses, serial port settings, and network configuration. After installing the replacement CPU, you will need to restore these settings either by uploading a full project backup from the E°EDP programming environment or by manually re-entering the communication parameters. Always maintain an up-to-date backup of your PLC project before any CPU replacement.

Q3: Is this unit compatible with the full range of PNC55 I/O modules currently installed in my rack?
The PNC55-CPU 4325600031LS is compatible with the standard PNC55 I/O module lineup, including digital input, digital output, and analog I/O modules. If your rack includes specialized modules such as high-speed counter modules or motion control modules, provide your full rack configuration to our technical team for compatibility confirmation prior to purchase.

Q4: What physical space and installation requirements should I plan for?
The PNC55-CPU 4325600031LS uses the standard PNC55 module form factor and installs in slot 0 of the PNC55 backplane rack. No panel cutout modifications or additional DIN rail space is required. Ensure the rack power supply is de-energized before module insertion. Allow adequate clearance for the front-panel connectors and status LEDs as specified in the Eckelmann PNC55 hardware manual.

Warranty Assurance

Every Eckelmann PNC55-CPU 4325600031LS unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty reflects our confidence in the quality of our sourcing and pre-shipment testing processes.

Pre-shipment Testing: Each unit undergoes functional verification before dispatch. Testing includes power-on self-test, communication interface check, and visual inspection for physical integrity. Units that do not pass testing are not shipped.

Packaging and Shipping: Units are individually packaged with anti-static protection and impact-resistant outer packaging. A test report and shipment documentation are included with each order. In-stock units ship within 1–3 business days. Expedited shipping is available for urgent maintenance situations. We ship worldwide with full export documentation from Xiamen, China.

Warranty Coverage: The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail within the warranty period are replaced or refunded at no additional cost. The warranty does not cover damage caused by incorrect installation, overvoltage events, physical mishandling, or unauthorized modification.

After-Sales Support: Our technical team is available to assist with compatibility verification, installation guidance, and post-installation troubleshooting. Contact us before purchase if you have questions about firmware revisions, rack configuration compatibility, or communication protocol requirements. We are committed to ensuring that your replacement or upgrade project is completed successfully and with minimal disruption to your production schedule.
