ebm-papst 4650N-465 Replacement for 4600N Series

Product Overview

ebm-papst 4650N-465 Replacement for 4600N Series: Smooth Transition & Legacy System Compatibility

When your existing ebm-papst 4600N Series installation reaches end-of-life or a specific unit such as the 4650N-465 becomes difficult to source, unplanned downtime is the immediate risk. TOPNLMS supplies verified ebm-papst 4650N-465 units from bonded stock, enabling a direct drop-in replacement or a structured upgrade path for control cabinets, industrial enclosures, server rooms, and process-cooling racks that were originally designed around the 4600N platform.

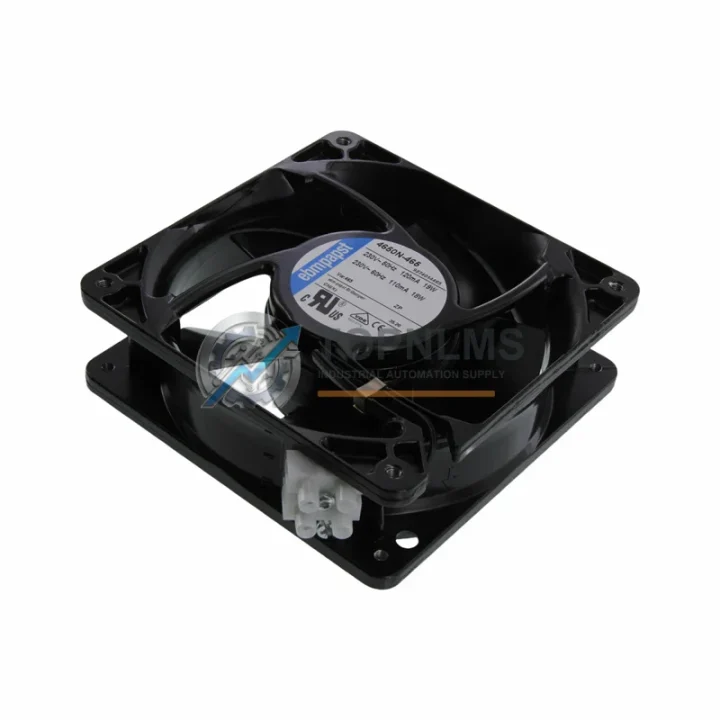

The 4650N-465 is a single-phase AC tubeaxial fan engineered in Germany to ebm-papst’s precision manufacturing standards. Its 172 mm × 172 mm × 51 mm frame, standardised mounting footprint, and IEC-compliant terminal block wiring make it mechanically and electrically interchangeable with earlier 4600N variants including the 4650N, 4650NH, and 4656N without cabinet rework. Engineers migrating from legacy Siemens SIMATIC S5 or early S7-300 control cabinets that relied on ebm-papst 4600N cooling will find the 4650N-465 slots directly into the existing DIN-rail-adjacent mounting bracket, preserving original cable lengths and connector positions.

For sites running older Schneider Electric Modicon Quantum or Premium PLC racks where thermal management was specified around the 4600N airflow curve (≥ 230 m³/h free-delivery), the 4650N-465 maintains the same hydraulic performance envelope. No firmware changes, no I/O remapping, and no PLC program modifications are required — the fan is a passive cooling component with no digital interface dependency.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 4650N-465 retrofit rarely involves the fan alone. In practice, field engineers replacing cooling components in aging control cabinets simultaneously address adjacent wear items and system-level upgrades to maximise the maintenance window and avoid repeat call-outs.

In Siemens S7-300 and S7-400 installations, the 4650N-465 is commonly replaced alongside Siemens 6ES7 307-1EA01-0AA0 PS307 power supply modules, which share the same service interval in high-ambient-temperature environments. Where the cabinet also houses a Siemens CP 343-1 Ethernet communication module or a CP 341 serial communication module, engineers verify that the improved airflow from the 4650N-465 keeps module junction temperatures within the rated operating window — particularly important for CP modules running continuous PROFIBUS DP or Industrial Ethernet polling cycles.

For Rockwell Automation / Allen-Bradley ControlLogix and CompactLogix installations that use ebm-papst 4600N fans in supplemental enclosure cooling, the 4650N-465 is often paired with a 1756-PA75 or 1756-PB75 ControlLogix power supply replacement and updated 1492-CABLE series wiring harnesses to bring terminal connections up to current NEC/IEC standards. The fan’s unchanged footprint means the existing Allen-Bradley 1492-J4 terminal block rail layout requires no modification.

In DCS environments — particularly Honeywell Experion PKS or Yokogawa CENTUM VP cabinets — the 4650N-465 is a recognised replacement for OEM cooling assemblies. Technicians typically combine the fan swap with inspection of Phoenix Contact QUINT-PS/1AC/24DC/10 DIN-rail power supplies and replacement of aged Weidmüller WDU 2.5 terminal blocks, both of which share the same cabinet real estate and thermal exposure history.

Where the legacy system includes a Moxa NPort 5150 serial device server or similar RS-232/RS-485 to Ethernet gateway for remote SCADA connectivity, confirming that the 4650N-465’s improved airflow maintains the gateway’s operating temperature below 60 °C is a standard commissioning check. Similarly, sites using Pilz PNOZmulti safety relay modules in the same enclosure benefit from the reduced thermal stress that the 4650N-465 delivers over a degraded legacy fan.

For panel builders specifying new builds that must maintain backward compatibility with 4600N-era drawings, the ebm-papst 4656N and 4650NH remain the closest dimensional siblings; the 4650N-465 supersedes both in current production and is the recommended forward-specification part for all new panel designs targeting IEC 60529 IP44 enclosure cooling.

Retrofit Guidance FAQ

Q: Can I reuse the existing wiring without re-terminating?
Yes. The 4650N-465 uses a standard IEC terminal block with the same L, N, and PE positions as earlier 4600N variants. Existing cable lengths and lug crimps are reusable in the vast majority of installations. Verify conductor cross-section is ≥ 0.75 mm² (AWG 18) before re-termination.

Q: Do I need to modify my PLC program or HMI configuration?
No. The 4650N-465 is a passive AC cooling component with no digital interface. It does not appear in any PLC I/O map, PROFIBUS node list, or EtherNet/IP device table. No program changes, no tag updates, and no HMI screen modifications are required.

Q: Is the mounting footprint identical to the 4650N and 4656N?
Yes. The 172 × 172 mm frame with 152 mm bolt-circle diameter (4× M4) is unchanged across the 4600N family. The 4650N-465 drops into the existing panel cutout and bolt pattern without any metalwork modification.

Q: What communication protocols does the 4650N-465 support?
None — it is a passive electromechanical component. It is protocol-agnostic and compatible with any control architecture: PROFIBUS, PROFINET, EtherNet/IP, Modbus TCP, DeviceNet, or proprietary DCS backplane communications are unaffected by the fan replacement.

Q: How much physical space does the replacement require?
The 4650N-465 is 51 mm deep (same as legacy 4600N units). No additional depth clearance is needed. Ensure a minimum 25 mm free-air clearance on the inlet face for rated airflow performance.

Q: What is the expected field swap time?
For a trained technician, a like-for-like replacement takes 15–30 minutes including isolation, de-wiring, mechanical swap, re-wiring, and functional test. No special tools beyond a standard M4 hex key and a multimeter are required.

Q: Can the 4650N-465 operate on 60 Hz supply (North American sites)?
Yes. The 4650N-465 is rated for 50–60 Hz operation at 230 V AC, making it suitable for international deployments and sites with mixed-frequency infrastructure.

Warranty Assurance

Every ebm-papst 4650N-465 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a pre-shipment functional test: rotation direction verification, current draw measurement at rated voltage, vibration check, and visual inspection of blade integrity and terminal block condition. Units that do not meet ebm-papst’s published performance specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is one business day for initial acknowledgement and three business days for resolution proposal. Warranty claims require the original invoice number and a brief description of the observed fault; return shipping for confirmed defective units is arranged by TOPNLMS at no cost to the buyer.

Stock is held in our Xiamen warehouse and is available for same-day dispatch on orders confirmed before 15:00 CST. Standard international shipping options include DHL Express (3–5 business days), FedEx International Priority (3–5 business days), and sea freight consolidation for bulk orders. A certificate of conformity and packing list are included with every shipment. For OEM panel builders and MRO procurement teams requiring blanket orders or consignment stock arrangements, please contact our sales team directly.
