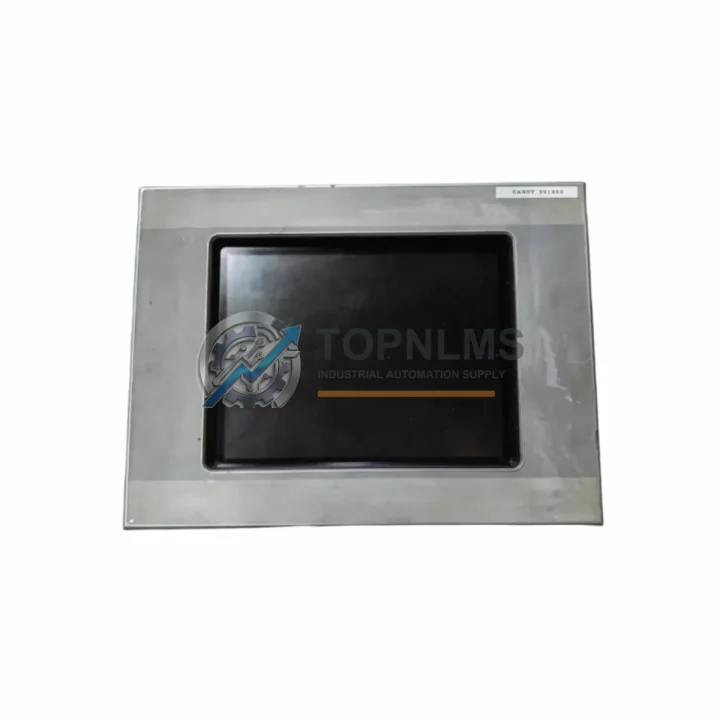

EATON MC2-440-10TVB-1-10 Replacement for XV-Series HMI

Product Overview

EATON MC2-440-10TVB-1-10 Replacement & Upgrade Solution for XV-Series HMI: Smooth Transition from Legacy Systems

When your existing EATON XV-Series operator panel reaches end-of-life or becomes difficult to source, the MC2-440-10TVB-1-10 provides a direct, field-proven upgrade path that preserves your existing wiring infrastructure, communication architecture, and control cabinet layout. Designed as a drop-in replacement for aging XV100, XV200, and earlier XV300 series HMI panels, this 10.4-inch TFT touch panel eliminates the need for costly panel cutout modifications or full cabinet redesigns. Engineers managing legacy EATON XC200 PLC systems, Moeller PS4 controllers, or third-party Siemens S7-300 and Mitsubishi Q-series PLCs will find the MC2-440-10TVB-1-10 integrates cleanly into existing automation architectures without requiring a full system overhaul.

The MC2-440-10TVB-1-10 supports Modbus RTU, Modbus TCP/IP, CANopen, and PROFIBUS DP communication protocols, making it compatible with a broad range of field devices including EATON drivesConnect frequency inverters, SmartWire-DT gateway modules, and third-party I/O expansion racks. For sites currently running serial RS-232 or RS-485 communication to legacy PLCs, the panel’s onboard COM ports allow direct cable reuse, significantly reducing retrofit labor costs and minimizing downtime during the changeover window.

Physical installation is straightforward: the MC2-440-10TVB-1-10 uses a standard 246 × 186 mm panel cutout, compatible with most DIN-rail enclosures and freestanding control cabinets where earlier XV-Series units were mounted. The 24 VDC power supply input is identical to predecessor models, meaning existing power distribution wiring and terminal blocks — including EATON RMQ-Titan command devices and Phoenix Contact PTFIX distribution blocks — can remain in place. No rewiring of the 24 V rail is required in the majority of retrofit scenarios.

Project engineers migrating from discontinued EATON XV-102-D6-57TVRC-10 or XV-152-D6-57TVRC-10 panels will find that existing Galileo or Xsoft-CoDeSys visualization projects can be adapted and re-compiled for the MC2-440-10TVB-1-10 with minimal screen layout adjustments. The panel runs the Galileo 7 runtime environment, and most standard function blocks, alarm management routines, and recipe management scripts transfer with only minor variable remapping. This dramatically reduces engineering hours compared to migrating to an entirely different HMI platform.

For distributed I/O architectures, the MC2-440-10TVB-1-10 communicates natively with EATON XN300 remote I/O modules and EU5E-SWD-4DX4DA SmartWire-DT I/O modules, preserving existing field wiring from sensors, actuators, and signal isolators. Sites using WAGO 750-series or Beckhoff EL-series I/O terminals via Modbus TCP will also find the panel’s Ethernet port supports simultaneous HMI visualization and PLC communication without requiring an additional network switch in most cabinet configurations.

Power quality and signal integrity are maintained through the panel’s built-in EMC filtering, which meets EN 61000-6-2 industrial immunity standards. This is particularly relevant for installations near variable frequency drives such as the EATON DE1 or PowerXL DA1 series, where conducted and radiated emissions can interfere with legacy HMI panels lacking adequate shielding. The MC2-440-10TVB-1-10’s robust EMC design ensures stable operation in high-noise industrial environments including pump stations, compressor rooms, and conveyor control panels.

Procurement teams will appreciate that TOPNLMS maintains ready stock of the MC2-440-10TVB-1-10, with standard lead times of 3–7 business days for international shipments from Xiamen. Each unit undergoes pre-shipment functional testing covering display calibration, communication port verification, and power-on self-test. Units are shipped in original or equivalent protective packaging with full documentation. A 12-month warranty covers manufacturing defects, communication failures, and display anomalies, with direct replacement support and responsive after-sales technical assistance.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete XV-Series migration typically involves more than the HMI panel itself. During the retrofit process, engineers commonly address the EATON XC200 programmable logic controller as the primary control node, updating its firmware to support the expanded communication capabilities of the MC2-440-10TVB-1-10. The EATON XN300 remote I/O module is frequently retained in the existing rack, as its terminal wiring remains fully compatible. Where SmartWire-DT topology is in use, the EU5E-SWD-4DX4DA gateway module bridges field devices to the new HMI without requiring additional cabling.

Power distribution within the control cabinet is typically handled by the existing EATON PSG60E 24 VDC SMPS power supply, which provides sufficient current headroom for the MC2-440-10TVB-1-10’s 18 W typical consumption. For communication-intensive installations, a dedicated EATON EASY-E4-UC-16RE1 smart relay may be used to offload simple interlocking logic, freeing PLC scan time. Programming and project transfer is performed via the EATON XC-PC-USBCABLE USB programming cable, which connects directly to the panel’s service port. Signal conditioning between legacy 4–20 mA field transmitters and the new panel’s digital I/O is handled by Phoenix Contact MCR-SL-I-I signal isolators, which are DIN-rail mountable and require no additional power supply. Finally, where PROFIBUS DP topology is retained, the EATON XC-NET-PBDP PROFIBUS DP communication module ensures the MC2-440-10TVB-1-10 integrates cleanly into the existing network segment without address conflicts.

Retrofit Guidance FAQ

Q: Can I reuse existing RS-485 wiring from my legacy XV panel?
A: Yes. The MC2-440-10TVB-1-10 uses the same RS-485 pinout as predecessor XV-Series models. Existing shielded twisted-pair cables and terminal connections can be retained without modification in most installations.

Q: Do I need to reprogram my PLC when replacing the HMI?
A: No PLC program changes are required. The HMI replacement is transparent to the PLC; only the visualization project on the panel side needs to be adapted and re-downloaded using Galileo 7.

Q: Is the panel cutout size identical to the XV-102 and XV-152 series?
A: Yes. The 246 × 186 mm cutout is shared across the XV-Series product family, allowing direct mechanical replacement without cabinet modification.

Q: What communication protocols are supported simultaneously?
A: The MC2-440-10TVB-1-10 supports concurrent Modbus TCP over Ethernet and serial Modbus RTU or CANopen, enabling multi-network architectures without additional gateway hardware.

Q: How long does a typical on-site retrofit take?
A: For a prepared engineer with the Galileo 7 project file ready, physical swap and communication verification typically takes 2–4 hours per panel, including functional testing and alarm acknowledgment checks.

Warranty Assurance

Every MC2-440-10TVB-1-10 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Pre-shipment testing includes display pixel verification, all communication port functional checks (RS-232, RS-485, Ethernet, CANopen), power-on self-test, and touch calibration validation. Units that fail any test criterion are quarantined and not shipped. In the event of a warranty claim, TOPNLMS provides direct replacement dispatch within 5 business days of fault confirmation, with no requirement to return the defective unit before the replacement is released. After-sales technical support is available via email and phone to assist with installation, communication configuration, and Galileo project compatibility questions. Purchasing teams can request a test report or inspection certificate prior to shipment upon request.
