Eaton L630E 630A 3P MCCB Replacement for Series C

Product Overview

Eaton L630E 630A 3P MCCB Replacement for Series C: Smooth Transition & Legacy System Compatibility

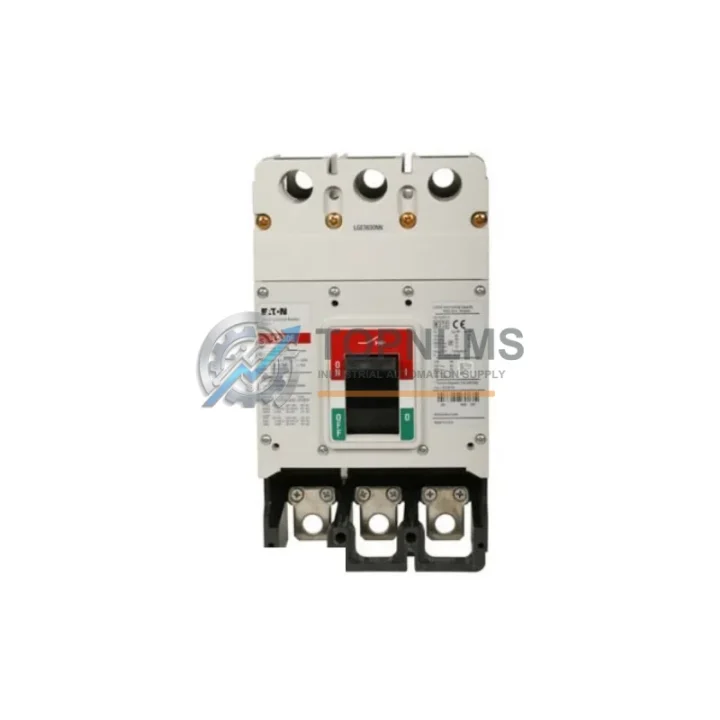

The Eaton L630E 630A 3-Pole Molded Case Circuit Breaker (MCCB), part numbers 0040-03154 and 8124063G001, is a high-performance overcurrent protection device engineered for industrial power distribution panels, motor control centers (MCCs), and critical infrastructure switchgear. As aging Series C installations reach end-of-life or face discontinued spare parts availability, facilities engineers and procurement teams are increasingly seeking a verified, drop-in replacement that preserves existing wiring topology, bus bar configurations, and panel space allocations without requiring costly redesigns.

TOPNLMS maintains ready inventory of the L630E to support urgent replacement cycles, planned maintenance shutdowns, and long-term MRO stocking programs. Every unit ships with full factory documentation and passes pre-shipment functional verification before dispatch from our Xiamen warehouse.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the L630E within a live MCC or switchgear lineup rarely involves a single component in isolation. In practice, a successful retrofit of an aging Series C power distribution system typically requires coordinated replacement or verification of several interdependent components.

During the disconnection and re-energization sequence, technicians commonly inspect and replace the Eaton LSIG electronic trip unit mounted within the breaker frame, as trip unit firmware and calibration drift over extended service life. Where the existing installation uses an Eaton ZM communication module for Modbus RTU supervisory monitoring, the L630E accepts the same ZM accessory without modification, preserving SCADA integration with upstream Eaton Power Xpert meters or third-party energy management systems.

In motor control center applications, the L630E is frequently installed as the main or feeder breaker upstream of Eaton Freedom Series motor starters and Eaton PKZM motor-protective circuit breakers. Verifying the coordination curve between the L630E and downstream PKZM devices is a standard commissioning step that ensures selective tripping without nuisance outages across the MCC bus.

For facilities migrating from older fixed-mounted switchgear to draw-out configurations, the L630E is compatible with Eaton Magnum DS and Eaton IZM series draw-out cradle adapters, enabling a phased modernization approach where the breaker is upgraded first while the switchgear enclosure is retained. In parallel, many sites replace aging Eaton SPD (Surge Protective Device) modules and Eaton Power Defense MCCB units in adjacent panels during the same planned outage window to consolidate downtime.

Where the existing system relies on Eaton DS/DSL series low-voltage power circuit breakers at the main incoming position, the L630E serves as a coordinated feeder breaker in the downstream distribution tier, maintaining the required 2:1 or greater interrupting capacity ratio for selective coordination. Facilities with legacy Eaton Cutler-Hammer Series C panelboards will find that the L630E’s identical frame dimensions and lug geometry eliminate the need for bus bar extensions or custom adapter plates, significantly reducing installation labor and the risk of connection errors during live-panel work.

Signal isolation between the breaker’s auxiliary contacts and PLC digital input modules — typically 24 VDC sourcing I/O cards in Eaton or third-party control systems — should be verified during commissioning. Where contact bounce or voltage mismatch is a concern, inline signal isolators or interposing relays rated for the auxiliary contact output are recommended as part of the retrofit bill of materials.

Retrofit Guidance FAQ

Q: Can I replace my existing Series C L-Frame breaker with the L630E without rewiring?
A: Yes. The L630E uses the same L-Frame lug configuration and bolt pattern as earlier Series C L-Frame breakers. No rewiring or bus bar modification is required for a direct swap.

Q: Is the L630E compatible with my existing Modbus RTU monitoring setup?
A: Yes, provided you are using the Eaton ZM communication module. The L630E accepts the same ZM accessory, preserving your existing Modbus RTU wiring and register map without reconfiguration.

Q: What trip unit options are available for the L630E?
A: The L630E is compatible with Eaton’s LSIG (Long-time, Short-time, Instantaneous, Ground-fault) and LSI electronic trip units, as well as standard thermal-magnetic trip configurations. Specify your required trip unit type at the time of order.

Q: Will the L630E fit in my existing panel cutout and mounting position?
A: Yes. The L630E maintains the standard L-Frame 250 mm frame dimensions. No panel cutout modification, new mounting hardware, or enclosure rework is required.

Q: How do I verify coordination with downstream motor protection devices?
A: Use Eaton’s Power Xpert Protection coordination software or equivalent to plot the L630E’s time-current curve against downstream PKZM or Freedom Series devices. TOPNLMS can provide the L630E TCC data sheet upon request.

Q: What is the lead time and shipping arrangement?
A: Units are in stock at our Xiamen warehouse. Standard dispatch is within 1–3 business days. International freight via DHL Express, FedEx, or sea freight consolidation is available depending on order quantity and destination.

Warranty Assurance

Every Eaton L630E unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each breaker undergoes a pre-shipment inspection that includes visual examination, mechanical operation verification, and documentation cross-check against the factory serial number and part number label.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement unit dispatch or full refund at the buyer’s election, with return freight costs covered for verified warranty claims. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal.

Procurement teams requiring test reports, factory certificates of conformance, or third-party inspection coordination prior to shipment are encouraged to contact us directly. We support L/C, T/T, and trade assurance payment terms for qualified buyers.

For volume orders, long-term MRO supply agreements, and project-based procurement, TOPNLMS offers reserved inventory allocation and priority dispatch scheduling to ensure your maintenance and capital project timelines are protected.
