Eaton 99-5835-01 Replacement/Upgrade Solution for I/O Series

Product Overview

Eaton 99-5835-01 Replacement/Upgrade Solution for I/O Series: Smooth Transition from Legacy Systems

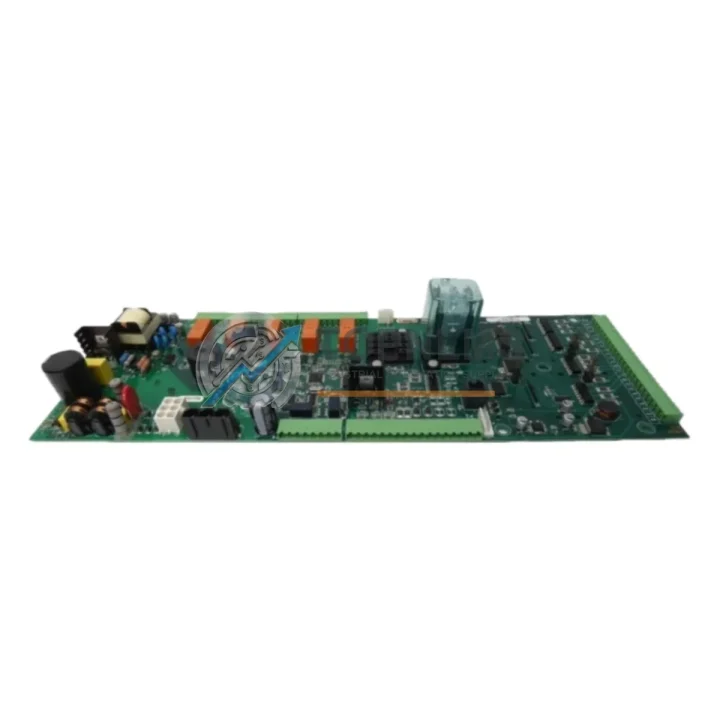

The Eaton 99-5835-01 is a proven Input/Output board designed for industrial control environments where signal integrity, rack compatibility, and long-term system reliability are non-negotiable. As legacy Eaton I/O platforms approach end-of-life or become increasingly difficult to source, plant engineers and procurement teams are actively seeking a drop-in replacement or structured upgrade path that minimizes engineering rework, preserves existing wiring infrastructure, and reduces unplanned downtime.

At TOPNLMS, we stock the Eaton 99-5835-01 I/O board as a direct replacement module for facilities currently operating aging Eaton distributed control or relay logic systems. Whether your site is running an older Eaton PLC rack, a legacy DCS I/O subsystem, or a hybrid control cabinet that mixes discrete and analog signal processing, this module is engineered to restore full I/O functionality without requiring a full system overhaul.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy Eaton I/O platform to the 99-5835-01 rarely involves a single module swap in isolation. In practice, field engineers encounter a broader set of interdependencies across the control cabinet and system architecture. The following components are commonly addressed during the same retrofit or upgrade project:

When the 99-5835-01 is installed as a replacement in an existing Eaton rack, the Eaton backplane or rack chassis must be verified for slot integrity and bus connector condition — worn backplane connectors are a frequent root cause of intermittent I/O faults that are misdiagnosed as module failures. Alongside the I/O board, the Eaton power supply module (typically a 24 VDC rail-mount or rack-integrated PSU) should be load-tested to confirm it can sustain the full I/O channel current draw after the replacement.

For sites migrating from older relay-logic panels or first-generation PLCs, the field wiring termination infrastructure often requires attention. Eaton terminal blocks and marshalling panels used in the original installation may need re-labeling or partial rewiring if the legacy module used a non-standard pinout. In most cases, however, the 99-5835-01’s connector layout is backward-compatible, allowing existing field wiring harnesses and cable assemblies to be reused without modification — a significant labor cost saving during planned maintenance windows.

Communication continuity is another critical consideration. If the control system relies on a Modbus RTU, PROFIBUS DP, or DeviceNet communication module mounted in the same rack, the I/O board replacement must not disrupt the network node addressing or baud rate configuration. The 99-5835-01 operates transparently on the Eaton backplane bus, meaning the PLC CPU module — whether an Eaton ELC, XC, or compatible controller — continues to scan I/O addresses without requiring a program download or address remapping.

For facilities that have already partially modernized their control infrastructure, the 99-5835-01 integrates cleanly alongside newer Eaton XC200 or XV300 series controllers and their associated distributed I/O expansion modules. Sites running mixed-generation architectures — where a modern HMI panel (such as an Eaton XV-102 or XV-152 touch panel) interfaces with legacy I/O hardware — will find that the 99-5835-01 maintains the signal transparency required for uninterrupted HMI data display and operator control.

In applications where signal isolation is required between field devices and the control system — particularly in high-noise environments such as motor control centers or variable frequency drive (VFD) panels — signal isolators or galvanic isolation barriers are recommended upstream of the I/O board inputs. This is especially relevant when the legacy system included Eaton or third-party analog input signal conditioners that may need to be retained or replaced as part of the same upgrade scope.

Finally, for commissioning and diagnostics, a compatible Eaton programming cable or USB-to-serial adapter is required to connect a laptop running the appropriate Eaton programming software (such as Eaton EasySoft or XSoft-CoDeSys) to the CPU module during post-replacement verification. This step confirms that all I/O channels on the 99-5835-01 are correctly mapped, signal levels are within specification, and no fault codes are active before the system is returned to production.

Retrofit Guidance FAQ

Q: Can I replace the failed board without modifying the existing field wiring?
A: Yes. The Eaton 99-5835-01 uses the same connector interface as the original module in its series. Field wiring, including all terminal connections and cable harnesses, can be transferred directly to the replacement board without re-termination in the vast majority of retrofit scenarios.

Q: Will my existing PLC program need to be modified after the swap?
A: No program changes are required for a direct like-for-like replacement. The I/O address mapping, channel assignments, and scan cycle behavior remain identical. If you are upgrading from a different-generation module with a different I/O count or channel type, a partial program revision may be needed — our technical team can advise on a case-by-case basis.

Q: Is the 99-5835-01 compatible with Modbus RTU or PROFIBUS communication networks?
A: The 99-5835-01 is an I/O board that communicates via the Eaton backplane bus. Network-level protocols (Modbus RTU, PROFIBUS DP, DeviceNet, etc.) are managed by the communication module or CPU in the same rack. Replacing the I/O board does not affect network protocol configuration or node addressing.

Q: What are the physical installation requirements?
A: The module occupies a single rack slot in a standard Eaton rack chassis. No additional mounting hardware, DIN rail adapters, or cabinet modifications are required. Verify that the target slot’s backplane connector is clean and undamaged before installation.

Q: How do I verify the module is functioning correctly after installation?
A: After seating the module, power up the rack and observe the module’s status LEDs. Connect a programming terminal via the CPU’s programming port and perform a forced I/O test on each channel. Confirm that all field device signals are correctly read and that no diagnostic fault codes are reported in the PLC’s fault table.

Q: What if the replacement module does not resolve the fault condition?
A: If the fault persists after replacing the 99-5835-01, the root cause may lie in the backplane connector, the power supply, or the field wiring rather than the I/O board itself. TOPNLMS provides post-sale technical support to assist with fault isolation. Modules that are confirmed defective on arrival are covered under our 12-month warranty replacement policy.

Warranty Assurance

Every Eaton 99-5835-01 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Before dispatch, each unit undergoes a pre-shipment functional inspection to verify electrical integrity, connector condition, and firmware/hardware revision consistency with the ordered specification.

Our warranty coverage includes:

• DOA (Dead on Arrival) replacement: If the module fails to function upon installation and the fault is confirmed as a manufacturing or handling defect, we will dispatch a replacement unit at no additional cost.
• 12-month functional warranty: Covers failures arising from manufacturing defects under normal industrial operating conditions. Physical damage caused by incorrect installation, overvoltage, or environmental factors outside the module’s rated specifications is excluded.
• Pre-shipment testing: All modules are bench-tested for basic electrical continuity and visual inspection prior to packaging.
• Responsive after-sales support: Our technical team is reachable via email and phone to assist with installation questions, compatibility verification, and fault diagnosis throughout the warranty period.
• Procurement assurance: We maintain stock of the 99-5835-01 to support urgent replacement orders. Express shipping options are available for critical production downtime situations.

For procurement inquiries, technical compatibility questions, or urgent replacement orders, contact the TOPNLMS team directly:

📧 [email protected] | 📞 +86 18359293191
