EATON 9202-ETS-HN1 Ruggedized Industrial Ethernet Switch

Product Overview

EATON 9202-ETS-HN1 Ruggedized Industrial Ethernet Switch: Built for Industrial Resilience in Harsh Environments

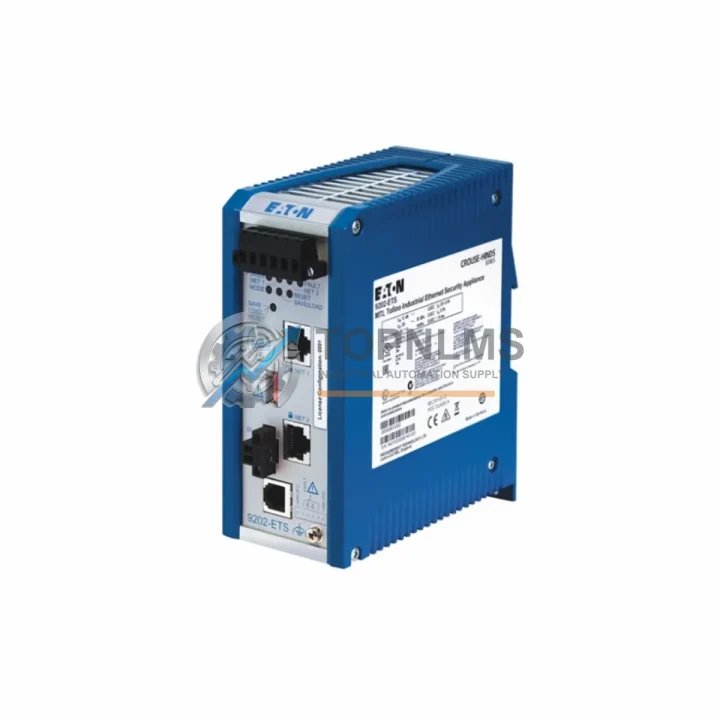

The EATON 9202-ETS-HN1 (part numbers 51154724-300 / NE-FWMB01) is a fully managed industrial Ethernet switch engineered to deliver uninterrupted network communication in the most demanding automation environments. Designed for continuous operation in high-temperature, high-humidity, heavy-vibration, and electromagnetically noisy industrial sites, this switch is a cornerstone component for mission-critical control architectures where network downtime is simply not an option.

Whether deployed in a control cabinet alongside a Siemens S7-400 PLC, integrated into a Rockwell Automation ControlLogix chassis, or serving as the backbone of a distributed DCS network, the 9202-ETS-HN1 provides the deterministic, low-latency Ethernet connectivity that modern industrial systems demand. Its ruggedized construction, wide operating temperature range, and robust EMI shielding make it equally at home in a petrochemical refinery, a coal mine substation, or a steel mill’s continuous casting line.

Rugged Specifications Table

Comprehensive Protection Solutions: Integration with Industrial Control Systems

The EATON 9202-ETS-HN1 is rarely deployed in isolation — it is the network fabric that ties together an entire control system. In a typical heavy-industry control cabinet, this switch provides the Ethernet backbone connecting a Siemens SCALANCE X208 or Hirschmann RS20 ring topology, ensuring PROFINET I/O frames reach remote ET 200SP distributed I/O modules with sub-millisecond determinism. When paired with an EATON XC200 PLC or a Schneider Electric Modicon M580 PAC, the 9202-ETS-HN1 handles EtherNet/IP and Modbus TCP traffic simultaneously without frame collision or latency spikes.

In DCS architectures, this switch serves as the field-level Ethernet node connecting Emerson DeltaV I/O cards or Honeywell C300 controllers to the process control network. Its IGMP snooping capability is critical in multicast-heavy environments where PROFIBUS DP/PA gateways and Modbus RTU-to-TCP converters share the same network segment. The switch’s RSTP (Rapid Spanning Tree Protocol) support enables ring redundancy, so a single cable fault does not interrupt a continuous production line.

For power-sensitive installations, the 9202-ETS-HN1 accepts redundant 24 VDC input — compatible with EATON Power Xpert 9395 UPS systems, Phoenix Contact QUINT-PS industrial power supplies, and standard 24 VDC DIN-rail PSUs. This redundant power architecture, combined with the switch’s wide input voltage tolerance, ensures network continuity even during grid fluctuations common in mining and smelting facilities. Safety relay modules such as the EATON ESR5 safety relay and Pilz PNOZ X safety controllers can be networked through this switch without compromising their SIL-rated response times, provided the network is properly segmented using the switch’s VLAN capabilities.

Communication module compatibility extends to EATON SmartWire-DT gateways, enabling direct integration of motor starters, contactors, and I/O devices into the Ethernet network without additional wiring. Terminal modules and marshalling panels within the same control cabinet benefit from the switch’s compact DIN-rail form factor, which minimizes cabinet footprint while maximizing port density.

Application in Critical Infrastructure

Oil & Gas: Offshore platforms and onshore refineries demand network equipment that withstands salt-laden air, explosive atmospheres (when installed in purged enclosures), and continuous vibration from rotating machinery. The 9202-ETS-HN1’s wide-temperature rating and conformal coating options make it suitable for wellhead control panels and SCADA RTU cabinets where ambient temperatures can swing from -20°C at night to +60°C under direct sun exposure.

Mining & Minerals Processing: Underground coal mines and open-pit copper operations subject network equipment to coal dust ingress, high humidity from water sprays, and mechanical shock from blasting operations. The 9202-ETS-HN1’s IP30-rated enclosure and IEC 60068-2-27 shock resistance ensure reliable communication between conveyor belt PLCs, crusher drive VFDs, and the surface SCADA system — even in the harshest sub-surface environments.

Electric Power Generation & Transmission: Substations and power plant control rooms are among the most electromagnetically hostile environments in industry. High-voltage switching operations generate transient voltages and radiated EMI that can corrupt data frames on lesser switches. The 9202-ETS-HN1’s IEC 61000-4 compliance — covering surge, EFT/burst, conducted immunity, and radiated immunity — ensures that protection relay communications and energy management system data flows remain uncorrupted during switching events.

Water & Wastewater Treatment: Municipal water treatment plants and industrial effluent systems require 24/7 network uptime to maintain dosing pump control, flow meter data acquisition, and alarm management. The 9202-ETS-HN1 supports SCADA polling cycles over Modbus TCP while simultaneously handling PROFINET I/O updates for chemical dosing skids — all within a single managed switch platform.

Metallurgy & Steel: Continuous casting lines and rolling mills generate intense electromagnetic interference from large induction furnaces and DC drive systems. The 9202-ETS-HN1’s shielded design and EMC-hardened circuitry maintain network integrity in these environments, supporting real-time communication between rolling mill PLCs, pyrometer data acquisition systems, and MES (Manufacturing Execution System) servers.
