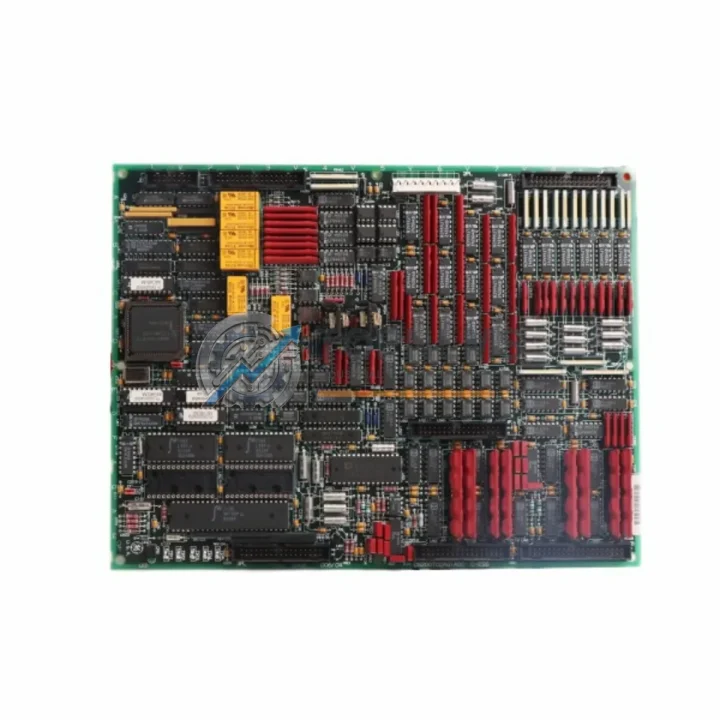

GE DS200TCQAG1BHF Ruggedized Analog I/O Module

Product Overview

GE DS200TCQAG1BHF Ruggedized Analog I/O Module for Harsh Environments

The GE DS200TCQAG1BHF is a high-reliability RST Analog I/O Board engineered for the General Electric Mark V LCI (Load Commutated Inverter) turbine control platform. Designed to operate continuously in the most demanding industrial environments — including high-temperature turbine halls, high-humidity coastal facilities, dust-laden mining sites, and vibration-intensive heavy manufacturing floors — this module delivers the signal integrity and operational stability that mission-critical infrastructure demands.

As a core component of the GE Mark V control architecture, the DS200TCQAG1BHF handles RST-phase analog signal acquisition and conditioning, providing the turbine control system with precise real-time feedback essential for safe and efficient power generation. Its ruggedized PCB construction, conformal coating, and robust connector design make it inherently resistant to the corrosive atmospheres, electromagnetic interference (EMI), and mechanical shock common in oil & gas, power generation, and petrochemical facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200TCQAG1BHF does not operate in isolation — it is one node in a tightly integrated GE Mark V control architecture. In a fully configured turbine control cabinet, this analog I/O board works in concert with the DS200TCDAG1AAA (Mark V I/O terminal board) and the DS200SDCCG1AFB (system dynamic control card) to maintain closed-loop turbine speed and load regulation. The DS200TCQBG1BHF serves as a closely related variant within the same TCQA board family, and both are often stocked together as paired spares to minimize downtime risk.

For power conditioning and protection within the same control enclosure, the DS200TCPSG1A power supply board provides regulated DC rails to the Mark V I/O subsystem, ensuring that analog signal accuracy is never compromised by voltage fluctuations. In high-EMI environments such as those near large variable frequency drives (VFDs) or motor control centers (MCCs), the signal integrity of analog I/O modules is particularly vulnerable — making proper shielding, grounding, and the use of quality components like the DS200TCQAG1BHF essential.

Communication between the Mark V controller and plant-level SCADA or DCS systems is typically handled through the DS200TCQCG1B communication interface board or compatible Modbus/PROFIBUS gateway modules. Relay output modules such as the DS200TCEAG1BHF handle discrete trip and alarm outputs, while the DS200TCRAG1A provides additional analog reference signal processing. Together, these boards form a complete, redundant control solution capable of sustaining continuous operation across the harshest industrial duty cycles.

For facilities managing multiple GE Mark V turbine trains, maintaining a curated spare parts inventory — including analog I/O boards, power supply modules, communication cards, and terminal boards — is a recognized best practice for reducing mean time to repair (MTTR) and avoiding costly unplanned outages.

Application in Critical Infrastructure

The GE DS200TCQAG1BHF is deployed across a wide spectrum of critical infrastructure sectors where turbine-driven generation or compression is central to operations.

In natural gas power plants and combined-cycle facilities, GE Frame 5, Frame 6, and Frame 7 gas turbines controlled by Mark V LCI systems rely on analog I/O boards like the DS200TCQAG1BHF to monitor RST-phase currents and voltages during startup, synchronization, and load-following operations. Any degradation in analog signal fidelity can trigger nuisance trips or, worse, mask developing faults — making board-level reliability non-negotiable.

In offshore oil & gas platforms and LNG terminals, the combination of salt-laden air, high humidity, and continuous vibration from rotating machinery creates an exceptionally hostile environment for electronics. The conformal-coated construction of the DS200TCQAG1BHF provides a meaningful barrier against corrosion and moisture ingress, extending service life well beyond that of unprotected alternatives.

In mining and mineral processing operations, where large synchronous motors and compressors are driven by LCI systems, the Mark V platform’s analog I/O subsystem must withstand heavy dust loading, wide ambient temperature swings, and the electromagnetic noise generated by high-power thyristor drives. The DS200TCQAG1BHF’s robust design addresses all three challenges simultaneously.

In water treatment and pumping stations operating large variable-speed pump drives, and in steel mills and aluminum smelters where continuous casting lines demand uninterrupted power and precise motor control, the Mark V LCI system — and by extension the DS200TCQAG1BHF — plays a foundational role in maintaining production continuity.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all functional defects attributable to component failure or manufacturing quality under normal operating conditions. If the DS200TCQAG1BHF fails to perform its specified analog I/O functions within the warranty period, we will provide a replacement or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is each unit tested before shipment?
Every DS200TCQAG1BHF board undergoes a multi-stage inspection and functional test protocol prior to dispatch. This includes visual inspection for physical damage, power-on verification, analog signal path continuity testing, and where applicable, bench-level simulation of Mark V I/O bus communication. Only units that pass all test stages are released for shipment.

Q3: Is this board compatible with all Mark V LCI configurations?
The DS200TCQAG1BHF is designed specifically for the GE Mark V LCI (Load Commutated Inverter) turbine control platform. It is a direct form-fit-function replacement for the original OEM board. Compatibility with specific Mark V sub-variants (e.g., Mark V TMR, Mark V simplex) should be confirmed against your system’s board revision and firmware level. Our technical team is available to assist with compatibility verification prior to purchase.

Q4: Can you support long-term or repeat supply for maintenance programs?
Yes. TOPNLMS maintains a dedicated inventory of GE Mark V series boards, including the DS200TCQAG1BHF and related analog I/O, power supply, and communication modules. We support planned maintenance programs, annual spare parts agreements, and emergency breakdown supply. For volume pricing, lead time commitments, or consignment stock arrangements, please contact our industrial supply team directly.
