GE DS200TCDAG1ADA Ruggedized Digital I/O Module for Harsh Environments

Product Overview

GE DS200TCDAG1ADA Ruggedized Digital I/O Module for Harsh Environments

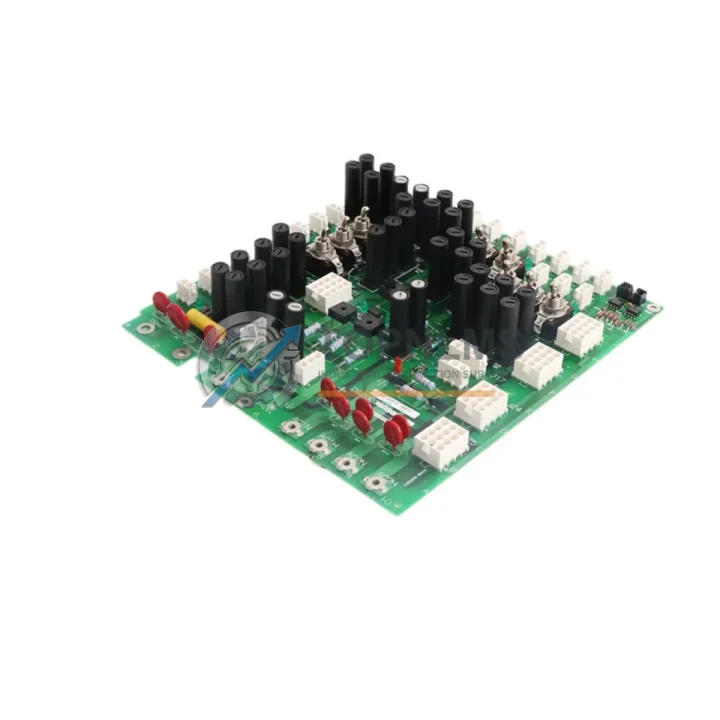

The GE DS200TCDAG1ADA is a high-reliability Digital I/O Board engineered for the GE Mark V Turbine Control System — one of the most widely deployed turbine management platforms in the global power generation and heavy industrial sectors. Designed to operate continuously in environments characterized by extreme temperature fluctuations, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and operational stability that mission-critical infrastructure demands.

In turbine control architectures, the digital I/O board serves as the nerve center for discrete signal exchange between field instrumentation and the central control processor. The DS200TCDAG1ADA manages digital input and output channels that interface directly with protective relays, solenoid valves, limit switches, and emergency shutdown (ESD) actuators. Its robust PCB construction, conformal coating, and industrial-grade component selection ensure that signal fidelity is maintained even when the control cabinet is exposed to the thermal cycling and vibration loads common in gas turbine enclosures, steam turbine halls, and combined-cycle power plants.

Within the Mark V system architecture, the DS200TCDAG1ADA works in close coordination with companion boards such as the DS200TCQAG1BHF Quad Core Processor Board, the DS200TCEAG1BHF I/O Terminal Board, and the DS200TCPSG1A Power Supply Board. Together, these modules form a tightly integrated control backbone that governs turbine startup sequences, load control, overspeed protection, and flame detection logic. The integrity of each I/O channel on the DS200TCDAG1ADA directly influences the response time and accuracy of the entire protective relay chain — making it a safety-critical component that must never be compromised by substandard replacement parts.

Field engineers working in oil and gas compression stations, petrochemical processing plants, and offshore platform power modules frequently cite the DS200TCDAG1ADA as a high-priority spare. When a digital I/O board fails in a continuous production environment, the consequences extend beyond equipment downtime — they can trigger cascading safety system activations, unplanned turbine trips, and costly production losses. Maintaining a verified, tested spare on-site is a standard risk mitigation practice endorsed by OEM maintenance guidelines and third-party reliability programs alike.

The DS200TCDAG1ADA is also compatible with adjacent Mark V subsystems including the DS200TCRAG1AHF Relay Output Board, the DS200TCDAH1BHF Digital I/O Expansion Board, and the DS200TCPAG1A Analog I/O Board. In installations where the Mark V communicates with distributed control systems (DCS) via ARCNET or RS-422 serial communication modules, the digital I/O board’s channel assignments must be precisely configured to match the system’s I/O map — a requirement that underscores the importance of sourcing an exact-match replacement rather than a generic substitute.

At TOPNLMS, every DS200TCDAG1ADA unit undergoes a structured pre-shipment inspection protocol. Each board is visually inspected for component damage, corrosion, and solder joint integrity, then subjected to functional verification testing to confirm channel continuity and logic response. Units are shipped in anti-static packaging with moisture barrier protection, ensuring they arrive in field-ready condition regardless of transit duration or climate zone.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable turbine control depends on the seamless interaction of every module within the Mark V cabinet. The DS200TCDAG1ADA operates as part of a layered protection architecture that begins at the field sensor level and extends through to the supervisory control layer. Alongside the DS200TCQAG1BHF Quad Core Processor Board — which executes the turbine’s core control algorithms — the digital I/O board ensures that discrete signals from flame detectors, vibration sensors, and position switches are accurately captured and acted upon within the system’s scan cycle.

Power integrity is maintained by the DS200TCPSG1A Power Supply Board, which provides regulated DC power to all Mark V I/O modules including the DS200TCDAG1ADA. In installations where relay-driven output circuits are required for ESD valve actuation, the DS200TCRAG1AHF Relay Output Board works in parallel with the digital I/O board to provide hardwired trip outputs that remain active even during processor faults. The DS200TCEAG1BHF I/O Terminal Board serves as the field wiring interface, consolidating all field cable terminations and providing surge protection at the cabinet boundary.

For plants operating mixed-generation fleets or integrating legacy Mark V systems with modern DCS platforms, the DS200TCPAG1A Analog I/O Board and dedicated ARCNET communication modules extend the system’s data exchange capabilities. In high-vibration environments such as gas compression stations or mining conveyor drives, the DS200TCDAH1BHF Digital I/O Expansion Board provides additional channel capacity without requiring a full system upgrade. Each of these components is available through TOPNLMS with the same pre-shipment testing and 12-month warranty coverage applied to the DS200TCDAG1ADA.

Application in Critical Infrastructure

The DS200TCDAG1ADA is deployed across some of the world’s most demanding industrial environments. In natural gas power plants and combined-cycle facilities, it governs the digital I/O logic for gas turbine startup interlocks, compressor anti-surge protection, and generator synchronization sequences. A single failed I/O channel in this context can prevent a turbine from reaching operational speed or, more critically, delay an emergency shutdown during an overpressure event.

In oil and gas upstream and midstream operations — including offshore platforms, onshore compression stations, and LNG liquefaction trains — the Mark V system’s digital I/O boards are exposed to salt-laden air, hydrocarbon vapors, and continuous mechanical vibration from rotating equipment. The DS200TCDAG1ADA’s conformal coating and robust connector design make it well-suited for these conditions, where board replacement cycles are dictated by operational necessity rather than scheduled maintenance windows.

In metallurgical and mining operations, where electric arc furnaces, rolling mills, and ore processing conveyors generate significant electromagnetic interference, the DS200TCDAG1ADA’s shielded backplane interface and noise-immune digital input circuits maintain signal integrity across long cable runs from field instruments to the control room. Water treatment facilities and municipal power utilities similarly rely on Mark V-based control systems for pump station automation and grid-connected generation management, where the DS200TCDAG1ADA’s long-term availability as a spare part is a key factor in asset lifecycle planning.
