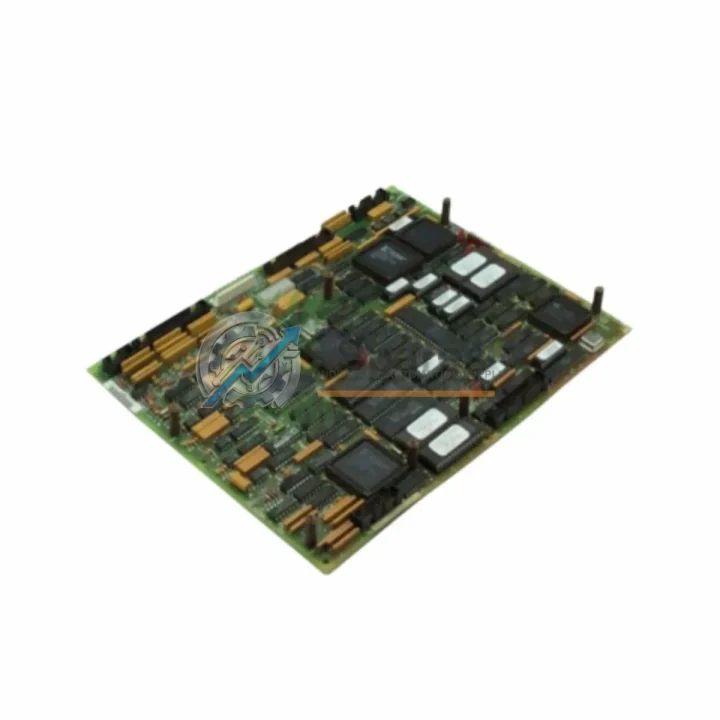

GE DS200SDCCGSAHD Ruggedized Signal Conditioning Module

Product Overview

GE DS200SDCCGSAHD Ruggedized Signal Conditioning Module: Industrial Resilience for Harsh Environments

The GE DS200SDCCGSAHD is a discrete signal conditioning board engineered for the GE Mark VI Triple Modular Redundancy (TMR) control system — one of the most demanding and safety-critical DCS architectures deployed in power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate continuously in environments characterized by extreme temperature swings, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and fault tolerance that mission-critical infrastructure demands.

At its core, the DS200SDCCGSAHD conditions discrete I/O signals between field instrumentation and the Mark VI controller backbone, ensuring that every digital input and output — from valve position feedback to emergency shutdown triggers — is accurately captured, filtered, and transmitted without corruption. In a TMR architecture, three independent signal paths are compared and voted upon in real time, meaning that even a single-channel fault does not interrupt control. The DS200SDCCGSAHD is the front-line component that makes this redundancy meaningful at the field interface level.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200SDCCGSAHD does not operate in isolation — it is one node in a tightly integrated Mark VI control architecture where every component must perform reliably under the same harsh conditions. In a typical turbine control panel, this signal conditioning board works in concert with the DS200TCQAG1BHF Quad Core Processor Board, which handles the TMR voting logic and system-level diagnostics. Field power for discrete I/O circuits is commonly supplied through the DS200TCPSG1A Power Supply Board, which provides regulated 24 VDC rails with built-in overvoltage and short-circuit protection — essential in environments where power quality fluctuates due to heavy motor loads or generator switching transients.

For analog signal conditioning alongside discrete channels, the DS200SDCIG2AGB Analog Signal Conditioning Board is frequently installed in the same I/O rack, handling 4–20 mA and thermocouple inputs from temperature sensors, pressure transmitters, and flow meters. Communication between the Mark VI controller and plant-level SCADA or DCS networks is managed through modules such as the DS200TCRAG1AAA Communication Interface Board, which supports Modbus, Profibus, and Ethernet-based protocols — ensuring that the DS200SDCCGSAHD’s conditioned signals are accurately reflected in the plant historian and operator workstation displays.

In safety-instrumented system (SIS) applications, the DS200SDCCGSAHD is often paired with dedicated GE Mark VI Safety Relay Output Modules that interface with emergency shutdown valves and fire-and-gas detection systems. Terminal modules such as the DS200TCEAG1BHF Terminal Board provide the physical field wiring interface, accepting cable terminations from junction boxes and marshalling panels while maintaining signal isolation. For installations in classified hazardous areas — Zone 1 or Zone 2 gas environments — Zener barrier assemblies and galvanic isolators are installed upstream of the DS200SDCCGSAHD to limit energy in the field loop and protect both personnel and equipment.

Across all these components, the common requirement is the ability to sustain continuous operation through vibration from rotating machinery, thermal cycling from outdoor ambient exposure, and electromagnetic noise from variable frequency drives (VFDs), large contactors, and high-voltage bus bars. The DS200SDCCGSAHD is built to meet these demands, and TOPNLMS stocks the full range of complementary Mark VI boards to support complete system builds, emergency replacements, and planned maintenance outages.

Application in Critical Infrastructure

In combined-cycle power plants, the DS200SDCCGSAHD is a core component of the gas turbine control system, conditioning discrete signals from inlet guide vane actuators, fuel control valves, lube oil pressure switches, and flame detectors. A single unplanned turbine trip can cost an operator tens of thousands of dollars per hour in lost generation revenue — making the reliability of every I/O board in the Mark VI rack a direct financial and operational concern. Facilities that maintain a spare DS200SDCCGSAHD on-site can restore control system function within minutes rather than waiting weeks for OEM procurement.

In offshore oil and gas platforms and onshore LNG terminals, the module operates within pressurized control rooms or Ex-rated enclosures, managing discrete signals from wellhead safety valves, high-integrity pressure protection systems (HIPPS), and emergency depressurization actuators. The TMR architecture of the Mark VI — and the DS200SDCCGSAHD’s role within it — is specifically valued in these environments because SIL 2 and SIL 3 functional safety requirements demand that no single point of failure can cause a spurious trip or a failure to trip on demand.

In mining and mineral processing operations, where conveyors, crushers, ball mills, and flotation cells generate constant vibration and airborne conductive dust, the DS200SDCCGSAHD’s robust PCB construction and conformal coating provide protection against particulate contamination and moisture ingress. Steel mills and aluminum smelters present similar challenges, with the added burden of intense radiated heat from furnaces and strong magnetic fields from arc furnaces and induction heaters — conditions under which lesser I/O boards suffer premature component failure.

Water and wastewater treatment plants rely on the Mark VI platform for pump station control, chemical dosing systems, and SCADA integration, where the DS200SDCCGSAHD conditions signals from level switches, flow meters, and motor protection relays across geographically distributed pump stations. In all these sectors, the ability to source a tested, warranted replacement board quickly — without navigating OEM lead times that can stretch to 16–26 weeks — is a critical procurement advantage that TOPNLMS is positioned to provide.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all functional defects arising under normal operating conditions, including component failure, signal processing errors, and communication faults attributable to the board itself. If a warranty issue arises, contact TOPNLMS at [email protected] or +86 18359293191 with your order number and a description of the fault. Our technical team will assess the issue and arrange repair, replacement, or credit within a mutually agreed timeline. The warranty period begins from the date of shipment.

Q2: How is each DS200SDCCGSAHD tested before shipment?
Every unit undergoes a multi-stage inspection process: visual inspection for physical damage, component-level continuity testing, functional power-on verification, and where applicable, rack-level integration testing against a reference Mark VI system. Units that do not pass all stages are quarantined and not offered for sale. A test report is available upon request for critical procurement applications.

Q3: Is the DS200SDCCGSAHD compatible with both Mark VI and Mark VIe systems?
The DS200SDCCGSAHD is designed for the GE Mark VI TMR platform. Compatibility with Mark VIe depends on the specific I/O rack configuration and firmware revision in use at your site. TOPNLMS recommends providing your system serial number and rack configuration details so our technical team can confirm cross-compatibility before shipment. We maintain application engineering support to assist with substitution and interoperability questions.

Q4: Can TOPNLMS support long-term or repeat supply of Mark VI components?
Yes. TOPNLMS maintains a dedicated inventory of GE Mark VI series boards, including DS200-series I/O modules, processor boards, power supply boards, and terminal boards, to support both emergency replacement and planned maintenance programs. We work with plant maintenance teams, MRO procurement departments, and EPC contractors to establish framework agreements that guarantee stock availability, agreed lead times, and consistent pricing over multi-year horizons. Contact us to discuss your site’s specific Mark VI component requirements.
