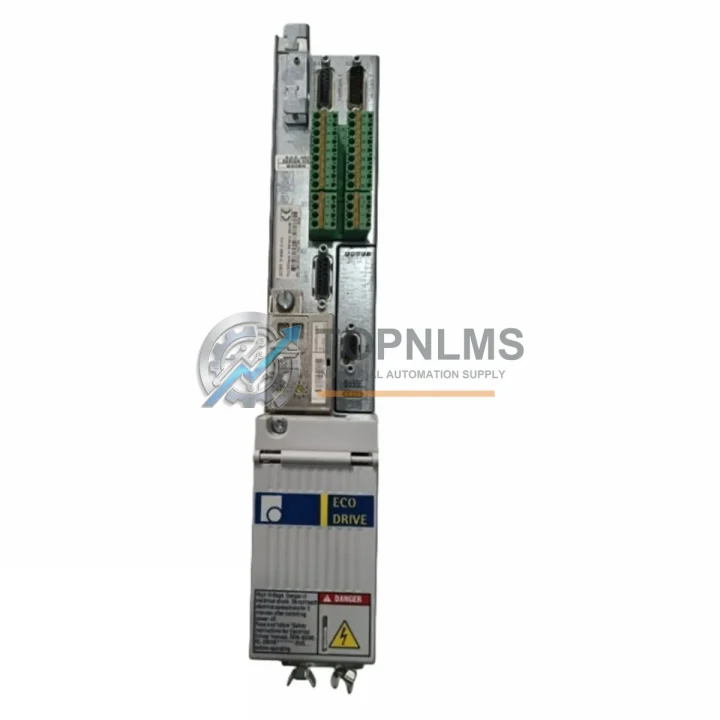

Rexroth DKC03.3-040-7-FW Replacement for ECODRIVE 03

Product Overview

Rexroth DKC03.3-040-7-FW Replacement for ECODRIVE 03: Seamless Transition & Legacy System Compatibility

The Bosch Rexroth DKC03.3-040-7-FW is a 40 A AC servo drive from the ECODRIVE 03 series, widely deployed in CNC machining centers, injection molding machines, printing presses, and general-purpose motion-control systems. As the ECODRIVE 03 platform approaches end-of-life and spare-part availability tightens, plant engineers and procurement teams face increasing pressure to source verified replacement units or plan a structured upgrade path—without triggering a full machine retrofit.

TOPNLMS stocks tested, ready-to-ship DKC03.3-040-7-FW units and provides pre-sales technical support to confirm compatibility with your existing wiring harness, motor feedback cables, and control-cabinet layout before you commit to an order.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DKC03.3-040-7-FW replacement rarely involves the drive alone. In most ECODRIVE 03 installations, the drive shares a common DC bus with a HMV01.1E or HMV01.1R mains supply module, which must be verified for adequate power headroom before commissioning the replacement unit. The DC bus capacitor bank and bleeder resistor inside the supply module are common wear items on aging systems and should be inspected at the same time.

On the motor side, the MKD071B or MKD090B synchronous servo motors are the most frequently paired actuators with the 40 A drive variant. If the motor’s EnDat encoder cable (typically a IKS4044 or IKS4045 pre-assembled feedback cable) shows insulation degradation, replacing it alongside the drive eliminates a common root cause of F8 encoder faults after reinstallation.

For multi-axis systems, the DKC03.3-016-7-FW and DKC03.3-100-7-FW are the adjacent current-class siblings in the ECODRIVE 03 family. Stocking one spare of each class alongside the 40 A unit is a practical approach for facilities running mixed-axis gantry or multi-spindle configurations.

Communication topology is another critical checkpoint. Systems using SERCOS II fiber-optic rings require the correct CSB01.1N SERCOS master card in the controller (typically an IndraControl L40 or IndraControl L65 IPC). Verifying the SERCOS baud rate setting (2, 4, 8, or 16 Mbit/s) in the drive parameters before power-up prevents ring initialization errors that are often misdiagnosed as hardware faults. For installations migrating from PROFIBUS-DP, the CSB01.1N-PB communication module must be present and the GSD file updated in the PLC project (Siemens S7-300/400 or equivalent).

In control-cabinet retrofits where space is at a premium, the NFD03.1 mains filter and HAS02.1 shield connection plate are frequently reused from the outgoing drive without modification, as they share the same mounting geometry across the ECODRIVE 03 range. Confirming that the filter’s leakage current rating is compatible with the site’s RCD protection is a mandatory step before energizing the replacement.

Finally, for on-site parameter backup and firmware management, the IndraWorks DS engineering software (or its successor IndraWorks MLD) running on a Windows-based programming laptop with a IBS-S5-DSC/I-T or standard RS-232 service cable is required to upload the axis parameter set from the outgoing drive before removal—preserving tuning data, homing offsets, and safety limits that would otherwise need to be re-established from machine documentation.

Retrofit Guidance FAQ

Q: Can I swap the DKC03.3-040-7-FW directly without re-wiring the motor power cable?
A: Yes. The X6 motor power connector pinout is identical across the DKC03.3 series. The U/V/W phase assignment and PE terminal positions are unchanged, so the existing motor cable can be reconnected without modification. Verify cable insulation resistance (≥1 MΩ at 500 V DC) before reconnecting.

Q: Do I need to re-flash the firmware after installing the replacement drive?
A: If the replacement unit ships with the same firmware version (FWA-ECODR3-SGP-03VRS-MS or equivalent) as the outgoing drive, no re-flash is required. If versions differ, use IndraWorks DS to load the correct firmware file from the Rexroth firmware archive before restoring axis parameters. Always match the firmware variant (SGP, SMT, etc.) to your application type.

Q: Will the SERCOS II ring re-initialize automatically after drive replacement?
A: The SERCOS ring will re-initialize provided the drive address (S-0-0096) is set to the same node number as the outgoing unit. This parameter is stored in the drive’s non-volatile memory and must be re-entered after replacement. The ring master (PLC or CNC) will then re-establish communication during the next power cycle without changes to the PLC program.

Q: The original drive had a PROFIBUS-DP option card. Is it transferable?
A: The PROFIBUS-DP option card (slot X31) is a separate plug-in module and is physically transferable to a same-generation DKC03.3 replacement unit. Confirm the option card firmware version is compatible with the drive firmware before transfer. If the card is damaged, a replacement CSB01.1N-PB module can be sourced separately.

Q: How do I handle the physical space if the replacement drive is slightly deeper?
A: The DKC03.3-040-7-FW has a standard depth of 270 mm (excluding connectors). Cabinet depth requirements are identical to other DKC03.3 units. If migrating from a DKC01 or DKC02 unit with a different depth profile, verify rear cable clearance and adjust cable management brackets as needed.

Q: Can I use the existing brake resistor (RB) with the replacement drive?
A: Yes, provided the resistor’s ohmic value and peak power rating meet the DKC03.3-040-7-FW specifications (typically 15–100 Ω, ≥1 kW peak). The X5 brake resistor connector pinout is unchanged. Verify the resistor’s thermal condition before reuse on a replacement drive.

Warranty Assurance

Every DKC03.3-040-7-FW unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Our pre-shipment inspection protocol includes:

• Power-on functional test at rated voltage (3 × 400 V AC)
• DC bus charge/discharge cycle verification
• Communication interface handshake test (SERCOS II / PROFIBUS-DP as applicable)
• Firmware version confirmation and documentation
• Visual inspection for capacitor bulge, PCB corrosion, and connector integrity
• Packaging in anti-static foam with humidity indicator card

If a unit develops a fault within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement dispatch or full refund. Our technical team responds to after-sales inquiries within 24 hours on business days. Expedited replacement units for critical production lines can be arranged upon request.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Export compliance and customs documentation for cross-border orders (including CN22/CN23 and HS code 8537.10) are prepared as standard.
