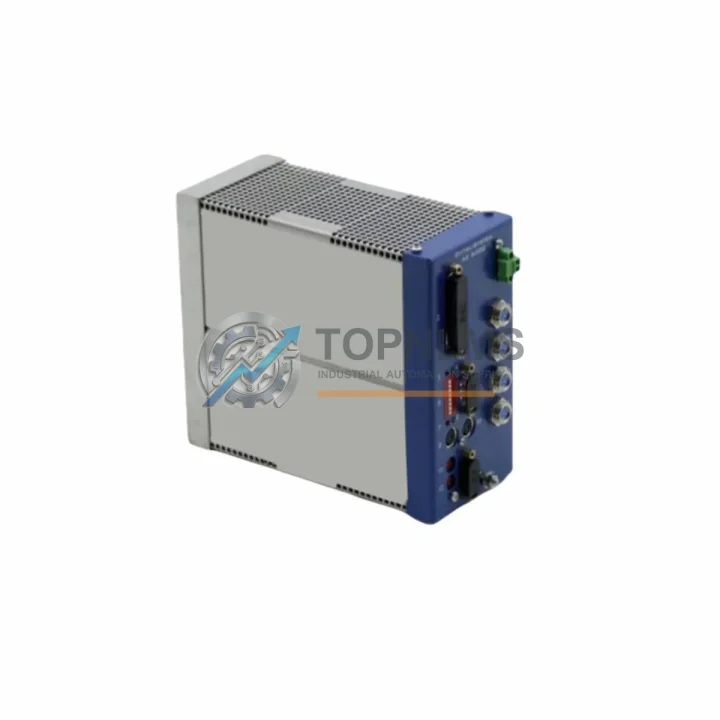

DITTEL-SYSTEM F62001 AE6000 Ruggedized Acoustic Emission Module for Harsh Environments

Product Overview

DITTEL-SYSTEM F62001 AE6000 Ruggedized Acoustic Emission Module for Harsh Environments

The DITTEL-SYSTEM F62001 AE6000 Acoustic Emission Module is an industrial-grade sensing and signal-processing component engineered for continuous, reliable operation in the most demanding manufacturing and process-control environments. Designed within DITTEL-SYSTEM’s proven AE6000 series architecture, this module captures high-frequency acoustic emission signals generated by mechanical stress, material fatigue, tool wear, and structural anomalies — delivering real-time diagnostic data that protects critical machinery and prevents unplanned downtime.

In high-temperature foundries, vibration-intensive machining centers, dusty mining operations, and chemically aggressive process plants, the F62001 AE6000 maintains signal integrity where conventional monitoring hardware fails. Its ruggedized housing and shielded signal paths resist electromagnetic interference (EMI) from variable-frequency drives, high-current bus bars, and adjacent power switching equipment — ensuring that acoustic emission data reaching the control system is clean, accurate, and actionable.

Rugged Specifications Table

Comprehensive Protection Solutions

The F62001 AE6000 does not operate in isolation — it is most effective when integrated into a layered industrial protection and control architecture. In a typical CNC grinding or precision machining cell, the module works alongside the DITTEL-SYSTEM KG6000 grinding controller, which interprets AE signals to detect wheel contact, workpiece engagement, and dressing cycles with microsecond precision. The AE6000 sensor signal is conditioned and routed through the F62001 module before being processed by the KG6000’s embedded DSP, enabling adaptive feed control and automatic collision avoidance without operator intervention.

At the PLC level, the F62001 AE6000 interfaces cleanly with Siemens S7-300 and S7-400 series digital input modules, as well as with Rockwell Automation ControlLogix I/O cards, allowing acoustic emission threshold events to trigger safety interlocks or alarm outputs within the main control program. In DCS environments — such as those built on ABB System 800xA or Honeywell Experion PKS — the module’s analog or digital output can be mapped to process historian tags, enabling long-term trend analysis of tool wear and bearing degradation.

Power supply stability is equally critical. The F62001 AE6000 is typically powered from a 24 VDC rail supplied by a SITOP PSU100S or equivalent DIN-rail industrial power supply with active PFC and output buffering, ensuring the module remains operational during brief mains interruptions common in heavy industrial facilities. Surge protection terminal blocks — such as those from Phoenix Contact’s TERMITRAB series — are recommended at the field wiring entry point to protect the module’s sensitive analog front-end from transient overvoltages caused by nearby motor starts or lightning coupling.

For safety-rated applications in SIL 2 or SIL 3 environments, the AE6000 module is often deployed alongside Pilz PNOZ safety relays or Siemens SIRIUS 3SK safety relay modules, which monitor the AE system’s health output and initiate a safe-state response if the monitoring chain is interrupted. Communication to the safety PLC is handled via ProfiSafe over PROFIBUS DP or PROFINET IO, depending on the plant’s network topology. In legacy installations, DITTEL-SYSTEM’s own RS-485 serial interface cards provide backward-compatible connectivity to older Siemens S5 or Allen-Bradley SLC 500 controllers still in service at many metallurgical and power-generation sites.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, acoustic emission monitoring is a recognized technique for detecting incipient bearing failure in high-speed compressors, pipeline pumps, and wellhead control valves. The DITTEL-SYSTEM F62001 AE6000 is deployed in these environments because it can distinguish genuine AE events from background noise generated by turbulent flow, cavitation, and mechanical vibration — a capability that generic vibration sensors lack. Offshore platform operators and onshore gas processing facilities rely on the AE6000 series to extend mean time between maintenance (MTBM) intervals and reduce the risk of catastrophic seal or bearing failure in safety-critical rotating equipment.

In electric power generation — including coal-fired, gas turbine, and hydroelectric plants — the F62001 AE6000 monitors generator bearings, turbine blade integrity, and transformer partial discharge activity. Its wide acoustic frequency range captures both low-energy micro-crack propagation and high-energy structural events, giving maintenance engineers early warning of developing faults before they escalate to forced outages. The module’s output integrates directly with plant DCS historian systems, supporting IEC 61511 functional safety management requirements for continuous process monitoring.

In metallurgical and heavy manufacturing environments — steel rolling mills, aluminum smelters, and large-scale press shops — the F62001 AE6000 is mounted on roll bearings, press frames, and die-casting machines to detect abnormal contact stress and lubrication breakdown. Its resistance to the high ambient temperatures, airborne metallic dust, and intense electromagnetic fields characteristic of these facilities makes it a preferred choice over piezoelectric accelerometers that require frequent recalibration in such conditions. Water treatment and municipal infrastructure operators similarly deploy the AE6000 series on pump stations and valve actuators, where early fault detection prevents service interruptions that would affect public health and regulatory compliance.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the F62001 AE6000 fails to perform to its published specification within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions and an RMA number will be provided within 2 business days.

Q2: How is each unit tested before shipment?
Every F62001 AE6000 unit in TOPNLMS inventory undergoes a pre-shipment functional verification that includes power-on self-test, signal output continuity check, and visual inspection for physical damage or counterfeit indicators. Units sourced as surplus new are additionally inspected for date codes and manufacturing lot consistency. Only units that pass all checks are released for shipment, and a test record is retained for traceability.

Q3: Is the F62001 AE6000 compatible with my existing DITTEL-SYSTEM or third-party control system?
The F62001 AE6000 is designed for use within the DITTEL-SYSTEM AE6000 series ecosystem and is backward-compatible with earlier AE6000 controller variants. For integration with third-party PLC or DCS platforms — including Siemens, Rockwell, ABB, and Schneider Electric systems — the module’s analog and digital I/O outputs are industry-standard and can be mapped to any controller with appropriate input cards. TOPNLMS technical staff can advise on interface wiring and configuration based on your specific control system architecture.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains stock of DITTEL-SYSTEM AE6000 series modules and related components to support both planned maintenance programs and emergency breakdown situations. For customers operating continuous production lines or safety-critical infrastructure where downtime is not acceptable, we recommend establishing a consignment or blanket-order arrangement to guarantee availability. Contact [email protected] or call +86 18359293191 to discuss long-term supply agreements and lead-time commitments.
