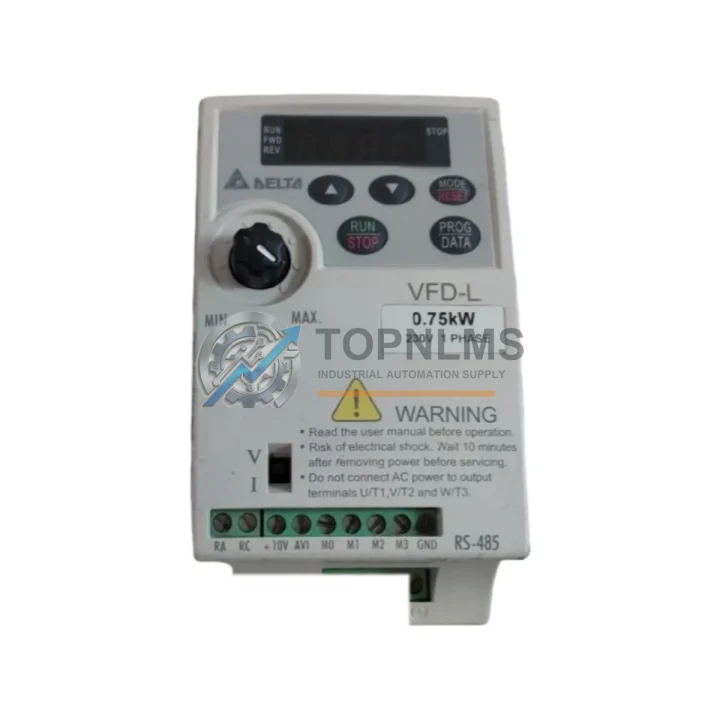

Delta VFD007L21A Replacement for VFD-L Series

Product Overview

Delta VFD007L21A Replacement for VFD-L Series: Smooth Transition & Legacy System Compatibility

When your existing Delta VFD007L21A reaches end-of-life or becomes difficult to source, upgrading within the VFD-L Series platform is the most cost-effective path to restoring machine availability without redesigning your control cabinet. The VFD007L21A is a 0.75 kW, single-phase 200–240 V AC variable frequency drive from Delta Electronics’ VFD-L Series — a compact, general-purpose inverter widely deployed in light industrial machinery, conveyor systems, pump control, and HVAC fan applications across Asia and globally.

This listing provides a verified, tested replacement unit for the VFD007L21A, sourced directly from authorized supply channels. Whether you are managing a planned retrofit, responding to an unplanned failure, or building a spare-parts buffer for a multi-drive installation, this unit ships ready for immediate installation with full documentation support.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VFD007L21A migration rarely involves the drive alone. In most field installations, the drive operates as part of a broader Delta automation ecosystem. During the replacement process, engineers frequently inspect and — where necessary — upgrade adjacent components to ensure system-level reliability.

On the communication side, the VFD-L Series relies on RS-485 Modbus RTU for integration with upstream controllers. If your installation uses a Delta DVP-series PLC (such as the DVP14SS211R or DVP32EH00R3) as the master controller, verifying the RS-485 port configuration and baud rate settings before commissioning the replacement drive will prevent communication faults. In multi-drive topologies where several VFD-L units share a single RS-485 bus, the DVP-ES2 or DVP-EH3 series PLCs with built-in COM2 ports handle multi-node polling efficiently without additional communication modules.

For installations that use a Delta AS-series controller (AS332T-A or AS228T-A), the HWCONFIG utility allows direct parameter mapping to the replacement VFD007L21A via the ASD-A2 communication card or through the onboard RS-485 port, preserving existing ladder logic without rewriting drive control blocks.

On the power supply side, the VFD007L21A draws from a single-phase 200–240 V source. If the control cabinet also houses a Delta DVP series digital I/O expansion module (such as the DVP08XN211R) or a Delta DTA temperature controller sharing the same 24 V DC rail, confirm that the SMPS (switching mode power supply) — typically a Delta DRP024V060W1AZ or equivalent — has sufficient headroom after the drive’s inrush current at startup.

Wiring compatibility is one of the most critical factors in a drop-in replacement. The VFD007L21A uses a standard L-Series terminal block layout: R/S/T for AC input, U/V/W for motor output, and a dedicated control terminal strip for analog inputs (AVI, ACI), digital inputs (MI1–MI3), relay outputs (RA, RB, RC), and the RS-485 port (SG+, SG−). If the original installation used a pre-wired terminal module — such as a Phoenix Contact or Weidmüller DIN-rail terminal block assembly — the replacement unit’s terminal pitch is identical, allowing the existing wire harness to be reconnected without re-labeling or re-routing.

In cabinet installations where space is constrained, the VFD007L21A’s compact footprint (approximately 130 × 68 mm face) fits standard 35 mm DIN rail sections without requiring additional mounting brackets. If the adjacent components include a Delta EMC filter (such as the DVEF-4D or DVEF-7D series) for conducted emission compliance, the filter can be retained and reconnected to the replacement unit’s input terminals without modification.

For sites that use Delta’s WPLSoft or ISPSoft programming environments to manage drive parameters via the PLC’s COM port, the VFD007L21A parameter set (P00–P99 group) is fully compatible with existing parameter backup files created from the original unit. This means commissioning time is reduced to uploading the saved parameter file, verifying motor nameplate data, and running a short no-load test before returning the machine to production.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor wiring when replacing the VFD007L21A?
A: Yes. The U/V/W output terminals on the replacement unit are pin-compatible with the original. Verify motor cable insulation integrity and tighten terminal screws to the specified torque (typically 0.5–0.6 N·m for this frame size) before energizing.

Q: Will my existing Modbus RTU program work without modification?
A: Yes, provided the replacement unit’s node address (P09.00), baud rate (P09.01), and data format (P09.04) are set to match the original configuration. These parameters can be restored from a WPLSoft parameter backup file in under five minutes.

Q: Does the replacement unit fit the same DIN rail slot?
A: Yes. The VFD007L21A uses a standard 35 mm DIN rail clip. The replacement unit’s mounting footprint and depth are identical to the original, so no panel cutout modification is required.

Q: What if my original unit was connected to a Delta HMI (e.g., DOP-B07S411) via RS-485?
A: The replacement unit supports the same Modbus RTU register map as the original VFD-L Series. Your existing HMI screen addresses for frequency setpoint, run/stop command, output current, and fault code readback will function without modification.

Q: Can the replacement unit handle the same acceleration/deceleration ramp settings?
A: Yes. Parameters P01.09 (acceleration time) and P01.10 (deceleration time) accept the same 0.1–600 s range as the original. Upload your saved parameter file to restore all ramp, torque boost, and carrier frequency settings instantly.

Q: What is the recommended procedure for replacing the drive in a live production environment?
A: Isolate the drive from the AC supply using the upstream MCCB or disconnect switch. Wait at least 5 minutes for the DC bus capacitors to discharge (verify with a multimeter across the DC+ and DC− terminals). Remove the motor and control wiring, photograph terminal connections before disconnecting, install the replacement unit, reconnect wiring, upload parameters, and perform a no-load run before reconnecting the motor load.

Warranty Assurance

Every VFD007L21A replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional pre-shipment test: input voltage application, output frequency sweep, RS-485 communication verification, and fault relay output check. Units that do not pass all test points are not shipped.

If a warranty claim arises within the 12-month coverage period, TOPNLMS will arrange a replacement unit or issue a credit note based on the fault assessment. Our after-sales response target is 24 hours for initial fault diagnosis and 72 hours for replacement dispatch for stocked models. Customers are encouraged to retain the original packaging and test report supplied with each unit to facilitate any warranty processing.

For procurement teams managing multi-site installations or building strategic spare-parts inventories, TOPNLMS offers volume pricing and consignment stock arrangements for VFD-L Series drives. Contact our technical sales team to discuss lead times, batch testing requirements, and documentation packages (including CE declarations and test certificates) for your project.

Stock is maintained in Xiamen, China, with express international shipping available via DHL, FedEx, and SF Express to most destinations. Typical dispatch time for in-stock units is 1–2 business days after order confirmation.
