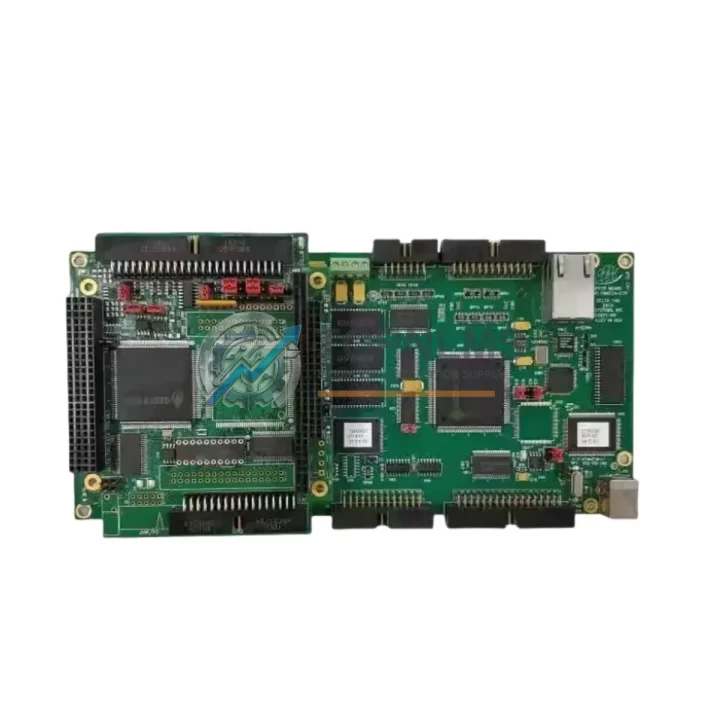

Delta Tau PMAC2A-ETH 603871-105 Original Industrial Spare Turbo PMAC2 Compatible

Product Overview

Delta Tau PMAC2A-ETH 603871-105 Original Industrial Spare: System Stability & Maintenance Value

The Delta Tau PMAC2A-ETH 603871-105 is a critical Ethernet-enabled motion controller within the Turbo PMAC2 platform — a proven architecture deployed across precision manufacturing, semiconductor fabrication, robotics integration, and multi-axis CNC systems. When this controller fails or degrades, the downstream impact is immediate: production lines halt, servo axes lose synchronization, and engineering teams face unplanned downtime that compounds into significant operational cost. Sourcing a verified original spare in advance is not a luxury — it is a fundamental element of any responsible industrial maintenance strategy. At TOPNLMS, we supply the PMAC2A-ETH 603871-105 as a tested, original-source component. Each unit undergoes pre-shipment functional verification, is packaged in anti-static protective materials, and ships with a 12-month warranty covering manufacturing defects and operational failures under normal use conditions. Our inventory is maintained to support both emergency replacement orders and planned procurement cycles, ensuring your facility is never left waiting during a critical shutdown window.

Critical Technical Specs

Preventive Maintenance Strategy

The PMAC2A-ETH 603871-105 sits at the heart of your motion control architecture, but its reliability is only as strong as the surrounding system components. A structured preventive maintenance approach should treat this controller as part of a broader inspection and replacement cycle — not an isolated unit.

During scheduled downtime or annual control cabinet audits, maintenance engineers should simultaneously inspect the PMAC2 UBUS backplane that hosts this controller, as backplane connector wear or oxidation can cause intermittent communication faults that are frequently misdiagnosed as controller failure. The ACC-24E2 or ACC-28 amplifier interface boards connected to this PMAC2A should be checked for proper seating and signal integrity — degraded amplifier interfaces are a leading cause of axis fault alarms in Turbo PMAC2 installations.

Power supply stability is equally critical. The PMAC2 system power supply module (typically a regulated +5V / ±12V unit) should be load-tested during any controller swap procedure. A marginal power supply that passes idle-state checks may still cause resets or memory corruption under full-axis load. Similarly, the Ethernet communication cable and managed switch port feeding the PMAC2A-ETH should be verified — EMI-induced packet loss in industrial environments can cause the host PC to lose communication with the controller, triggering false fault conditions.

For facilities running multi-axis servo systems, it is advisable to maintain a parallel spare inventory that includes Delta Tau ACC-8D or ACC-8E digital-to-analog converter boards, which interface between the PMAC2A and analog servo drives. These boards are subject to DAC drift over time and should be recalibrated or replaced on a 3–5 year cycle. If your system uses MACRO (Motion and Control Ring Optical) fiber communication for distributed axis control, inspect the MACRO IC daughter cards and fiber transceivers for signal degradation — fiber connectors in high-vibration environments are a known failure point.

Facilities that rely on Turbo PMAC2-based laser cutting or plasma cutting systems should also maintain spares for the ACC-51E or ACC-65E I/O expansion boards, which handle digital I/O for interlock circuits, home switches, and limit switches. A failed I/O board can prevent the PMAC2A from executing motion programs even when the controller itself is fully functional. Finally, for systems with HMI panels or operator workstations communicating via the Ethernet port of this controller, ensure the host-side PCOMM32 or Pewin32PRO2 software version is compatible with the firmware loaded on the replacement PMAC2A-ETH unit before committing to a live swap.

Strategic Replacement Solutions

The PMAC2A-ETH 603871-105 is a direct replacement for earlier PMAC2A board revisions that lacked integrated Ethernet capability. Facilities previously relying on RS-232 or USB communication interfaces can upgrade to Ethernet connectivity through this replacement without modifying the motion program structure or re-tuning servo parameters — the Turbo PMAC2 firmware architecture maintains backward compatibility across board revisions within the same generation.

For aging systems where the original PMAC2A has reached end-of-life or is no longer supported by the OEM, sourcing a tested original spare from TOPNLMS extends the operational lifespan of the existing control system by 5–10 years without the capital expenditure of a full machine retrofit. This is particularly valuable in industries where the motion programs, G-code libraries, and servo tuning parameters represent years of engineering investment that would be costly to migrate to a new platform.

Our pre-shipment testing protocol includes power-on verification, Ethernet communication handshake confirmation, and basic motion program execution testing where applicable. Units that do not pass functional verification are not shipped. This eliminates the risk of receiving a non-functional spare during a critical production shutdown — a scenario that compounds downtime and erodes confidence in the supply chain.

Support FAQ

Q: Is the PMAC2A-ETH 603871-105 compatible with my existing Turbo PMAC2 system?
A: Yes. The PMAC2A-ETH 603871-105 is designed as a direct board-level replacement within the Turbo PMAC2 platform. It is compatible with existing PMAC2 chassis, backplanes, and amplifier interface boards. We recommend verifying your current firmware version and backing up all motion programs before performing the swap.

Q: What does the 12-month warranty cover?
A: The warranty covers manufacturing defects and operational failures under normal industrial use conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Our technical team is available to assist with installation guidance to minimize warranty-voiding risks.

Q: How quickly can this unit ship, and what testing is performed before dispatch?
A: In-stock units typically ship within 1–3 business days. Each unit undergoes pre-shipment power-on and communication verification testing. Units are packaged in anti-static bags with foam cushioning to prevent transit damage. Expedited shipping options are available for emergency maintenance situations.

Q: Should I stock multiple units as preventive inventory?
A: For facilities with multiple Turbo PMAC2-based machines or high-criticality production lines, maintaining at least one spare PMAC2A-ETH 603871-105 on-site is strongly recommended. Controller failure during peak production periods can result in downtime costs that far exceed the cost of a spare unit. We offer volume pricing for facilities looking to establish a structured spare parts inventory program.
