Delta Tau ACC-24E2S Original Industrial Spare Tau Series Compatible

Product Overview

Delta Tau ACC-24E2S Original Industrial Spare Tau Series Compatible: System Stability & Maintenance Value

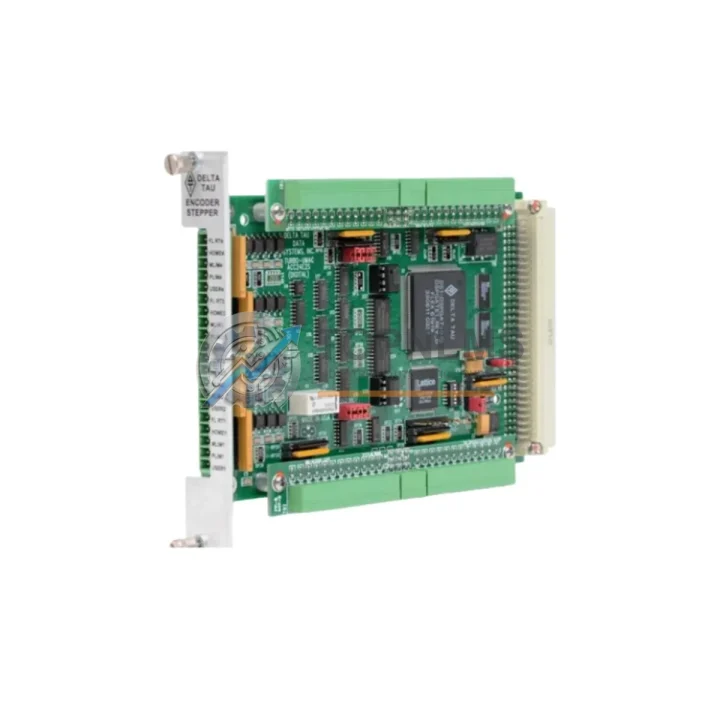

The Delta Tau ACC-24E2S is an original axis expansion board engineered for the Tau Series PMAC2 multi-axis motion controller platform. In high-demand industrial environments — from precision CNC machining centers and semiconductor fabrication lines to automated assembly systems and robotic workcells — the ACC-24E2S serves as a critical interface between the PMAC2 controller and servo amplifiers, enabling coordinated multi-axis motion with deterministic real-time performance. Sourced directly from verified supply channels, every unit shipped by TOPNLMS undergoes pre-shipment functional verification and is backed by a 12-month warranty.

When a motion controller expansion board fails or degrades, the consequences extend far beyond a single axis. Entire production lines halt, maintenance windows extend, and the cost of unplanned downtime compounds rapidly. Stocking an original ACC-24E2S as a certified spare eliminates this risk — ensuring your maintenance team can execute a rapid board swap and restore full multi-axis operation within a single shift.

Critical Technical Specs

Preventive Maintenance Strategy

Experienced maintenance engineers know that a motion controller expansion board rarely fails in isolation. The ACC-24E2S operates within a tightly coupled electrical and mechanical ecosystem — and a thorough preventive maintenance program should address the entire control chain simultaneously.

During scheduled downtime or annual control cabinet inspections, begin by auditing the PMAC2 host controller board itself for firmware currency and connector integrity. The ACC-24E2S interfaces directly with the PMAC2 backplane, so any oxidation or mechanical stress on the expansion bus connector can introduce intermittent axis faults that are difficult to diagnose under production conditions. Inspect and reseat all board-to-backplane connections as part of every major maintenance cycle.

Servo drive health is equally critical. The ACC-24E2S delivers ±10 V analog command signals to downstream servo amplifiers — if a servo drive or amplifier module (such as a Delta Tau UMAC-compatible drive or equivalent third-party servo amplifier) shows signs of parameter drift or fault history, replace it concurrently with any expansion board swap to avoid repeat callouts. Similarly, inspect the encoder feedback cables and connectors on each axis: differential encoder signal integrity is essential for closed-loop position accuracy, and degraded shielding or connector corrosion is a leading cause of axis following errors attributed incorrectly to the expansion board.

Power supply stability directly affects ACC-24E2S performance. Verify that the +5 VDC backplane power supply module within the PMAC2 rack is within specification — voltage sag under load can cause sporadic board resets and axis initialization failures. If the power supply is original equipment from the system commissioning date, proactive replacement is strongly recommended. Alongside this, inspect terminal blocks and DIN rail wiring within the control cabinet for loose terminations, particularly on signal ground and shield drain conductors, which are critical for noise immunity in high-axis-count motion systems.

For systems operating in environments with significant electrical noise — such as those near large VFDs, welding equipment, or high-current motor drives — consider auditing the signal isolation modules on analog command and feedback lines. A degraded isolator can introduce ground loops that manifest as axis oscillation or runaway, symptoms that are often misdiagnosed as expansion board failure. Additionally, review the status of any communication modules (MACRO ring, GPASCII, or Ethernet interface cards) installed in the PMAC2 rack: communication faults can mask underlying axis hardware issues and complicate fault isolation.

Finally, if your facility maintains a PMAC2-based multi-axis system with more than four axes, it is best practice to stock at least one spare ACC-24E2S alongside a spare PMAC2 host board, a spare power supply module, and a set of pre-terminated encoder cables. This spare kit strategy reduces mean time to repair (MTTR) from days to hours and is the single most effective investment a maintenance manager can make for aging Delta Tau motion control infrastructure.

Strategic Replacement Solutions

The ACC-24E2S was designed for long-service-life industrial applications, but as Delta Tau systems age — many installations now exceed 15–20 years of continuous operation — sourcing original expansion boards through standard distribution channels becomes increasingly difficult. TOPNLMS specializes in exactly this supply gap: providing original, tested ACC-24E2S boards for facilities that need to extend the operational life of their existing PMAC2 infrastructure without the cost and disruption of a full motion controller platform migration.

Replacing an ACC-24E2S with a genuine original board preserves full firmware and software compatibility with existing PMAC2 programs, motion profiles, and tuning parameters. There is no need to re-commission axes, re-tune PID loops, or modify ladder logic — a direct board swap restores the system to its validated operational state. This is a critical advantage over aftermarket alternatives, which may require firmware modifications or exhibit subtle timing differences that affect servo performance.

For facilities managing multiple PMAC2-based machines, a standardized spare board program — maintaining one ACC-24E2S per machine cluster — dramatically reduces the risk of extended production outages. Combined with a documented board swap procedure and pre-verified spare, your maintenance team can execute a controlled replacement during a planned maintenance window rather than under emergency conditions, reducing both repair time and the risk of secondary damage from rushed troubleshooting.

Support FAQ

Q1: What is the warranty coverage for the ACC-24E2S supplied by TOPNLMS?
Every ACC-24E2S shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Each unit undergoes pre-shipment functional testing to verify board initialization, axis channel integrity, and backplane interface continuity. If a unit exhibits a defect within the warranty period under normal operating conditions, TOPNLMS will arrange replacement or repair at no additional cost.

Q2: How do I verify compatibility between the ACC-24E2S and my existing PMAC2 system?
The ACC-24E2S is designed specifically for the Delta Tau Tau Series PMAC2 multi-axis motion controller platform. Compatibility is determined by the PMAC2 host board revision and firmware version. Before ordering, confirm your PMAC2 host board part number and firmware revision. TOPNLMS technical support can assist with compatibility verification — contact us at [email protected] with your system details.

Q3: Can the ACC-24E2S be used as a direct drop-in replacement without re-commissioning?
Yes. An original ACC-24E2S is a direct drop-in replacement for a failed or degraded board of the same part number. No firmware changes, axis re-tuning, or program modifications are required. After physical installation and power-up, the PMAC2 host will recognize the expansion board and restore all previously configured axis parameters from non-volatile memory. Always follow your facility’s lockout/tagout procedures during board replacement.

Q4: What is the recommended inventory strategy for facilities with multiple PMAC2 systems?
For facilities operating two or more PMAC2-based machines, we recommend maintaining a minimum of one spare ACC-24E2S per machine type in your on-site spare parts inventory. Given the extended lead times for legacy motion controller components through standard distribution, having a pre-tested spare on hand is the most cost-effective insurance against unplanned downtime. TOPNLMS offers volume pricing for multi-unit spare kit orders — contact us for a quotation.
