Delta PMAC2A-ETH Original Industrial Spare PMAC2A Compatible

Product Overview

Delta PMAC2A-ETH Original Industrial Spare – PMAC2A Series System Stability & Maintenance Value

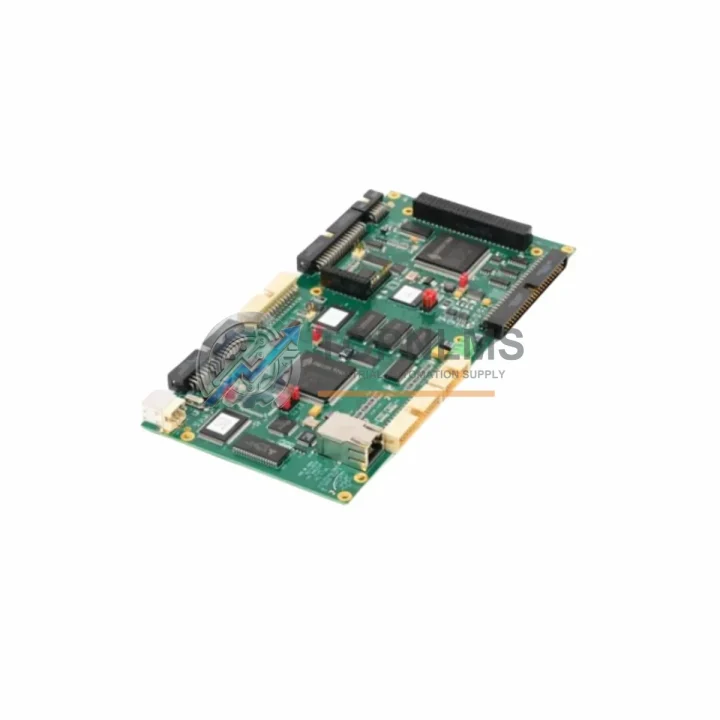

The Delta PMAC2A-ETH is an Ethernet-enabled multi-axis motion controller CPU board engineered for demanding industrial automation environments. As an original spare part within the PMAC2A series, this module serves as the computational core of Delta’s high-performance motion control architecture, coordinating real-time trajectory planning, servo loop closure, and multi-axis synchronization across CNC machining centers, robotic arms, semiconductor handling equipment, and precision assembly lines. Maintaining a verified stock of the PMAC2A-ETH is a foundational element of any serious preventive maintenance program — one that directly reduces unplanned downtime, accelerates fault recovery, and extends the operational life of legacy and current-generation Delta motion systems.

When a PMAC2A-ETH fails in the field, the consequences extend far beyond a single axis. The entire motion control cabinet — including servo drives, I/O expansion modules, and the HMI interface — becomes non-operational. Every hour of downtime in a high-throughput manufacturing environment carries measurable cost. Having a pre-tested, shelf-ready PMAC2A-ETH on hand transforms a potential multi-day production halt into a sub-hour swap-and-resume event. This is the core value proposition of strategic spare parts inventory management for industrial automation professionals.

Critical Technical Specs

Preventive Maintenance Strategy

A structured preventive maintenance program for any Delta PMAC2A-based motion control cabinet must extend well beyond the CPU board itself. During scheduled downtime inspections — typically aligned with quarterly or semi-annual maintenance windows — maintenance engineers should treat the PMAC2A-ETH replacement as the anchor event around which a broader system audit is conducted.

Begin with the Delta PMAC2A carrier board and backplane connectors: oxidized or mechanically stressed edge connectors are a leading cause of intermittent communication faults that are frequently misdiagnosed as CPU failures. Simultaneously inspect the servo drive units (such as Delta ASDA-A2 or ASDA-B2 series drives) connected to each axis — a degraded drive can generate fault signals that mask a healthy controller, and vice versa. Check the encoder feedback cables and motor power cables for insulation wear, connector corrosion, and shield continuity; cable degradation is the most common root cause of position error faults in multi-axis systems.

The I/O expansion modules interfacing with the PMAC2A — including digital input/output boards and analog signal conditioning modules — should be inspected for loose terminal connections and verified against the current I/O map. In environments with high vibration or thermal cycling, terminal block assemblies and DIN rail mounting hardware can loosen over time, introducing intermittent signal faults. Inspect and re-torque all terminal connections during the same maintenance window.

For systems using the PMAC2A-ETH’s Ethernet interface for real-time host communication, verify the integrity of the industrial Ethernet switch and patch cables within the control cabinet. Managed switches with port mirroring capability allow engineers to capture and analyze PMAC2A communication traffic without interrupting production — a valuable diagnostic tool when investigating latency or packet-loss related motion faults. If the system includes a Delta HMI panel (such as the DOP-B or DOP-W series), confirm that the HMI firmware version remains compatible with the PMAC2A-ETH firmware after any controller update.

Power quality is a frequently overlooked factor in motion controller longevity. Inspect the 24 VDC control power supply feeding the PMAC2A logic circuits — measure output voltage under load and check for ripple exceeding manufacturer tolerances. A failing power supply will degrade controller performance gradually before causing outright failure. Similarly, verify that EMC filter modules and surge protection devices on the incoming AC supply remain functional; transient voltage spikes are a primary cause of premature CPU board failure in industrial environments.

Finally, review the UPS or battery backup system protecting the control cabinet. The PMAC2A-ETH retains motion programs and parameter tables in battery-backed SRAM; a depleted backup battery will result in complete loss of machine configuration on the next power cycle — a scenario that can extend a routine maintenance stop into a multi-day re-commissioning event. Replace the backup battery on a fixed schedule, independent of fault indicators.

Strategic Replacement Solutions

The PMAC2A-ETH is a long-lifecycle industrial component, but like all electronics, it has a finite service life — typically 8 to 12 years under normal operating conditions, shorter in high-temperature or high-vibration environments. As Delta Electronics transitions its motion control portfolio toward newer platforms, sourcing original PMAC2A-ETH units through authorized spare parts channels becomes increasingly critical for facilities committed to maintaining existing machine configurations without costly full-system retrofits.

Replacing a PMAC2A-ETH with an original spare — rather than attempting a cross-platform migration — preserves the existing servo tuning parameters, PLC ladder logic, motion programs, and operator interface configurations. This approach eliminates the re-commissioning risk associated with platform changes and allows maintenance teams to execute the replacement within a single planned maintenance window. The original PMAC2A-ETH is fully backward-compatible with existing PMAC2A carrier boards and peripheral modules, requiring only firmware version verification before installation.

For facilities managing aging Delta PMAC2A installations, a recommended strategy is to maintain a minimum of one shelf-ready PMAC2A-ETH per machine cluster, supplemented by a documented firmware image backup and a printed copy of the axis parameter table. This three-element spare parts kit — controller, firmware, parameters — enables any qualified maintenance technician to restore full machine operation without engineering support, dramatically reducing mean time to repair (MTTR) and protecting production throughput.

All PMAC2A-ETH units supplied by TOPNLMS are individually tested for Ethernet communication integrity, axis command response, and firmware boot sequence prior to shipment. Each unit ships with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.
