DELIXI BK300D01 Original Industrial Spare BK Series Compatible

Product Overview

DELIXI BK300D01 Original Industrial Spare BK Series Compatible: System Stability & Maintenance Value

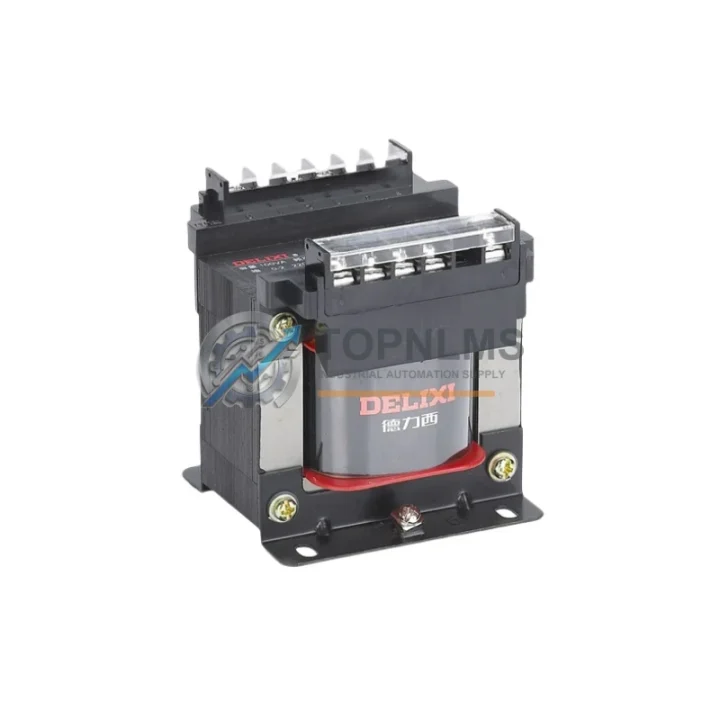

The DELIXI BK300D01 is a 300VA single-phase dry-type control transformer from DELIXI’s proven BK Series — a cornerstone component in industrial control cabinets across manufacturing, process automation, and machine tool applications throughout China and export markets. Sourced as an original spare part and rigorously tested prior to dispatch, this unit is engineered to deliver long-term system stability, reduce unplanned downtime, and serve as a direct drop-in replacement for aging or failed transformers in existing control architectures.

In industrial environments where control voltage reliability is non-negotiable, the BK300D01 provides the consistent 36V, 110V, or 127V secondary output required to power PLC I/O circuits, relay coils, indicator lamps, and solenoid valve actuators. Its compact dry-type construction eliminates oil maintenance concerns and makes it suitable for enclosed control panels with limited ventilation. Whether you are managing a scheduled overhaul, responding to an emergency shutdown, or building a strategic spare parts inventory, having a verified BK300D01 on the shelf is a low-cost insurance policy against costly production interruptions.

Critical Technical Specs

Preventive Maintenance Strategy

A control transformer failure rarely occurs in isolation. In most industrial control cabinets, the BK300D01 operates as part of an interconnected low-voltage control circuit. When performing a scheduled inspection or emergency replacement of the BK300D01, maintenance engineers should treat the event as an opportunity to audit the health of the entire control circuit to prevent repeat failures and extend system service life.

Begin by inspecting the primary fuse module (such as DELIXI RT18 or NT series fuse holders) upstream of the transformer — a blown fuse is often the first symptom of a transformer overload or downstream short circuit. Simultaneously, check the control circuit terminal blocks (e.g., DELIXI TD or UK series terminal strips) for signs of overheating, loose connections, or insulation degradation, as poor terminal contact is a leading cause of transformer secondary overload.

On the secondary side, verify the condition of the intermediate relay modules (such as DELIXI JZX or MY series relays) that are powered by the transformer’s 110V or 36V output. Relay coil burnout caused by voltage fluctuation is a common co-failure mode. If the control cabinet includes a DELIXI CDM3 or CM1 series molded case circuit breaker on the primary feed, inspect its trip mechanism and contact wear — a nuisance trip history may indicate the transformer was operating near its rated capacity.

For cabinets integrating a PLC system (such as DELIXI’s own DVP-compatible controllers or third-party Siemens S7-200/S7-1200 series), confirm that the 24VDC SMPS power supply module feeding the PLC CPU and I/O modules is functioning within specification. A degraded control transformer can cause undervoltage conditions that corrupt PLC program execution or trigger spurious I/O faults. While the cabinet is open, inspect the I/O expansion modules and their wiring harnesses for chafing or moisture ingress.

If the system uses signal isolators or analog signal conditioners on 4–20mA or 0–10V loops, verify their auxiliary power supply rails — these devices are sensitive to control voltage ripple introduced by a failing transformer. Finally, review the HMI or operator panel power supply connections; many touchscreen HMIs draw their 24VDC supply from the same control transformer secondary circuit, and a marginal transformer can cause intermittent HMI reboots that are difficult to diagnose without measuring secondary voltage under load.

Stocking a BK300D01 alongside a small buffer of the above components — fuse elements, relay modules, terminal blocks, and a spare SMPS module — constitutes a cost-effective preventive maintenance kit that can reduce mean time to repair (MTTR) from hours to minutes during an unplanned shutdown.

Strategic Replacement Solutions

The BK300D01 is a direct replacement for any 300VA BK Series control transformer in DELIXI-branded control cabinets and is dimensionally and electrically compatible with equivalent BK-300VA units from the same product generation. For facilities managing legacy equipment manufactured in the 1990s or early 2000s, original BK Series transformers may no longer be available through OEM channels — the BK300D01 provides a verified, specification-matched alternative that preserves the original control voltage architecture without requiring rewiring or panel modification.

For maintenance teams managing multiple production lines, consolidating on the BK300D01 as a standard spare across all 300VA transformer positions simplifies inventory management, reduces the number of unique part numbers held in the storeroom, and accelerates technician familiarity with the replacement procedure. The dry-type construction means no oil sampling, no disposal concerns, and no specialist handling — a technician can complete a swap in under 30 minutes with standard hand tools.

When upgrading older control panels to accommodate new automation equipment, the BK300D01’s dual primary voltage input (220V/380V) provides flexibility to adapt to site power infrastructure changes without sourcing a different transformer model. This makes it a strategic choice for facilities undergoing phased modernization where the control voltage architecture must remain stable while other components are upgraded incrementally.

Support FAQ

Q1: Is the BK300D01 a genuine DELIXI original part or an aftermarket equivalent?
The BK300D01 supplied by TOPNLMS is an original DELIXI manufactured unit, not an aftermarket or remanufactured substitute. Each unit is sourced through verified supply channels and undergoes pre-shipment electrical testing including insulation resistance verification and no-load secondary voltage measurement before dispatch.

Q2: What is the warranty coverage and how is it handled?
All BK300D01 units carry a 12-month warranty from the date of shipment. In the event of a confirmed manufacturing defect within the warranty period, TOPNLMS will arrange replacement or credit. Warranty claims require the original order reference and a brief description of the failure mode. Physical damage caused by installation error, overvoltage, or environmental factors is excluded from warranty coverage.

Q3: Can the BK300D01 replace older BK Series transformers with different secondary voltage taps?
The BK300D01 supports multiple secondary voltage configurations (36V, 110V, 127V) via tap selection. Before installation, confirm the required secondary voltage against your control circuit schematic and connect to the appropriate tap terminal. If your existing transformer uses a non-standard secondary voltage, contact our technical team at [email protected] to confirm compatibility before ordering.

Q4: What is the recommended stocking quantity for a facility with multiple control cabinets?
For facilities operating 5–20 control cabinets that use BK Series transformers, a minimum buffer of 2–3 units is recommended to cover simultaneous failures during peak production periods. Larger facilities or those with extended lead times from their primary supplier should consider a buffer of 5+ units. The BK300D01’s compact size and dry-type construction make it straightforward to store in standard spare parts conditions (dry, room temperature, original packaging).
