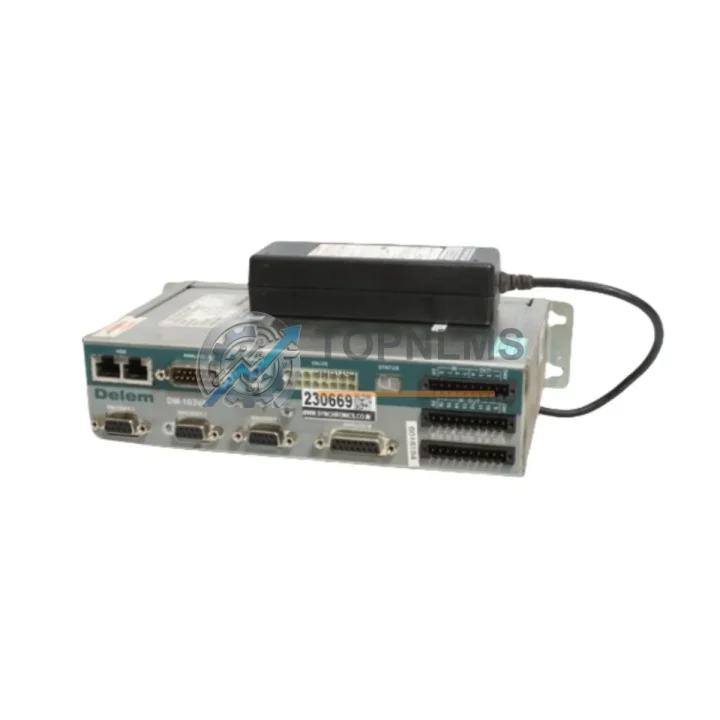

Delem DM-103VA 8576-001 Replacement for DM Series

Product Overview

Delem DM-103VA 8576-001 Replacement for DM Series: Smooth Transition to Modern Press Brake Control

The Delem DM-103VA 8576-001 is a purpose-built CNC controller designed for press brake machine tool applications within the Delem DM Series platform. As Delem progressively phases out legacy DM-series hardware, many fabrication shops and sheet metal facilities are facing the challenge of sourcing a reliable, drop-in replacement that preserves existing wiring harnesses, I/O configurations, and bending programs without requiring a full machine retrofit. This listing addresses exactly that need — providing a verified, tested unit that enables a seamless upgrade path from discontinued or end-of-life DM Series controllers.

Whether your existing system is running an older Delem DA-41, DA-52, or a first-generation DM-103 variant, the DM-103VA 8576-001 is engineered to maintain backward compatibility across the DM Series mechanical and electrical interface standards. The controller retains the same panel cutout dimensions, mounting hole pattern, and connector pinout layout as its predecessors, allowing technicians to complete the swap within a standard maintenance window — minimizing press brake downtime and avoiding costly machine re-commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful press brake CNC migration involves more than swapping the controller faceplate. During the upgrade process, engineers typically evaluate the full control cabinet ecosystem to ensure every component communicates reliably with the new DM-103VA 8576-001 unit. In most DM Series installations, the controller interfaces directly with a Delem DA-65W or DA-66T graphical programming terminal, which handles the operator interface and bending sequence programming. These terminals connect via the Delem proprietary bus and remain fully compatible with the DM-103VA without firmware modification.

On the motion control side, the DM-103VA 8576-001 drives the Y1/Y2 hydraulic axis and the X back-gauge axis through the existing servo amplifier or proportional valve driver. Facilities running Bosch Rexroth HNC100 or Parker Hannifin proportional valve controllers in their press brake hydraulic circuit will find the analog ±10 V command signal interface unchanged, preserving the existing tuning parameters and axis calibration data.

For shops that also need to refresh their I/O infrastructure during the same maintenance window, the DM-103VA is compatible with standard Delem I/O expansion modules used across the DM and DA product families. These modules handle tooling detection, safety interlock signals, and auxiliary axis commands without requiring additional configuration on the controller side. Similarly, if the installation includes a Delem DAP-340B or equivalent back-gauge positioning module, the communication handshake protocol remains identical to the legacy DM-103 implementation.

Facilities upgrading from older press brake systems may also take this opportunity to modernize the control cabinet power distribution. The DM-103VA operates on a standard 24 VDC rail, making it compatible with Phoenix Contact QUINT-PS or Siemens SITOP DIN-rail power supply units already present in most modern control cabinets. No additional power conditioning or isolation transformer is required when the existing supply is within specification.

For programming and commissioning, a standard Delem RS-232 programming cable (DB9 to DB9, null-modem configuration) is sufficient to transfer bending programs from a PC running Delem’s offline programming software. Shops that have previously used a Delem USB-to-serial adapter for legacy DM Series units will find the same adapter compatible with the DM-103VA 8576-001, eliminating the need for additional tooling investment during the retrofit.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring harness from the DM-103 or DM-103V?
A: Yes. The DM-103VA 8576-001 uses the same connector pinout and harness routing as the DM-103 and DM-103V. No rewiring is required for the main control cable, I/O connector, or power supply leads. Technicians should verify connector seating and inspect for any insulation wear before powering up the replacement unit.

Q: Will my existing bending programs transfer to the DM-103VA?
A: Bending programs stored in the legacy DM-103 format are compatible with the DM-103VA. Programs can be transferred via RS-232 serial connection using the standard Delem offline programming utility. It is recommended to perform a dry-run cycle after transfer to verify axis positioning and bending sequence integrity before resuming production.

Q: Is the communication protocol compatible with my existing Delem DA terminal?
A: The DM-103VA 8576-001 communicates over the standard Delem DM bus protocol. DA-series graphical terminals (DA-65W, DA-66T, and similar) that were previously paired with DM-103 or DM-103V controllers will operate without protocol modification. Confirm the terminal firmware version is within the supported range specified in the Delem DM-103VA installation manual.

Q: Does the DM-103VA fit the same panel cutout as the DM-103?
A: Yes. The DM-103VA 8576-001 shares the same panel cutout dimensions and mounting hole pattern as the DM-103 and DM-103V, allowing direct installation into the existing control cabinet door or panel without mechanical modification.

Q: What commissioning steps are required after installation?
A: After physical installation and wiring verification, technicians should perform axis homing, verify I/O signal mapping against the machine’s electrical schematic, and confirm hydraulic valve command output levels. A full bending cycle test with a sample workpiece is recommended before returning the press brake to production. Delem’s commissioning checklist for the DM Series is applicable to the DM-103VA installation.

Q: Is the unit compatible with safety relay and light curtain interfaces?
A: The DM-103VA 8576-001 supports standard safety interlock inputs via the DM Series I/O interface. Existing safety relay modules, two-hand control circuits, and light curtain interfaces wired to the legacy DM-103 I/O connector will function without modification, provided the wiring is verified against the DM-103VA I/O specification sheet.

Warranty Assurance

Every Delem DM-103VA 8576-001 unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional verification procedure that includes power-on self-test, communication bus handshake confirmation, I/O signal integrity check, and visual inspection for physical damage or component anomalies. Units that do not pass all verification checkpoints are not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or repair service at no additional cost to the buyer. Our technical support team is available to assist with installation queries, commissioning guidance, and fault diagnosis via email at [email protected] or by phone at +86 18359293191. Response time for warranty claims is typically within one business day.

For buyers requiring expedited replacement to minimize production downtime, advance replacement arrangements can be discussed on a case-by-case basis. All units are shipped with appropriate export documentation, and international buyers should confirm import duty and customs requirements for their destination country prior to ordering.

Stock availability is updated regularly. Buyers are encouraged to confirm current inventory status before placing orders for time-sensitive maintenance requirements. TOPNLMS maintains a dedicated inventory of DM Series replacement components to support ongoing press brake maintenance programs across the manufacturing sector.
