Danfoss 175Z2330 DT1 FC-Series Relay Output Board Replacement

Product Overview

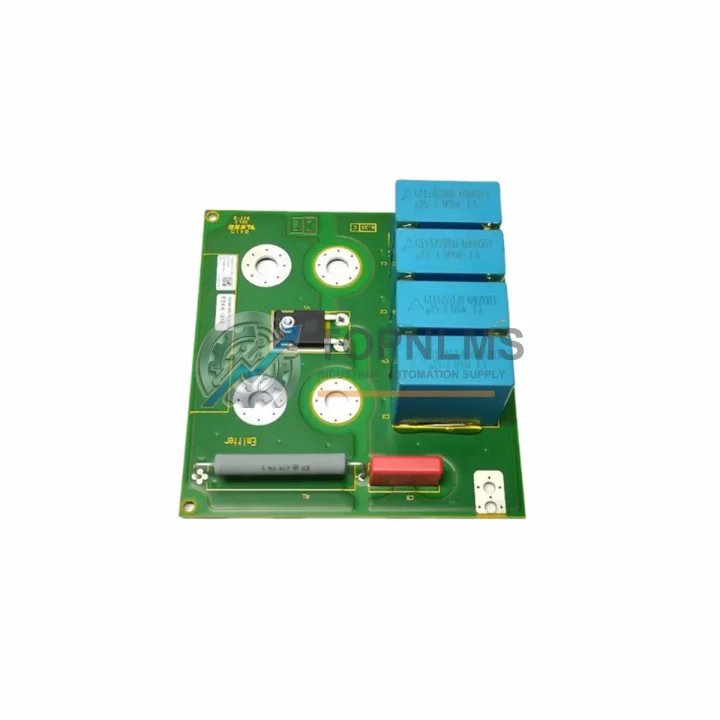

Danfoss 175Z2330 DT1 FC-Series Relay Output Board Replacement: Seamless Transition from Legacy Drive Systems

When a Danfoss FC-Series variable frequency drive goes offline due to a failed relay output board, every minute of unplanned downtime translates directly into production loss. The Danfoss 175Z2330 DT1 relay output board is a critical control-layer component used across the FC 300 platform — including the widely deployed FC 301 and FC 302 series drives — providing hardwired relay feedback signals to upstream PLCs, safety relays, and SCADA systems. This replacement unit is sourced, inspected, and dispatched from our Xiamen warehouse to support engineers executing emergency repairs, scheduled overhauls, or phased drive modernization programs.

Whether you are replacing a failed board in a single-axis pump drive or standardizing spare parts across a multi-drive panel controlling conveyor systems, compressors, or HVAC air handling units, the 175Z2330 DT1 is the correct form-factor replacement that preserves your existing wiring harness, terminal block layout, and relay logic without requiring firmware changes or drive parameter re-commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions

A relay output board failure rarely occurs in isolation. In most FC-Series drive installations, the 175Z2330 DT1 works in conjunction with a broader set of option cards and system components. During a board replacement or drive modernization project, engineers frequently need to audit and potentially replace adjacent components to ensure the entire control loop is restored to full operational integrity.

For drives that also carry the Danfoss MCO 305 positioning option card or the MCB 101 general purpose I/O module, it is advisable to inspect those boards simultaneously, as thermal stress events that damage the relay output board often affect neighboring option cards in the same drive chassis. Similarly, if the drive is equipped with a Danfoss FC 302 LCP (Local Control Panel) — such as the LCP 102 or LCP 101 — the display and keypad assembly should be verified for communication integrity after any internal board swap.

In multi-drive panel installations, the Danfoss MCA 121 PROFIBUS DP option card or MCA 122 DeviceNet module may be present to integrate the drive into a plant-wide fieldbus network. These communication modules are independent of the relay output board and do not require reconfiguration when the 175Z2330 DT1 is replaced, provided the drive’s parameter set is backed up using the Danfoss MCT 10 SetUp Software prior to the swap. Parameter backup via MCT 10 is strongly recommended before any internal board replacement to protect motor tuning data, ramp profiles, and PID configurations.

For installations where the FC 302 drives are mounted in a Danfoss MCD 500 soft starter cabinet or a hybrid panel alongside Danfoss VLT AutomationDrive FC 360 units, the relay output wiring from the 175Z2330 DT1 typically feeds into a terminal block rail shared with safety relays and PLC digital input cards. Verifying terminal torque values and wire ferrule integrity at the Weidmüller or Phoenix Contact terminal blocks adjacent to the drive is a recommended step during any relay board replacement to prevent nuisance trips after recommissioning.

If the drive system is being upgraded from an older Danfoss VLT 5000 series or VLT 6000 series platform to the FC 302, the relay output board wiring scheme will require remapping, as the legacy VLT 5000 relay terminals use a different pin assignment. In this migration scenario, the 175Z2330 DT1 is the correct target board for the FC 302 destination drive, and a full wiring diagram review against the FC 302 operating guide (MG33) is essential before energizing the replacement unit.

Retrofit Guidance FAQ

Q: Do I need to re-enter drive parameters after replacing the 175Z2330 DT1?
A: No. The relay output board does not store drive parameters. All motor data, ramp settings, and PID configurations remain in the drive’s main control card. However, we strongly recommend backing up parameters via Danfoss MCT 10 SetUp Software before opening the drive enclosure, as a precautionary measure against accidental parameter loss during handling.

Q: Is the wiring to the relay terminals compatible with my existing installation?
A: Yes. The 175Z2330 DT1 uses the same terminal block layout and relay contact numbering as the original OEM board. No rewiring is required. Simply transfer the existing wiring harness to the replacement board using the same terminal designations shown in the FC 302 operating guide.

Q: Will replacing this board affect my PROFIBUS or DeviceNet fieldbus communication?
A: No. The relay output board operates independently of the drive’s fieldbus communication option cards (MCA 121, MCA 122, etc.). Fieldbus node address, baud rate, and network configuration are stored on the communication option card and are unaffected by a relay board replacement.

Q: What physical space is required for installation?
A: The 175Z2330 DT1 occupies a standard FC-Series option card slot. No additional panel space or bracket modification is required. The board slides into the existing option slot and locks with the OEM retention mechanism. Confirm the target slot (A, B, or C) against your drive’s current option card configuration before installation.

Q: Can this board be used in an FC 301 drive as well as FC 302?
A: Yes. The 175Z2330 DT1 is compatible with both the FC 301 (HVAC/pump optimized) and FC 302 (general purpose) variants of the FC 300 platform. Verify the drive’s option slot availability and firmware version (≥ 1.x) before installation.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in our Xiamen warehouse and dispatched within 1–2 business days of order confirmation. International shipments are handled via DHL Express, FedEx International Priority, or UPS Worldwide, with typical transit times of 3–7 business days to most destinations. Expedited same-day dispatch is available for urgent orders placed before 14:00 CST.

Warranty Assurance

Every Danfoss 175Z2330 DT1 relay output board supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point outgoing inspection that includes visual examination for PCB damage, connector integrity verification, relay contact resistance measurement, and functional bench testing where applicable. Units that do not pass inspection are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our technical support team at [email protected] with your order number and a brief fault description. Replacement units are dispatched within 2 business days of claim approval, and defective units are returned at our cost using a prepaid shipping label. We do not require the customer to wait for the defective unit to arrive before dispatching the replacement, minimizing additional downtime exposure.

Our procurement assurance commitment includes: original manufacturer traceability documentation available on request, anti-counterfeit verification for all Danfoss-branded components, secure ESD-safe packaging for all PCB assemblies, and full export compliance documentation (commercial invoice, packing list, certificate of origin) for international shipments. For projects requiring multiple units or scheduled maintenance contracts, volume pricing and priority allocation are available — contact our sales team for a formal quotation.
