Danaher Motion SPD36006-00 Original Industrial Spare SPD36000 Compatible

Product Overview

Danaher Motion SPD36006-00 Original Industrial Spare SPD36000 Compatible: System Stability & Servo Drive Maintenance Value

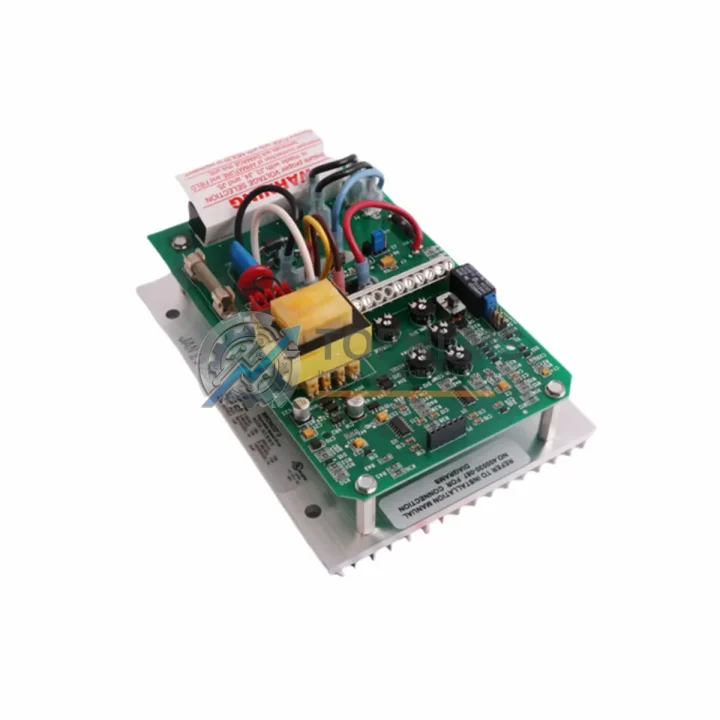

The Danaher Motion SPD36006-00 is an original servo drive control interface board engineered for the SPD36000 Series servo drive platform. In industrial automation environments — from precision CNC machining centers and packaging lines to robotic assembly cells and material handling conveyors — the interface board is the critical communication bridge between the motion controller and the servo drive power stage. A failed or degraded SPD36006-00 can immediately halt production, triggering unplanned downtime that costs far more than the component itself. Stocking a verified original replacement is the single most effective step a maintenance team can take to protect system uptime.

At TOPNLMS, every SPD36006-00 unit is sourced from authorized supply channels, subjected to functional bench testing prior to dispatch, and backed by a 12-month warranty. Orders are processed and shipped within 1–3 business days, with worldwide logistics coverage to support both emergency breakdown orders and planned preventive maintenance procurement cycles.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your SPD36000 Servo System

Replacing the SPD36006-00 interface board is rarely an isolated event. In a well-managed maintenance program, a servo drive fault or interface board failure is treated as a system-level signal — an indication that adjacent components in the same electrical cabinet or motion control loop deserve immediate inspection. Experienced maintenance engineers know that when one board fails, thermal stress, power quality issues, or connector degradation may have already compromised neighboring components.

When servicing a machine equipped with the SPD36000 series drive, the following components should be inspected or replaced concurrently to maximize the value of the maintenance window and prevent repeat failures:

Servo Drive Power Stage Module: The SPD36006-00 interface board works in tandem with the drive’s power stage. If the interface board failed due to an overcurrent or short-circuit event, the IGBT power module should be tested before recommissioning. Stocking a spare power stage module for the SPD36000 platform eliminates a second unplanned outage.

Encoder Feedback Cable Assembly: The interface board processes encoder signals from the servo motor. Damaged, kinked, or EMI-compromised encoder cables are a leading cause of interface board faults. During any SPD36006-00 replacement, inspect the full cable run from motor to drive, and consider replacing the encoder cable if it shows wear, especially on high-cycle axes.

24 VDC Control Power Supply Module: The control logic on the SPD36006-00 is powered by the cabinet’s 24 VDC rail. A failing or noisy 24 V SMPS can cause intermittent interface board resets, communication errors, and false fault signals. Verifying — or proactively replacing — the 24 VDC power supply module during this maintenance window is a low-cost, high-value action.

I/O Terminal Block and Wiring Harness: The drive enable, fault reset, and analog command signals all pass through the terminal block connected to the SPD36006-00. Loose terminals, corroded contacts, or undersized conductors introduce noise and intermittent faults. Clean and re-torque all terminal connections, and replace the terminal block assembly if corrosion is present.

Servo Motor (Danaher / Kollmorgen AKM or BDS Series): If the interface board failure was preceded by motor overtemperature or winding insulation faults, the servo motor itself should be tested with a megohmmeter. Pairing a new SPD36006-00 with a degraded motor risks immediate re-failure. Keeping a compatible spare motor in inventory is advisable for critical axes.

Communication Module / Fieldbus Adapter: Many SPD36000 installations use a fieldbus adapter (PROFIBUS, DeviceNet, or EtherCAT) mounted to the drive. During the interface board swap, verify the communication module’s firmware version and connector integrity. A mismatched firmware version after board replacement is a common commissioning oversight that delays restart.

Fuse Module and Circuit Protection: Inspect the drive’s input fusing and any semiconductor fuses protecting the DC bus. A blown or weakened fuse that was not replaced at the time of the original fault can cause the replacement SPD36006-00 to fail prematurely. Replace all fuses in the affected circuit as a standard practice.

Regenerative Braking Resistor: On SPD36000 drives handling high-inertia loads, the braking resistor absorbs regenerative energy during deceleration. An open or degraded braking resistor causes DC bus overvoltage faults that stress the interface board. Measure the resistor value and inspect for thermal discoloration during the maintenance window.

HMI / Operator Panel: If the machine uses a dedicated HMI for drive parameter display and fault acknowledgment, verify that the HMI communication link to the SPD36000 drive is restored and functioning after the interface board replacement. A corrupted parameter set in the HMI can prevent correct drive initialization.

Control Cabinet Cooling Fan: Thermal management is critical to interface board longevity. Inspect and replace the cabinet cooling fan if it shows reduced airflow, bearing noise, or elevated cabinet temperatures. A clean, well-ventilated cabinet is the most cost-effective way to extend the service life of every electronic component inside it.

Strategic Replacement Solutions: Reducing Downtime with Original SPD36006-00 Spares

Legacy servo drive platforms like the SPD36000 series remain deeply embedded in production lines worldwide. OEM support lifecycles end, but the machines keep running — and the maintenance responsibility shifts entirely to the plant’s engineering and procurement teams. The SPD36006-00 interface board is a prime example of a component that is no longer in active OEM production but remains essential to the continued operation of thousands of installed drives.

TOPNLMS specializes in sourcing, testing, and supplying original spare parts for exactly this scenario. Our SPD36006-00 inventory is maintained as a ready-to-ship stock item, not a made-to-order or refurbished-on-demand part. This means that when a breakdown occurs at 2 AM on a Sunday, the part is available for immediate dispatch — not subject to a 6–12 week OEM lead time or a costly emergency repair service call.

For maintenance managers responsible for multiple machines running SPD36000 drives, we recommend a min/max inventory strategy: maintain a minimum of one SPD36006-00 interface board per production line, with a reorder trigger set at that minimum level. This approach eliminates single-point-of-failure risk without tying up excessive capital in spare parts inventory. For facilities with three or more SPD36000 drives in service, a two-unit buffer stock is a prudent standard.

The SPD36006-00 is a direct, plug-in replacement for the original board in any SPD36000 series drive chassis. No firmware re-flashing, no mechanical modification, and no recalibration of motor parameters is required beyond the standard drive commissioning checklist. This makes field replacement achievable by a qualified maintenance technician in under two hours, dramatically reducing mean time to repair (MTTR) compared to sending the drive to a repair depot.

Support FAQ

Q1: Is the SPD36006-00 a direct drop-in replacement for the original board in my SPD36000 drive?
Yes. The SPD36006-00 is an original-specification interface board designed for the SPD36000 series drive chassis. It is a direct mechanical and electrical replacement. After installation, perform the standard drive power-up sequence and verify encoder feedback and command signal integrity before returning the axis to production.

Q2: How is each unit tested before shipment?
Every SPD36006-00 unit dispatched by TOPNLMS undergoes a functional bench test that verifies power rail integrity, communication port operation, and I/O signal response. A test report is available upon request. Units that do not pass the full test protocol are not offered for sale.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, TOPNLMS will provide a replacement unit or full refund after fault verification.

Q4: Can I order multiple units for strategic spare parts inventory?
Yes. TOPNLMS supports both single-unit emergency orders and multi-unit strategic inventory purchases. Volume pricing is available for orders of three or more units. Contact our team to discuss a spare parts supply agreement tailored to your facility’s maintenance schedule and budget cycle.
