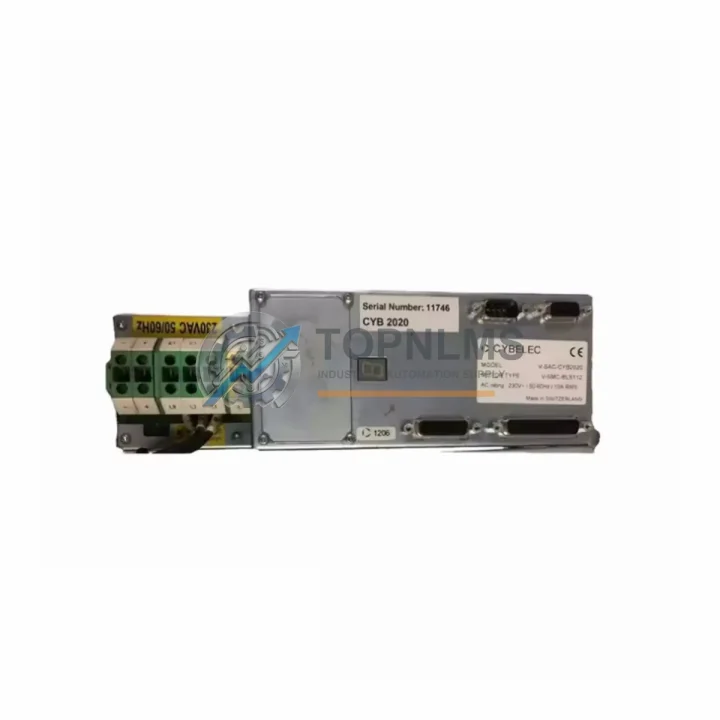

CYBELEC V-SAC-CYB2020 V-SMC-BLS112 Replacement for CNC V-SMC Series

Product Overview

CYBELEC V-SAC-CYB2020 V-SMC-BLS112 Replacement for CNC V-SMC Series: Smooth Transition from Legacy Servo Axis Drive Systems

The CYBELEC V-SAC-CYB2020 V-SMC-BLS112 is a CNC servo axis drive module engineered for precision motion control in press brake, bending machine, and multi-axis CNC machining environments. As CYBELEC’s V-SMC series reaches end-of-life and spare parts become increasingly scarce, many facilities operating legacy CYBELEC CNC systems face urgent decisions: continue sourcing discontinued components at premium cost, or execute a structured, low-risk upgrade that preserves existing wiring infrastructure, control cabinet space, and machine uptime.

This listing provides a verified replacement and upgrade solution for the V-SAC-CYB2020 V-SMC-BLS112 servo axis drive module. Whether your facility is running a single-axis retrofit or a full multi-axis migration across a CYBELEC-controlled press brake line, this module is sourced, tested, and ready to ship from Xiamen with a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy CYBELEC servo axis drive system involves more than swapping a single module. In practice, field engineers replacing the V-SAC-CYB2020 V-SMC-BLS112 typically audit the surrounding system architecture before committing to a single-module swap. The CYBELEC V-SMC platform integrates tightly with its associated CNC controller backplane, and the servo axis drive module communicates directly with the main CNC CPU board — often a CYBELEC V-SAC-CYB series controller card — via the internal CNC bus. Verifying that the CPU board firmware version is compatible with the BLS112 drive revision is a standard first step.

In multi-axis press brake applications, the V-SMC-BLS112 typically operates alongside additional servo axis drive channels. Facilities running dual-axis or four-axis bending systems will often find that replacing one failed axis drive prompts a broader inspection of the remaining V-SMC-BLS series modules in the same rack. Proactive replacement of aging BLS-series drives — particularly those showing encoder feedback errors or intermittent axis faults — reduces the risk of cascading downtime across the entire bending line.

The CYBELEC control cabinet also houses a dedicated power supply module that feeds the servo drive bus. When replacing the V-SAC-CYB2020 V-SMC-BLS112, it is advisable to verify the output voltage and current capacity of the existing CYBELEC power supply module against the BLS112 specifications. In some retrofit scenarios, an aging power supply module is replaced concurrently to ensure stable servo bus voltage under full-load conditions.

Wiring compatibility is a key advantage of this replacement. The V-SMC-BLS112 uses the same CYBELEC backplane connector layout as earlier BLS-series drives, meaning existing motor power cables, encoder feedback cables, and resolver wiring harnesses can be reused without modification. This significantly reduces installation time and eliminates the need for custom cable fabrication — a critical factor when minimizing press brake downtime in production environments.

For facilities that also operate CYBELEC HMI terminals — such as the CYBELEC DNC 60, DNC 880, or Cybtouch series — the servo axis drive replacement does not require HMI reconfiguration. Axis parameters stored in the CNC controller are retained and can be reloaded after the drive swap, provided the controller’s battery-backed RAM is intact. If the CNC controller battery has not been replaced recently, this is an ideal time to address it alongside the drive module replacement.

In some older CYBELEC installations, the system also includes a CYBELEC I/O expansion module or a dedicated signal conditioning board for encoder feedback isolation. These components should be inspected during the retrofit to confirm signal integrity on the newly installed BLS112 drive. Where signal isolation is required, a DIN-rail-mounted signal isolator module can be inserted between the encoder output and the drive input without modifying the existing cabinet layout.

For facilities transitioning from a fully legacy CYBELEC V-SMC system to a modernized architecture, the V-SAC-CYB2020 V-SMC-BLS112 serves as a bridge component — maintaining compatibility with the existing CNC controller and HMI while providing a tested, warrantied servo drive that extends the operational life of the press brake by several years. This approach defers the cost and complexity of a full CNC system replacement while restoring full axis performance and closed-loop servo accuracy.

Retrofit Guidance FAQ

Q: Can I replace the V-SMC-BLS112 without reprogramming the CNC controller?
A: In most cases, yes. The V-SAC-CYB2020 V-SMC-BLS112 is a direct replacement for the V-SMC-BLS series. Axis parameters stored in the CYBELEC CNC controller are retained. After installation, a standard axis commissioning check — including encoder feedback verification and axis reference run — is recommended, but full reprogramming is typically not required.

Q: Is the wiring harness compatible with the new drive module?
A: Yes. The BLS112 uses the same CYBELEC backplane connector and motor/encoder wiring interface as earlier V-SMC-BLS series drives. Existing motor power cables and encoder feedback cables can be reused without modification.

Q: What communication protocol does the V-SMC-BLS112 use?
A: The V-SMC-BLS112 communicates via the CYBELEC internal CNC bus. No external fieldbus (e.g. PROFIBUS, CANopen, EtherCAT) configuration is required. The drive integrates directly with the CYBELEC CNC controller backplane.

Q: Will the module fit in the existing control cabinet without modification?
A: Yes. The V-SAC-CYB2020 V-SMC-BLS112 maintains the same physical form factor as the original V-SMC-BLS series drives, allowing direct installation into the existing CYBELEC control cabinet slot without mechanical modification.

Q: What if my system uses a different CYBELEC CNC controller version?
A: Please provide your CNC controller model and firmware version when placing your order. Our technical team will verify compatibility and advise on any parameter adjustments required before shipment.

Q: How do I verify the drive is functioning correctly after installation?
A: After installation, perform a standard CYBELEC axis commissioning sequence: power-on self-test, encoder feedback check, axis reference run, and a low-speed manual jog test. All status LEDs and fault codes should be verified against the CYBELEC V-SMC service manual.

Warranty Assurance

Every CYBELEC V-SAC-CYB2020 V-SMC-BLS112 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a pre-shipment functional inspection to verify power-on operation, connector integrity, and basic drive functionality. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing for industrial customers. Our after-sales response target is within 24 business hours of claim submission. Warranty coverage includes manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage, or physical mishandling.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with each shipment. Export packaging is designed for international air and sea freight, with anti-static protection and foam cushioning to ensure the module arrives in full working condition.

Stock is maintained in Xiamen, China, with standard lead times of 3–7 business days for international express shipment (DHL / FedEx). Bulk orders and long-term supply agreements are available — contact our team for volume pricing and reserved stock arrangements.
