Cutler-Hammer 1785T-PMPP-1700 Replacement for PLC-5

Product Overview

Cutler-Hammer 1785T-PMPP-1700 Replacement for PLC-5: Seamless Transition & Compatible Upgrade

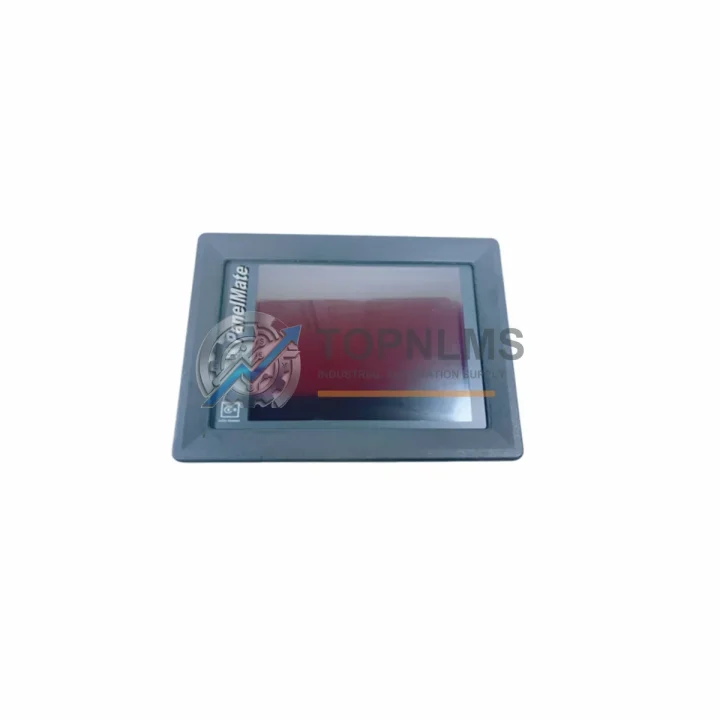

The Cutler-Hammer 1785T-PMPP-1700 (part number 92-01942-01) is a 1700-series touchscreen HMI operator interface panel engineered for the Allen-Bradley PLC-5 control platform. As legacy PLC-5 systems approach end-of-life and original 1785T-series panels become increasingly difficult to source, plant engineers and maintenance teams face mounting pressure to locate verified replacement units or plan a structured migration to a modern control architecture. TOPNLMS stocks tested, ready-to-ship 1785T-PMPP-1700 units and supports customers through every stage of the upgrade process — from initial compatibility assessment to on-site commissioning guidance.

The 1785T-PMPP-1700 communicates with the PLC-5 processor over the DH+ (Data Highway Plus) network using the standard DF1 full-duplex or half-duplex protocol. This communication architecture is shared across the broader 1785T panel family, meaning that existing DH+ cabling, termination resistors, and network node assignments can typically be retained without modification when swapping a failed unit for a verified replacement. The panel’s 17-inch resistive touchscreen, RS-232 programming port, and 24 VDC power input remain consistent with the original factory specification, eliminating the need to re-engineer the control cabinet power distribution or operator station wiring.

For facilities running a mixed PLC-5 and SLC 500 environment, the 1785T-PMPP-1700 can serve as the primary operator interface for both processor families through a shared DH+ backbone. In these installations, the panel typically coexists with components such as the 1785-L80B PLC-5/80 processor, 1771-OBD discrete output modules, 1771-IFE analog input modules, and 1771-ASB remote I/O adapter modules — all of which remain fully compatible with the existing DH+ network topology. Customers migrating from an older 1785T-PMPP-1400 or 1785T-PMPP-1500 panel will find that the 1700-series unit is a direct form-factor upgrade, requiring only a panel cutout adjustment and a firmware re-download to restore full operator functionality.

When the migration scope extends beyond a simple panel swap — for example, when the underlying PLC-5 processor itself is being replaced with a ControlLogix 1756-L73 or CompactLogix 1769-L33ER controller — the 1785T-PMPP-1700 can continue to operate as a transitional HMI during the phased cutover. A 1756-DHRIO communication module installed in the ControlLogix chassis bridges the new Logix platform to the existing DH+ segment, allowing the 1785T panel to maintain live data exchange with the new processor while legacy PLC-5 rungs are being converted to Studio 5000 Logix Designer ladder logic. This approach minimises production downtime by enabling parallel operation of old and new control layers during the transition window.

Power supply compatibility is a critical consideration in any HMI retrofit. The 1785T-PMPP-1700 operates on a 24 VDC nominal supply with a tolerance range of 18–30 VDC, consistent with standard 1606-XLP power supplies already deployed in most PLC-5 control cabinets. No additional power conditioning or DC-DC conversion is required in the majority of retrofit scenarios, provided the existing supply has sufficient current headroom. Where cabinet space is constrained, the panel’s slim-depth mounting profile allows installation in enclosures originally designed for the 1400-series units, subject to the panel cutout dimensions specified in publication 2711-UM014.

Programming and configuration of the replacement 1785T-PMPP-1700 is performed using PanelBuilder 1400e software, with application files transferred via the RS-232 serial port using a standard 1747-CP3 programming cable or a USB-to-serial adapter. Customers who have retained their original .PBA project files can restore the complete operator interface — including alarm pages, trend displays, and recipe management screens — without rebuilding from scratch. TOPNLMS recommends verifying the firmware revision of the replacement unit against the original panel before transfer to ensure full application compatibility; our technical team can confirm firmware versions prior to shipment on request.

For installations where the 1785T-PMPP-1700 is being integrated into a modernised control cabinet alongside newer components — such as a 1756-EN2T EtherNet/IP communication module, a 1783-US5T Stratix 2000 unmanaged switch, or a PowerFlex 525 AC drive — the DH+ segment carrying the HMI can be isolated from the Ethernet backbone using the 1756-DHRIO bridge, maintaining network segmentation and cybersecurity best practices without disrupting the operator interface layer.

Signal isolation is another common requirement in retrofit projects involving legacy HMI panels. Where the original installation used 1492-AIFM8-F-5 analog interface modules or third-party signal isolators between field transmitters and the PLC-5 I/O chassis, these components remain fully compatible with the 1785T-PMPP-1700 replacement and do not require reconfiguration. The panel reads process values directly from the PLC-5 data table, so field wiring and signal conditioning upstream of the processor are transparent to the HMI layer.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1785T-PMPP-1700 retrofit rarely involves the HMI panel in isolation. In practice, the replacement is coordinated alongside a broader set of control system components to ensure the upgraded operator station integrates cleanly with the surrounding architecture. The 1756-DHRIO dual-port DH+/Remote I/O communication module is the most common companion component, providing the bridge between a new ControlLogix or CompactLogix processor and the existing DH+ network that the 1785T panel relies on. Where the PLC-5 processor itself is being replaced, the 1785-L80B or 1785-L60B processor module may be retained as an interim unit while the HMI migration is completed, deferring the full processor cutover to a planned maintenance window.

On the I/O side, 1771-OBD 16-point 24 VDC discrete output modules and 1771-IFE 8-channel analog input modules in the existing 1771 I/O chassis continue to operate without modification during and after the HMI swap. Remote I/O drops connected via 1771-ASB adapter modules are equally unaffected, as the 1785T-PMPP-1700 communicates exclusively over DH+ and does not interact directly with the Remote I/O scanner. For facilities adding Ethernet connectivity to the modernised control cabinet, a 1783-US5T Stratix 2000 unmanaged switch provides a cost-effective means of connecting the ControlLogix chassis, engineering workstation, and any EtherNet/IP-capable drives or instruments without disrupting the DH+ segment serving the HMI. Where variable-speed drives are part of the upgrade scope, PowerFlex 525 or PowerFlex 755 AC drives with EtherNet/IP adapters can be integrated into the new Logix architecture while the 1785T panel continues to display drive status via PLC-5 data table tags during the transition period.

Retrofit Guidance FAQ

Q: Can I reuse my existing DH+ cabling and termination resistors?
A: Yes. The 1785T-PMPP-1700 uses the same DH+ physical layer as the 1400 and 1500-series panels. Existing Belden 9463 shielded twisted-pair cabling, termination resistors, and node address settings are fully compatible. Verify that the replacement unit’s node address is set to match the original panel before powering up.

Q: Do I need to rebuild my PanelBuilder application from scratch?
A: No. Existing .PBA project files created in PanelBuilder 1400e are directly compatible with the 1785T-PMPP-1700. Transfer the application via the RS-232 port using a 1747-CP3 cable or USB-to-serial adapter. Confirm firmware revision compatibility with TOPNLMS prior to shipment if your application uses advanced features.

Q: What panel cutout dimensions are required for the 1700-series unit?
A: The 1785T-PMPP-1700 requires a larger panel cutout than the 1400 or 1500-series units. Refer to publication 2711-UM014 for exact cutout dimensions. In most cases, the existing enclosure can accommodate the larger cutout with minor sheet metal modification; TOPNLMS can provide dimensional drawings on request.

Q: Is the 1785T-PMPP-1700 compatible with SLC 500 processors as well as PLC-5?
A: Yes. The panel communicates over DH+, which is supported by both PLC-5 and SLC 500 processors equipped with a DH+ port. No configuration changes are required when the panel is used in a mixed PLC-5/SLC 500 DH+ network.

Q: Can the 1785T-PMPP-1700 coexist with a new ControlLogix system during a phased migration?
A: Yes. Install a 1756-DHRIO module in the ControlLogix chassis to bridge the new processor to the existing DH+ segment. The 1785T panel will communicate with the ControlLogix processor via the DHRIO bridge, allowing parallel operation during the cutover period without any changes to the HMI application or DH+ wiring.

Q: What is the lead time and shipping arrangement?
A: Units in stock ship within 1–3 business days from Xiamen, China via DHL Express, FedEx International Priority, or sea freight depending on order volume. TOPNLMS provides a commercial invoice, packing list, and test report with every shipment. Expedited shipping is available on request.

Warranty Assurance

Every Cutler-Hammer 1785T-PMPP-1700 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional test protocol that verifies touchscreen calibration, DH+ communication, power supply input range, and display integrity. A test report is included with the shipment documentation.

In the event of a warranty claim, TOPNLMS will arrange a replacement unit or full refund within the warranty period, subject to inspection of the returned item. Our technical support team is available via email and phone to assist with installation queries, firmware compatibility questions, and commissioning issues. Response time for technical enquiries is within 1 business day.

For procurement teams requiring additional assurance, TOPNLMS can provide a certificate of conformance, material traceability documentation, and third-party inspection reports on request. Bulk orders and long-term supply agreements are supported with priority allocation and extended warranty options.

TOPNLMS is committed to supporting industrial facilities through the full lifecycle of their control system assets — from emergency replacement of failed components to structured migration programmes that extend operational life and reduce total cost of ownership.
