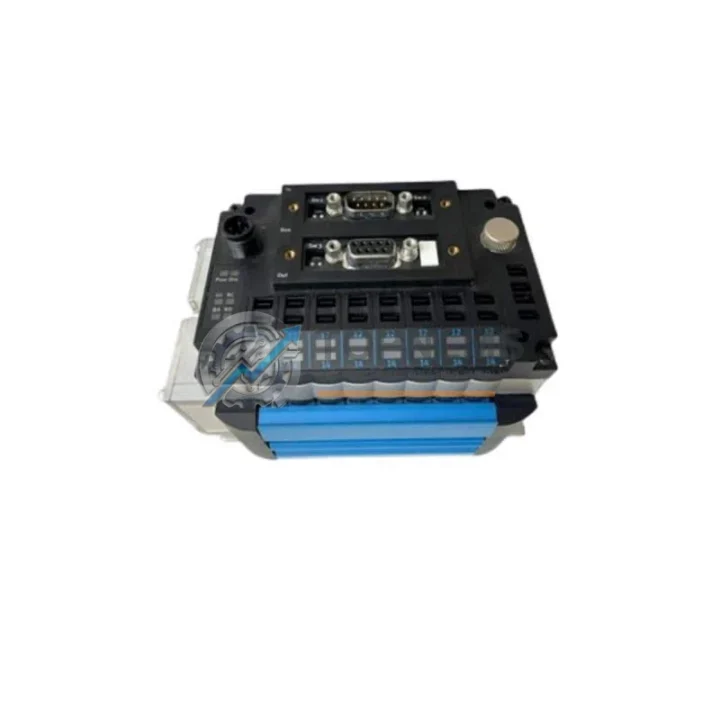

FESTO CPV10-VI 18200 Ruggedized Valve Manifold Module

Product Overview

FESTO CPV10-VI 18200 Ruggedized Valve Manifold Module: Industrial Resilience for Harsh Environments

The FESTO CPV10-VI 18200 is a compact, ruggedized pneumatic valve manifold from the CPV10 Series Valve Island platform — engineered to deliver consistent, reliable pneumatic switching performance in the most demanding industrial environments. Whether deployed in high-humidity food processing lines, dusty mining conveyor systems, vibration-intensive automotive assembly cells, or high-temperature foundry control cabinets, the CPV10-VI 18200 maintains precise directional control of compressed air circuits without compromise.

TOPNLMS maintains verified stock of the CPV10-VI 18200 sourced through authorized supply channels. Every unit is pre-shipment inspected and ships with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to order for both immediate replacement and critical spare parts inventory.

Rugged Specifications Table

Comprehensive Protection Solutions

In harsh industrial environments, the CPV10-VI 18200 valve manifold rarely operates in isolation. It is typically integrated into a broader pneumatic and electrical control architecture that must collectively withstand the same environmental stresses. In automotive body-in-white welding lines, for example, the CPV10-VI 18200 is mounted alongside FESTO CPX-FB33 fieldbus nodes that translate PROFIBUS DP commands from a SIMATIC S7-300 CPU 315-2 DP into individual valve switching signals — a combination that has proven robust across thousands of production cycles in high-EMI welding environments.

For facilities running DeviceNet or CANopen networks, the FESTO CPX-FB32 or CPX-FB34 communication modules are the standard pairing with the CPV10 valve island, providing deterministic cycle times even in electrically noisy environments where variable-frequency drives such as the SINAMICS G120 or PowerFlex 755 generate significant harmonic interference on the plant floor.

Power supply integrity is critical in harsh environments. The CPV10-VI 18200’s solenoid coils are powered via the CPX terminal’s integrated 24 VDC supply rail, but many installations also incorporate a dedicated SITOP PSU200M 24V/10A regulated power supply to buffer against voltage sags caused by large motor starts or welding equipment. This prevents nuisance valve de-energization events that can halt production lines unexpectedly.

On the sensing side, plants with dusty or wet environments frequently pair the CPV10 valve island with FESTO SIEN series inductive proximity sensors and SME-8 magnetic cylinder sensors mounted on pneumatic actuators. These sensors feed position feedback signals back through the CPX terminal’s I/O modules, enabling the PLC to confirm actuator travel completion before advancing the machine cycle — a critical safety interlock in press and clamping applications.

For applications in explosive atmospheres or ATEX-classified zones, the CPV10-VI 18200 is often used in conjunction with FESTO CPX-CMAX axis controllers and intrinsically safe signal isolators such as the PHOENIX CONTACT MINI MCR-SL-UI-UI-NC, which galvanically isolate the valve control signals from the hazardous area wiring. This configuration is common in oil and gas wellhead control panels and chemical plant valve actuator skids.

Where the control cabinet also houses a FESTO VUVG series individual solenoid valve or a MFH-5 manually operated safety valve for emergency venting, the CPV10-VI 18200 integrates seamlessly into the same compressed air manifold block, sharing the common supply and exhaust ports without requiring additional fittings or pressure regulators.

Application in Critical Infrastructure

The FESTO CPV10-VI 18200 has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences.

In oil and gas upstream and midstream facilities, the CPV10 valve island controls pneumatic actuators on wellhead choke valves, pipeline isolation valves, and separator inlet/outlet controls. The module’s IP65 protection and wide operating temperature range make it suitable for outdoor skid-mounted control panels exposed to coastal humidity, sand ingress, and temperature extremes from -5 °C to +50 °C.

In mining and mineral processing plants, the CPV10-VI 18200 manages pneumatic cylinders on conveyor belt tensioners, flotation cell dart valves, and crusher feed gates. The vibration resistance of the CPV10 platform is particularly valued in these applications, where continuous mechanical vibration from crushers and mills would cause premature failure in less robust valve manifold designs.

In power generation facilities — including coal-fired, gas turbine, and hydroelectric plants — the CPV10-VI 18200 is deployed in turbine bypass valve control systems and cooling water flow control circuits. The module’s compatibility with PROFIBUS DP networks allows seamless integration with plant-level DCS systems such as the Siemens SPPA-T3000 or ABB System 800xA, enabling centralized monitoring and remote diagnostics without additional protocol converters.

In water and wastewater treatment plants, the CPV10 valve island controls pneumatic actuators on filter backwash valves, chemical dosing pump isolation valves, and aeration basin inlet gates. The IP65 rating provides reliable protection against the high-humidity, chemically aggressive atmosphere typical of these facilities.

In metallurgy and steel production, the CPV10-VI 18200 is used in continuous casting machine hydraulic/pneumatic hybrid control panels, where it manages cooling water spray valve sequencing and mold oscillation pneumatic circuits. The module’s ability to sustain reliable operation in the presence of intense electromagnetic fields generated by induction furnaces and arc furnaces is a key selection criterion for plant engineers in this sector.

Security & Quality FAQ

Q: What does the 12-month warranty cover, and what is the claims process?
A: The 12-month warranty covers all manufacturing defects, functional failures, and component faults identified under normal operating conditions from the date of shipment. In the event of a confirmed warranty claim, TOPNLMS will dispatch a replacement unit within 72 hours of fault confirmation for in-stock items, or issue a full refund — whichever the customer prefers. There are no restocking fees. Initial fault assessment is completed within 24 hours of receiving the customer’s defect report with supporting documentation (photos, test results, or fault description).

Q: What pre-shipment testing is performed on each CPV10-VI 18200 unit?
A: Every unit undergoes a pre-shipment inspection protocol that includes visual examination of the manifold body, solenoid coil continuity testing, connector pin integrity verification, and a functional switching test at rated supply voltage. Units that do not pass all inspection criteria are quarantined and not dispatched. A test record is available upon request for quality-critical procurement processes.

Q: Is the CPV10-VI 18200 compatible with my existing CPX terminal and fieldbus configuration?
A: The CPV10-VI 18200 is designed as a direct interface module for the FESTO CPV10 valve island platform. It is compatible with all standard CPX terminal configurations using PROFIBUS DP, DeviceNet, CANopen, and EtherNet/IP fieldbus nodes. If your installation uses a specific CPX-FB communication module variant, please contact our technical sales team with your existing CPX terminal part number to confirm compatibility before ordering.

Q: Can TOPNLMS support long-term supply for maintenance and spare parts programs?
A: Yes. TOPNLMS specializes in supporting industrial facilities that require consistent, long-term access to automation spare parts — including models that are difficult to source through standard distribution channels. We offer batch ordering with staggered delivery schedules, consolidated packing documentation, and COO certificates for customs clearance. For critical spare parts programs, we recommend contacting our team to discuss reserved stock arrangements and volume pricing.

Contact our technical sales team to confirm stock availability, request a proforma invoice, or discuss volume pricing:

• Email: [email protected]
• Phone / WhatsApp: +86 18359293191
• Website: https://topnlms.com
