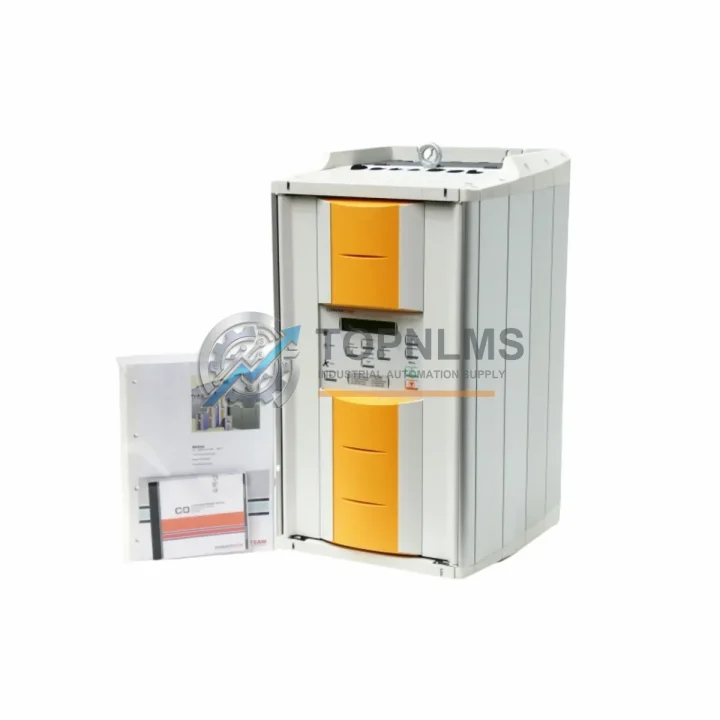

CONVERTEAM MD2000 54-400 Ruggedized AC Drive for Harsh Environments

Product Overview

CONVERTEAM MD2000 54-400: Industrial Resilience for Harsh-Environment Motor Control

The CONVERTEAM MD2000 54-400 is a medium-power AC variable frequency drive (VFD) engineered for uncompromising performance in the most demanding industrial environments. Built for continuous-duty process motor control, this drive withstands high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference — conditions routinely encountered in oil & gas facilities, mining operations, power generation plants, water treatment stations, metallurgical mills, and heavy chemical processing lines.

Where standard drives fail under thermal stress or EMI-induced faults, the MD2000 54-400 maintains stable vector control and precise speed regulation across its full operating range. Its robust power stage, reinforced gate-drive circuitry, and conformal-coated PCBs ensure that motor current remains clean and consistent even when the surrounding environment is anything but. For plant engineers and procurement specialists who cannot afford unplanned downtime, the MD2000 54-400 represents a proven, bankable solution backed by CONVERTEAM’s legacy in marine, offshore, and heavy-industry drive technology.

At TOPNLMS, every MD2000 54-400 unit is sourced through verified supply channels, individually inspected prior to dispatch, and shipped with full traceability documentation. Our inventory is maintained specifically to support emergency replacement, scheduled maintenance, and new-installation projects across global industrial sites.

Rugged Specifications Table

Comprehensive Protection Solutions

The MD2000 54-400 is a critical node within a broader control architecture. In a typical heavy-industry control cabinet, this drive interfaces directly with a Siemens S7-400 CPU or S7-300 series PLC via PROFIBUS-DP, receiving speed references and returning diagnostic telegrams in real time. Upstream, a dedicated line reactor — such as those in the CONVERTEAM or Siemens 6SE70 accessory range — conditions the incoming supply, suppressing voltage transients before they reach the drive’s rectifier stage and protecting the DC bus from grid-borne disturbances.

On the output side, motor winding protection is reinforced by a thermistor relay module — such as the Siemens 3RN1 series — which monitors winding temperature and trips the drive safely before thermal damage occurs. For applications requiring functional safety certification, the MD2000 54-400 integrates with a Pilz PNOZ safety relay or a Siemens ET 200SP F-DI safety input module to implement STO (Safe Torque Off) and SS1 (Safe Stop 1) functions in compliance with IEC 62061 and ISO 13849-1, meeting PLd/SIL 2 requirements for machinery and process plant safety.

Communication integrity across the control loop is maintained by PROFIBUS repeaters and optical fiber converters where cable runs exceed 100 m or where galvanic isolation is required in high-voltage environments. The 24 V DC control rail — powering PLCs, I/O modules, relay coils, and HMI panels — is typically supplied by a Phoenix Contact QUINT-POWER SMPS, whose active power boost and selective fusing prevent a single load fault from collapsing the entire control bus.

For distributed I/O expansion, the MD2000 54-400 pairs naturally with Siemens ET 200M or ET 200S remote I/O stations, enabling analog speed feedback, digital run/fault signals, and process variable monitoring to be distributed across the machine frame without long home-run cables. Where Modbus RTU is the plant standard, a Moxa MB3170 protocol gateway bridges the drive’s serial port to the supervisory SCADA or DCS network, ensuring that the MD2000 54-400 integrates cleanly into both legacy and modern control architectures without requiring hardware replacement of the host system.

Power quality for the entire panel is managed at the incomer by a Schneider Electric Acti9 or Compact NSX molded-case circuit breaker, providing coordinated short-circuit and overload protection that isolates the drive without tripping adjacent critical loads — a key requirement in continuous-process industries where selective coordination is mandatory.

Application in Critical Infrastructure

In offshore oil & gas platforms, the MD2000 54-400 controls seawater lift pumps and gas compressor motors where salt-laden air, constant vibration from wave action, and strict ATEX zone requirements demand a drive with proven marine-grade robustness. Its conformal-coated boards resist corrosion, and its EMC filtering meets the stringent requirements of DNV-GL and ABS classification societies, making it a preferred choice for topside and subsea auxiliary motor control.

In underground mining operations, the drive manages conveyor belt motors and ventilation fan drives in environments saturated with coal dust, silica particulates, and diesel exhaust. The drive’s internal thermal management — combined with the IP54 enclosure option — prevents particulate ingress while maintaining adequate cooling airflow for continuous 24/7 operation at full rated load, reducing the risk of thermal derating that would otherwise curtail production throughput.

At municipal water treatment and pumping stations, the MD2000 54-400 delivers precise flow control for high-head centrifugal pumps, reducing water hammer events and extending pump seal life. Its PID feedback loop integrates directly with pressure transmitters and electromagnetic flow meters via the analog I/O card, eliminating the need for a separate process controller in smaller installations and reducing panel footprint and wiring complexity.

In steel and aluminum smelting facilities, where furnace transformers generate severe harmonic distortion and voltage sags, the drive’s robust DC bus capacitor bank and active front-end option maintain stable motor torque even during grid disturbances — a capability that directly protects production continuity and prevents costly re-melts or furnace cool-down events that can damage refractory linings.

For power generation and substation auxiliary systems, the MD2000 54-400 drives cooling fans, lube oil pumps, and exciter motors in environments where ambient temperatures regularly exceed 45 °C and where a single drive failure can cascade into a unit trip. Its redundant gate-drive power supplies and built-in fault logging via the PROFIBUS interface allow maintenance teams to diagnose and resolve issues before they escalate to forced outages.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions from the date of shipment. If a unit exhibits a fault within the warranty period, TOPNLMS will arrange collection, perform root-cause analysis, and provide either a repaired unit or a direct replacement — whichever is faster. Warranty claims are initiated by contacting [email protected] with the order reference and a description of the fault symptom.

Q2: How is each MD2000 54-400 unit tested before shipment?
Every unit undergoes a pre-shipment functional inspection that includes power-on verification, output voltage balance check across all three phases, communication port handshake test (PROFIBUS-DP and Modbus RTU), and visual inspection of bus bars, terminal blocks, and PCB condition. Units that do not pass all checkpoints are quarantined and not dispatched. A test report is available upon request for critical-infrastructure procurement.

Q3: Is the MD2000 54-400 compatible with my existing PLC and motor?
The MD2000 54-400 supports PROFIBUS-DP and Modbus RTU natively, making it compatible with Siemens S7-300/400/1500, ABB AC500, Schneider Modicon M340/M580, and most other major PLC platforms. On the motor side, it is suitable for standard 4-pole induction motors rated for the corresponding voltage and power class. For synchronous or permanent-magnet motors, confirm the control mode configuration with our technical team before ordering.

Q4: Can TOPNLMS guarantee long-term supply and support for the MD2000 series?
Yes. TOPNLMS maintains a dedicated inventory of MD2000 series drives and spare parts — including power cards, control boards, and gate-drive modules — to support both emergency replacement and planned maintenance programs. We work with multiple verified supply partners to ensure continuity even for legacy or discontinued models. For long-term supply agreements or blanket purchase orders, contact our sales team to discuss volume pricing and reserved stock arrangements.
