Control Techniques STDO32 Original Industrial Spare Unidrive SP/M Compatible

Product Overview

Control Techniques STDO32 Original Industrial Spare Unidrive SP/M Compatible: System Stability & Industrial Spare Parts Maintenance Value

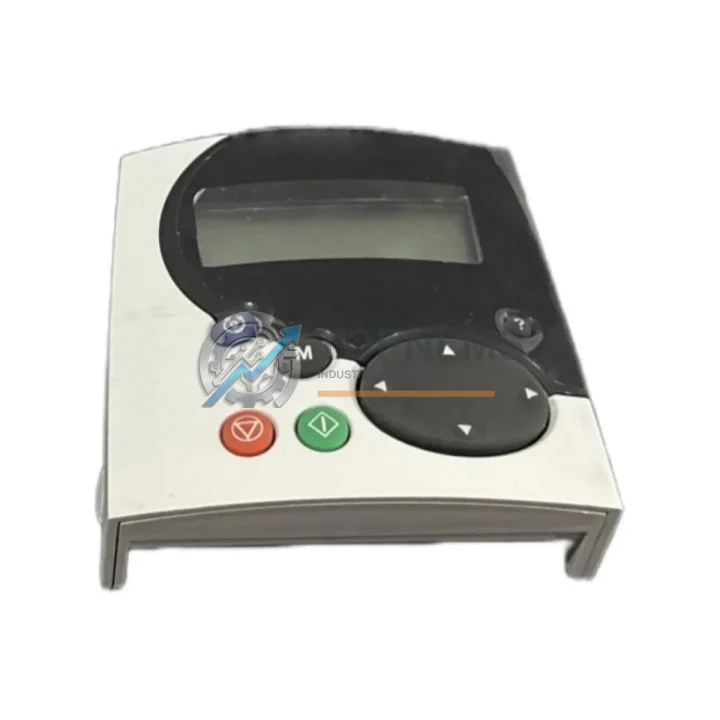

The Control Techniques STDO32 SM-Keypad Plus is an original option module designed for the Unidrive SP and Unidrive M series of AC variable speed drives. In industrial environments where drive uptime is non-negotiable, the STDO32 serves as a critical human-machine interface at the drive level — enabling local parameter programming, drive commissioning, status monitoring, and fault diagnostics without the need for a connected PC or external HMI. For maintenance engineers managing aging Unidrive SP installations across multi-drive control panels, having a verified original STDO32 in stock is a foundational element of any serious preventive maintenance program.

The STDO32 mounts directly onto the front of compatible Unidrive SP and Unidrive M frames, providing a compact, panel-integrated keypad interface. Its backlit LCD display and intuitive navigation allow technicians to access parameter menus, monitor real-time drive status, and execute manual jog or run commands directly at the drive — a capability that is indispensable during commissioning, fault investigation, and post-repair verification. In facilities running legacy Unidrive SP systems, the STDO32 is often the only local interface available, making its availability in the spare parts inventory a direct factor in mean time to repair (MTTR).

For procurement and maintenance managers, sourcing an original STDO32 from a verified supplier eliminates the risk of counterfeit or incompatible aftermarket modules that can corrupt drive parameters or cause communication faults. Each unit supplied by TOPNLMS is tested prior to shipment and backed by a 12-month warranty, providing documented assurance for both incoming inspection and asset management records.

Critical Technical Specs Table

Preventive Maintenance Strategy

A scheduled drive maintenance program for Unidrive SP or Unidrive M installations should treat the STDO32 as one component within a broader system health review. During a planned shutdown or annual inspection, maintenance teams should simultaneously assess the condition of the SM-I/O Plus (STDI32) digital and analog I/O expansion module, which works alongside the keypad module to extend the drive’s field connectivity. If the control cabinet houses multiple Unidrive SP units, the SM-Applications module (STDA32) should also be checked for firmware integrity and parameter backup status, as it stores application logic that would be lost in the event of a drive board failure.

Power supply integrity is equally critical. The 24VDC control power supply feeding the Unidrive SP control board and option modules should be tested for voltage stability and ripple — a degraded PSU is a common root cause of intermittent keypad communication faults and parameter corruption. At the same time, inspect the drive’s internal DC bus capacitors and cooling fans, both of which have defined service life intervals and directly affect drive longevity in high-cycle applications.

At the field wiring level, the terminal blocks and control wiring connected to the drive’s control terminals (typically 24V digital inputs, analog reference inputs, and relay outputs) should be inspected for loose connections, insulation degradation, and correct torque. Ferrule-terminated control cables and DIN-rail mounted terminal blocks adjacent to the drive are frequent sources of intermittent faults that are misdiagnosed as drive or keypad failures. Surge protection devices on analog input circuits and signal isolators on 4–20mA reference signals should also be verified during this inspection cycle.

For facilities using Unidrive SP drives in networked configurations, the SM-Profibus (STDP32) or SM-DeviceNet (STDD32) communication option modules installed in the drive’s option slots should be inspected for secure seating and firmware version compatibility with the plant’s PLC or DCS system. A loose or firmware-mismatched communication module can cause intermittent drive trips that are difficult to diagnose without a functioning STDO32 keypad for local fault code readout.

Finally, the Unidrive SP’s braking resistor circuit — including the braking resistor itself, the thermal overload protection relay, and the associated wiring — should be tested during any planned maintenance window. Braking resistor failures in high-inertia applications are a leading cause of unplanned drive shutdowns, and a pre-stocked replacement resistor assembly alongside the STDO32 keypad module significantly reduces recovery time when a fault occurs.

Strategic Replacement Solutions

The STDO32 SM-Keypad Plus has been in service across Unidrive SP installations since the mid-2000s, and many of these systems remain in active production use. As original equipment ages, keypad modules are subject to LCD degradation, connector wear, and button mechanism fatigue — all of which manifest as intermittent display failures or unresponsive parameter navigation. Rather than replacing an entire Unidrive SP drive due to a failed keypad interface, sourcing a replacement STDO32 allows maintenance teams to restore full drive functionality at a fraction of the cost of a drive replacement.

For facilities transitioning from Unidrive SP to Unidrive M platforms, the STDO32 is also compatible with Unidrive M frames, providing continuity of maintenance tooling and technician familiarity across both generations of drives. This cross-series compatibility reduces the number of spare part SKUs that need to be stocked in the maintenance inventory, simplifying procurement and reducing carrying costs.

In multi-drive installations where several Unidrive SP units share a common control architecture, maintaining at least one STDO32 per control cabinet — or per maintenance zone — is a recognized best practice. The ability to swap a keypad module between drives during fault investigation (to isolate whether a fault is keypad-related or drive-related) is a diagnostic technique that experienced drive technicians rely on, and it requires having a verified spare on hand.

TOPNLMS supplies the STDO32 as an original Control Techniques component, sourced through verified industrial supply channels. Each unit undergoes functional testing prior to shipment, and all orders are supported by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Expedited shipping options are available to support urgent maintenance requirements and minimize production downtime.
