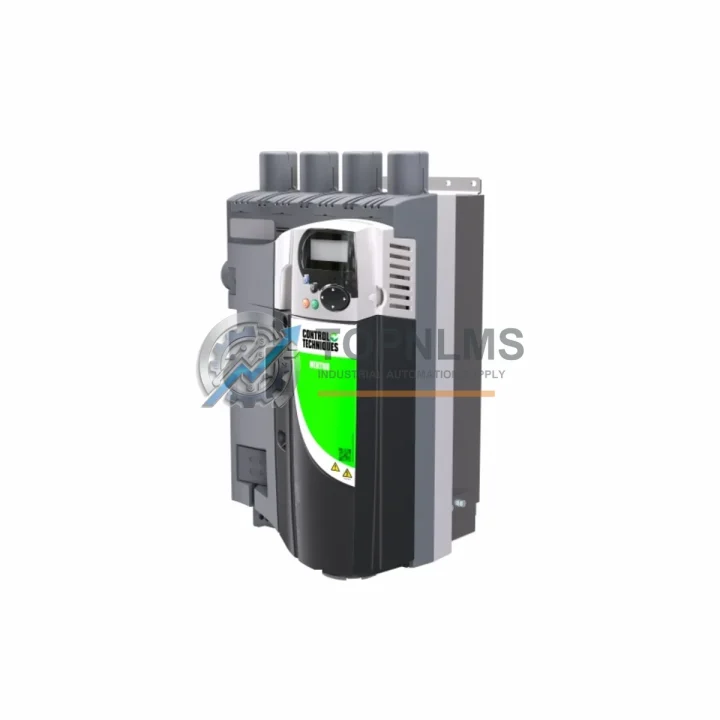

Control Techniques MP210A4R Original Industrial Spare Mentor MP

Product Overview

Control Techniques MP210A4R Original Industrial Spare Mentor MP: System Stability and Reliable DC Drive Maintenance

The Control Techniques MP210A4R is an original regenerative DC drive from the Mentor MP series, rated at 210A output current for four-quadrant operation. Designed for demanding industrial environments, this drive delivers precise speed and torque control for DC motor applications across manufacturing, paper, metals, printing, and process industries. Securing an original MP210A4R as a verified spare is a critical step in protecting system uptime, reducing unplanned downtime risk, and extending the operational life of legacy and active DC drive installations.

At TOPNLMS, every MP210A4R unit is sourced from authorized supply channels, inspected prior to dispatch, and backed by a 12-month warranty. We ship globally with full documentation support to ensure your maintenance team can install and commission with confidence.

Critical Technical Specs

Preventive Maintenance Strategy

When a Control Techniques MP210A4R is flagged for replacement or scheduled inspection, experienced maintenance engineers treat the event as an opportunity to audit the entire DC drive cabinet and associated control loop. A single drive fault rarely occurs in isolation — thermal stress, supply fluctuations, and aging components affect the entire system simultaneously.

Begin with the incoming power supply: verify that the three-phase AC supply feeding the MP210A4R is within tolerance. A degraded or unbalanced supply accelerates thyristor wear and can cause nuisance trips. If your site uses a Control Techniques MP210A4R alongside other Mentor MP variants such as the MP75A4R or MP155A4R, inspect all drives in the same cabinet during the same maintenance window — shared bus bars and fusing affect all units equally.

Next, inspect the field supply wiring and field controller output. Weak or intermittent field excitation is a leading cause of DC motor instability and drive protection trips. While the MP210A4R includes an integrated field controller, the field suppression diode assembly and associated wiring should be checked for continuity and insulation integrity. At the same time, verify the condition of the armature feedback cables and encoder or tachogenerator connections — signal noise on the speed feedback loop directly degrades drive performance and can trigger false fault codes.

For sites running Mentor MP drives within a broader Control Techniques or Unidrive M automation architecture, it is advisable to simultaneously inspect any SI-DeviceNet, SI-PROFIBUS, or SI-EtherNet/IP communication option modules installed in adjacent drives. Communication module failures are often misdiagnosed as drive faults, leading to unnecessary drive replacements. Keeping a spare communication module alongside your MP210A4R spare reduces diagnostic time significantly.

The control terminal block and I/O wiring deserve close attention during any Mentor MP maintenance event. Loose terminals on analog reference inputs (0–10 V or 4–20 mA) or digital enable signals are a common root cause of intermittent drive trips. Inspect and re-torque all terminal connections, and consider replacing aging terminal ferrules and DIN rail terminal blocks if the installation is more than five years old.

For facilities managing multiple DC drive systems, a structured spare parts inventory should include: the MP210A4R drive unit itself, a set of matched AC line fuses rated for the 210A application, a spare 24 V DC control power supply module (many Mentor MP installations use a dedicated SMPS for control logic), and at least one spare keypad / parameter cloning unit (MP-Keypad) to enable rapid parameter transfer during emergency replacements. If your system uses PLC-based sequencing — for example, a Siemens S7-300 or Allen-Bradley ControlLogix coordinating the drive — ensure the PLC I/O module interfacing with the MP210A4R enable and fault signals is also included in your preventive maintenance checklist.

Finally, document the drive’s parameter set before any replacement. The Mentor MP stores all tuning parameters internally; a parameter backup to the MP-Keypad or via CT Connect / DSE Lite software takes less than two minutes and eliminates hours of recommissioning time during an emergency swap.

Strategic Replacement Solutions

The MP210A4R is a direct form-fit-function replacement for earlier Mentor MP 210A four-quadrant units and can serve as a functional upgrade path from the legacy Mentor II MD45C4000 and similar predecessor models, subject to parameter mapping and field wiring verification. This makes it an ideal solution for facilities committed to extending the life of existing DC motor infrastructure without the capital cost of converting to AC variable frequency drive systems.

Replacing a failed or end-of-life DC drive with an original Control Techniques MP210A4R preserves the existing motor, gearbox, and mechanical drivetrain investment. Unlike AC retrofit projects — which require motor replacement, encoder installation, and extensive recommissioning — a like-for-like DC drive replacement can be completed within a single maintenance shift, minimizing production loss.

For multi-drive installations, maintaining a one-for-one hot spare policy for the MP210A4R is the most effective strategy for facilities where DC drive failure results in line stoppage. TOPNLMS supports bulk spare procurement with consistent unit testing, serialized documentation, and coordinated delivery scheduling to align with your planned maintenance cycles.

All MP210A4R units dispatched by TOPNLMS are tested for basic electrical integrity prior to shipment. Units are packaged in anti-static, shock-resistant packaging suitable for international freight. Full traceability documentation is provided upon request.

Support FAQ

Q1: Is the MP210A4R compatible with my existing Mentor MP installation without rewiring?
In most cases, yes. The MP210A4R is designed as a direct replacement within the Mentor MP family. Control terminal pinouts, power connections, and parameter structures are consistent across the Mentor MP range. Minor parameter adjustments may be required if replacing a unit from a different current rating bracket. We recommend backing up existing parameters before installation.

Q2: What is the warranty coverage on the MP210A4R supplied by TOPNLMS?
All units carry a 12-month warranty from the date of dispatch. Coverage includes manufacturing defects and verified functional failures under normal operating conditions. Each unit undergoes pre-shipment inspection. Warranty claims are supported with full documentation and technical assistance.

Q3: How quickly can the MP210A4R be dispatched, and what shipping options are available?
In-stock units are typically dispatched within 1–3 business days. We support express international freight (DHL, FedEx, UPS) and standard economy shipping. Customs documentation, including commercial invoices and certificates of origin, is provided for all international orders. Contact us for lead time confirmation on your specific quantity requirement.

Q4: Can TOPNLMS supply multiple MP210A4R units for a planned maintenance stock program?
Yes. We support bulk and scheduled procurement for maintenance stock programs. Volume pricing is available, and we can coordinate phased delivery to match your inventory planning cycles. Contact our technical sales team to discuss your site’s spare parts strategy and annual consumption requirements.
