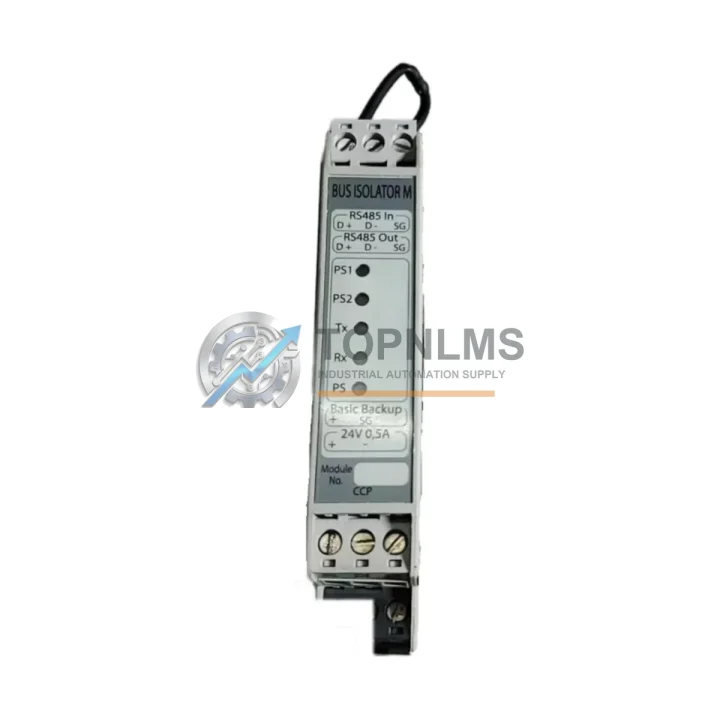

Consilium 5100070-02A Original Industrial Spare 5100 Series Compatible

Product Overview

Consilium 5100070-02A Original Industrial Spare 5100 Series Compatible: System Stability & Industrial Spare Maintenance Value

The Consilium 5100070-02A Bus Isolator Module Head Assembly is a critical original spare component within the Consilium 5100 Series fire detection and safety system architecture. Designed to isolate faults on the detection loop and prevent cascading failures across the entire addressable loop network, this module is indispensable for facilities that operate continuous-process environments where unplanned downtime carries significant operational and safety risk. Whether you are managing a scheduled shutdown inspection, responding to an unplanned fault event, or building a strategic spare parts inventory, the 5100070-02A represents a high-priority line item in any responsible maintenance program.

In industrial facilities — including offshore platforms, chemical processing plants, power generation stations, and large-scale manufacturing complexes — fire detection systems must maintain 100% loop integrity at all times. A failed or degraded bus isolator can compromise an entire detection segment, triggering nuisance alarms or, more critically, creating blind spots in the safety coverage map. Stocking a verified original Consilium 5100070-02A ensures that your maintenance team can execute a like-for-like replacement within minutes of fault identification, restoring full loop continuity without waiting on extended lead times from the OEM supply chain.

Critical Technical Specs Table

Preventive Maintenance Strategy

A bus isolator module does not operate in isolation — it is one node in a broader addressable loop ecosystem. When performing a scheduled inspection or fault-driven replacement of the Consilium 5100070-02A, experienced maintenance engineers consistently recommend a concurrent review of adjacent loop components to maximize the value of each planned downtime window and reduce the probability of a repeat callout within the same maintenance cycle.

Begin with the Consilium 5100 Series addressable detector bases mounted in the same loop segment. Detector bases accumulate oxidation and contact resistance over time, and a compromised base can generate intermittent fault signals that are easily misattributed to the isolator module itself. While the control cabinet is open and the loop is de-energized, inspect and test each base in the affected segment.

Next, verify the condition of the loop wiring and terminal blocks feeding the isolator. Loose or corroded terminals are a leading cause of nuisance isolator trips in humid or marine environments. Replacing worn terminal blocks — particularly the Consilium 5100 Series loop terminal assemblies — during the same visit eliminates a common repeat-fault vector.

The Consilium 5100 Series smoke detectors (optical and ionization variants) installed in the same loop zone should be functionally tested and cleaned. Detectors that have exceeded their recommended service interval can generate excessive quiescent current draw, stressing the isolator module and reducing its operational lifespan. If any detector is approaching its end-of-life threshold, proactive replacement during the same maintenance window is strongly advised.

For facilities running the Consilium SeaCure or Aquasense fire panel as the host controller, confirm that the panel’s loop card firmware is current and that the loop configuration database accurately reflects the installed isolator address. Mismatched address maps are a frequent source of false fault logs that can mask genuine hardware degradation.

The Consilium 5100 Series manual call points and sounder/beacon units wired into the same loop segment should also be tested for correct operation. A sounder with a shorted output can place abnormal load on the loop, and a call point with a damaged glass element may generate intermittent contact signals. Addressing these components concurrently with the isolator replacement ensures the entire loop segment is returned to a verified, fault-free state.

Finally, inspect the 24 VDC power supply module feeding the fire panel and its associated battery backup. An under-voltage condition at the panel PSU is a systemic root cause that can trigger multiple downstream component faults simultaneously. Stocking a spare Consilium 5100 Series PSU module alongside the bus isolator is a recognized best practice in high-availability fire safety maintenance programs.

Strategic Replacement Solutions

The Consilium 5100 Series has been deployed across a wide range of industrial and marine installations since its introduction, and many of these systems remain in active service well beyond their original design lifecycle. As OEM production of certain 5100 Series components transitions to end-of-life status, sourcing verified original spare parts becomes increasingly critical for operators who need to maintain system certification and avoid costly panel-level upgrades.

The 5100070-02A is a direct, like-for-like replacement for any degraded or failed bus isolator head assembly within the 5100 Series loop architecture. Because it is an original OEM component — not a third-party substitute — it preserves the system’s type-approval certification status, which is a mandatory requirement in regulated industries including offshore oil and gas, maritime classification society compliance, and industrial fire safety standards such as EN 54.

For maintenance teams managing aging 5100 Series installations, a proactive replacement strategy — replacing isolator modules on a fixed interval rather than waiting for fault indication — significantly reduces the risk of an undetected loop fault developing into a full system outage. Given the relatively low unit cost of the 5100070-02A compared to the operational cost of a fire system shutdown or a failed safety audit, maintaining a minimum stock of two to four units per installation is a widely adopted industry practice.

Facilities that have already migrated portions of their fire detection infrastructure to newer Consilium platforms can still maintain the legacy 5100 Series segments in parallel using original spare parts, extending the useful life of the existing installation while a phased upgrade program is executed. This hybrid maintenance approach is both cost-effective and operationally safe when supported by a reliable supply of verified original components.

Support FAQ

Q1: Is the Consilium 5100070-02A compatible with all 5100 Series loop configurations?
A: Yes. The 5100070-02A Bus Isolator Module Head Assembly is designed for use across the Consilium 5100 Series addressable loop platform. It is compatible with standard two-wire loop configurations as deployed in the 5100 Series panel family. If your installation uses a non-standard loop topology, please contact us with your panel model and loop card revision for compatibility confirmation prior to ordering.

Q2: What is the recommended replacement interval for this bus isolator module?
A: Consilium and industry best practice guidelines recommend functional testing of bus isolator modules at every annual inspection. Physical replacement is recommended upon any fault indication, or proactively at 8–10 year intervals in high-humidity or corrosive environments. For marine and offshore installations subject to classification society survey, replacement intervals may be governed by the applicable class rules.

Q3: How is the unit tested and verified before shipment?
A: Each Consilium 5100070-02A unit is inspected for physical integrity, connector condition, and correct part number marking prior to dispatch. Units sourced from verified OEM supply channels are shipped with original packaging where available. A 12-month warranty covers manufacturing defects and verified component failure under normal operating conditions.

Q4: What is your lead time and shipping policy for this spare part?
A: In-stock units are dispatched within 1–3 business days. Worldwide shipping is available with tracking. For urgent maintenance requirements or bulk procurement inquiries, please contact our technical sales team directly to confirm availability and arrange expedited dispatch.
