CELERITY DSVAF100 32/900 ATN CEIA 45-A Original Spare DSV Compatible

Product Overview

CELERITY DSVAF100 32/900 ATN CEIA 45-A Original Spare DSV Compatible: Securing Semiconductor Process System Stability

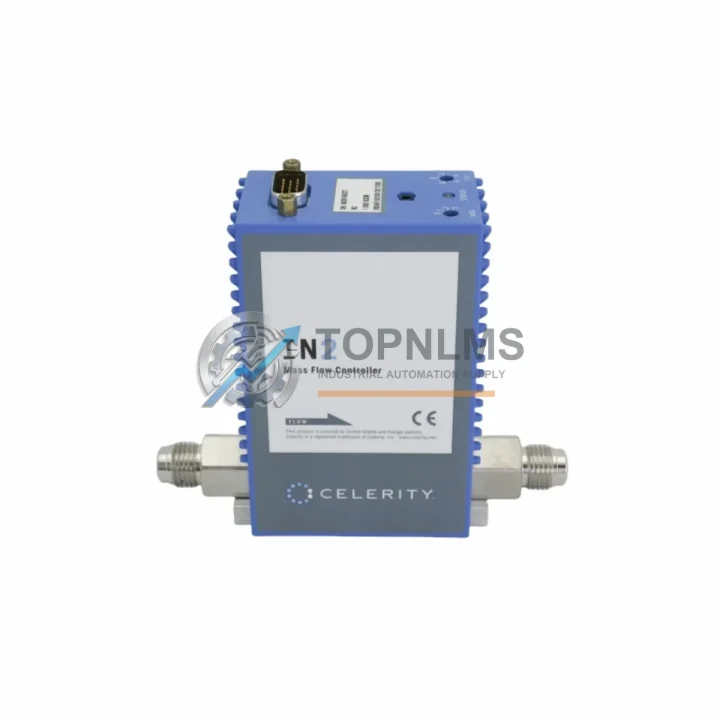

In high-throughput semiconductor fabrication and precision gas delivery environments, mass flow controller (MFC) reliability is non-negotiable. The CELERITY DSVAF100 32/900 ATN CEIA 45-A is an original spare-grade mass flow controller from CELERITY’s proven DSV/DSVAF series — engineered for nitrogen (N₂) and inert gas process lines where flow accuracy, repeatability, and long-term stability directly impact yield and uptime. Whether you are managing a scheduled preventive maintenance cycle, responding to an unplanned process chamber shutdown, or building a strategic spare parts inventory for aging CVD, PVD, or etch tool platforms, this unit delivers the original-specification performance your process demands.

Critical Technical Specs

Preventive Maintenance Strategy for DSV Series Gas Delivery Systems

A mass flow controller failure in a semiconductor process tool rarely occurs in isolation. The DSVAF100 32/900 ATN CEIA 45-A sits within a broader gas delivery network where the health of adjacent components directly determines whether a swap restores full process capability or simply shifts the fault downstream. When scheduling a planned MFC replacement or responding to a flow deviation alarm, experienced process engineers treat the event as an opportunity to audit the entire gas stick and associated control loop.

Begin upstream: inspect the inlet filter and purifier assembly for particulate loading — a clogged inlet filter is a common root cause of apparent MFC drift that is misdiagnosed as sensor failure. Move to the pneumatic shut-off valves (both upstream and downstream of the MFC) and verify actuation response and seat integrity; worn valve seats cause cross-contamination between process steps and should be replaced on the same maintenance window. Check the pressure regulator supplying the gas stick — inlet pressure excursions outside the MFC’s rated range accelerate sensor fatigue and reduce calibration life.

On the electrical side, inspect the MFC interface PCB or gas panel controller card for signs of corrosion, cold solder joints, or relay contact wear. The analog setpoint signal and feedback loop depend on clean ±15 VDC rails; verify the power supply module output under load before commissioning the replacement MFC. If your tool uses a digital MFC communication interface board (DeviceNet, RS-485, or EtherCAT gateway), confirm firmware compatibility with the replacement unit’s protocol version.

Downstream, inspect the process chamber inlet manifold and associated VCR fittings and gaskets — face-seal gaskets should be replaced any time a gas line is broken, and the CEIA 45-A interface is no exception. If the tool has been running extended campaigns, also schedule inspection of the pressure transducer on the process line; drift in the pressure reading can mask flow anomalies that would otherwise trigger early MFC replacement. For tools with integrated mass flow ratio controllers (MFRCs) or gas mixing manifolds, recalibrate the ratio setpoints after any single-channel MFC swap to maintain blend accuracy.

Finally, update your spare parts log to include a second DSVAF100 unit alongside complementary consumables: VCR gaskets, inlet filter elements, and a spare pneumatic valve actuator for the gas stick. Maintaining a minimum one-deep spare for each critical MFC range on your tool platform is the most cost-effective insurance against unplanned downtime in high-mix, low-volume fabs where tool availability directly constrains wafer output.

Strategic Replacement Solutions

The CELERITY DSVAF100 32/900 ATN CEIA 45-A is a direct form-fit-function replacement for aging DSV and DSVAF series units installed on legacy Applied Materials Centura, Endura, and Producer platforms, as well as Lam Research Versys and 2300 series chambers that were originally equipped with CELERITY gas panels. The dual-range 32/900 sccm configuration covers both low-flow precision dosing and higher-flow purge or carrier gas duties within a single body, eliminating the need to stock two separate MFC models for the same gas stick position.

For fabs operating end-of-life tool platforms where OEM support has been discontinued, sourcing original-specification CELERITY spare MFCs is the lowest-risk path to maintaining process qualification. Third-party rebuilt units frequently exhibit calibration drift within the first 500 hours of operation due to non-original sensor elements; original spare units like the DSVAF100 retain factory calibration traceability and are immediately compatible with existing gas panel wiring harnesses, mounting brackets, and purge sequences — reducing swap time to under 30 minutes for a trained technician.

Each unit shipped from TOPNLMS undergoes functional verification including leak check, zero and span calibration confirmation, and valve response testing prior to dispatch. Units are packaged in cleanroom-compatible anti-static bags with nitrogen purge to preserve internal cleanliness. The 12-month warranty covers functional failure under normal operating conditions and includes technical support for installation and commissioning queries.

Support FAQ

Q1: Is the DSVAF100 32/900 ATN CEIA 45-A a new or refurbished unit?
This is an original spare-grade unit — sourced from authorized channels and verified against CELERITY factory specifications. Each unit is functionally tested, leak-checked, and calibration-confirmed before shipment. It is not a rebuilt or remanufactured unit using third-party sensor elements.

Q2: What is covered under the 12-month warranty?
The 12-month warranty covers functional failure of the MFC under normal operating conditions, including flow sensor malfunction, valve actuation failure, and calibration drift beyond ±2% F.S. within the warranty period. Physical damage caused by incorrect installation, over-pressure events, or incompatible gas service is excluded. Warranty claims are supported with return shipping and replacement or repair at TOPNLMS’s discretion.

Q3: How do I verify compatibility with my existing gas panel before ordering?
Confirm the following from your existing MFC label or tool BOM: (1) model number matches DSVAF100 or DSV series, (2) full-scale range is 32 sccm and/or 900 sccm, (3) valve type is ATN (normally closed), (4) fitting interface is CEIA 45-A or equivalent VCR face-seal, and (5) control signal is 0–5 VDC analog. If your tool uses a digital communication protocol variant, contact us with your tool model and gas panel drawing number for confirmation before ordering.

Q4: What is the recommended spare inventory strategy for DSVAF100 units?
For fabs running 2 or more tools equipped with CELERITY DSV series gas panels, we recommend maintaining a minimum of one DSVAF100 32/900 ATN CEIA 45-A per tool platform in on-site spare stock. Given typical MFC service life of 3–5 years under continuous process conditions, a rolling replacement cycle aligned with scheduled PM intervals (every 12–18 months) minimizes the risk of unplanned downtime. Bulk procurement of 3–5 units qualifies for volume pricing — contact us for a quote.
